Passenger Window Switch Test

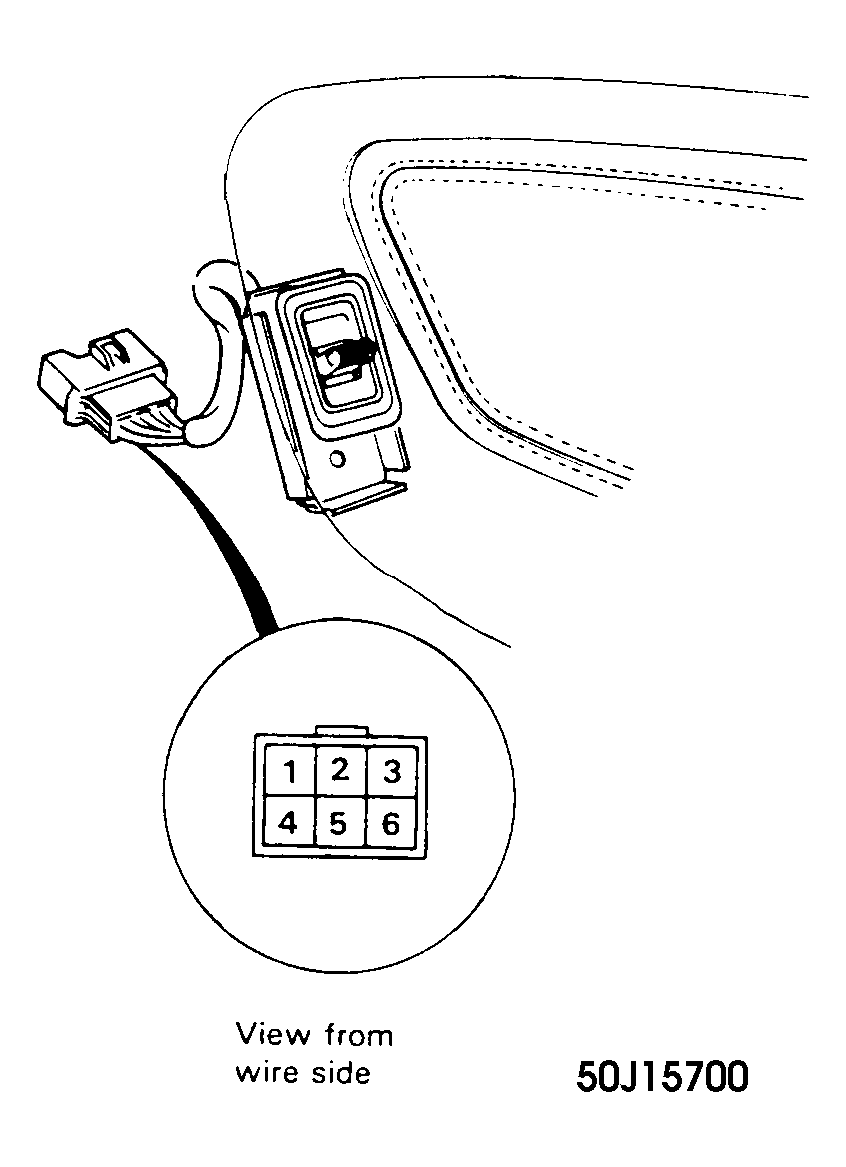

Remove door trim panel. Check for continuity between specified switch terminals with switch in each position. If continuity is not as specified, replace switch. See Fig 1 . See PASSENGER POWER WINDOW SWITCH TEST table.
NOTE:
Right front switch shown; rear switches similar.
PASSENGER POWER WINDOW SWITCH TEST
| Switch Position | Continuity |
|---|---|
| Up | 3-2; 1-4 |
| Off | 1-4; 2-6 |
| Down | 3-1; 2-6 |
