Control Valve Identification

CONTROL VALVE IDENTIFICATION (INTEGRA)

CONTROL VALVE IDENTIFICATION (LEGEND)

Application

Part No.

O.D. In. (mm)

Cut-Off Valve ⁽¹⁾

Control Valve A

56350-PC1-000

.6297-.6299 (15.995-16.0)

Control Valve B

56360-PC1-000

.6299-.6302 (16.0-16.006)

⁽¹⁾	Cut-Off Control Valve A has the I.D. mark "A" on it. Control vale B is the valve with no I.D. mark.

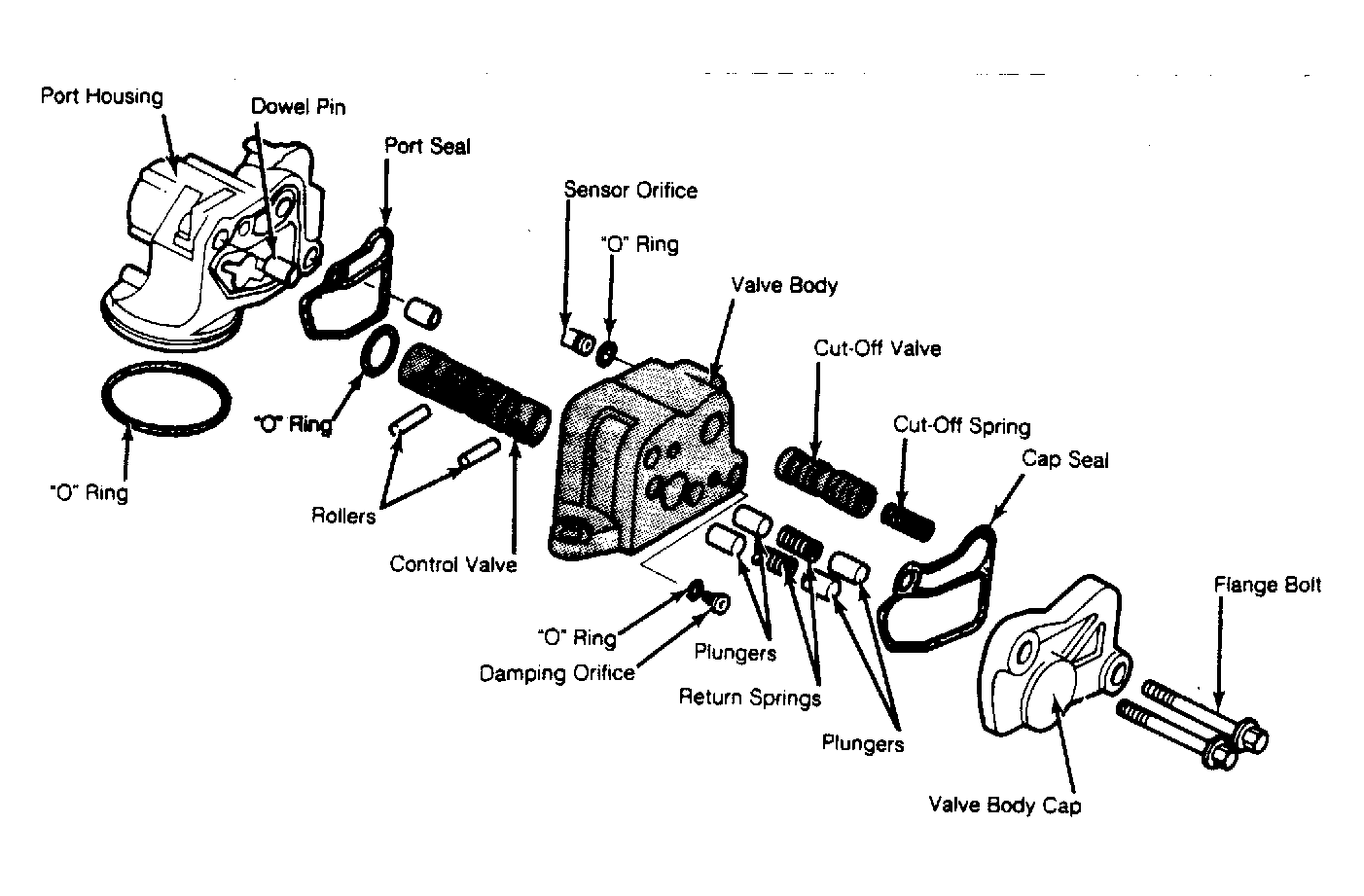

Fig 1: Exploded View of Valve Body Unit (Integra)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

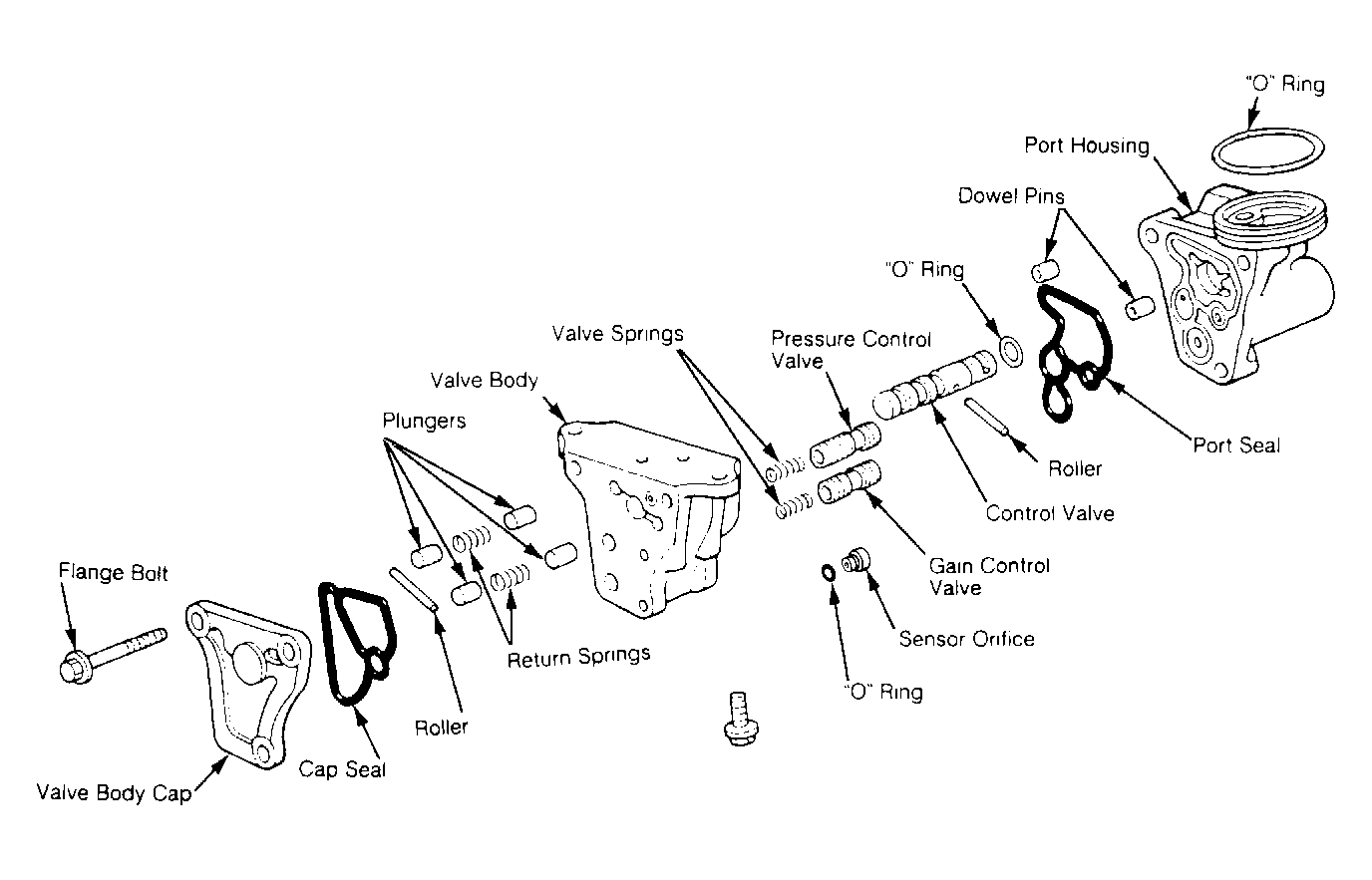

Fig 2: Exploded View of Valve Body Unit (Legend)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

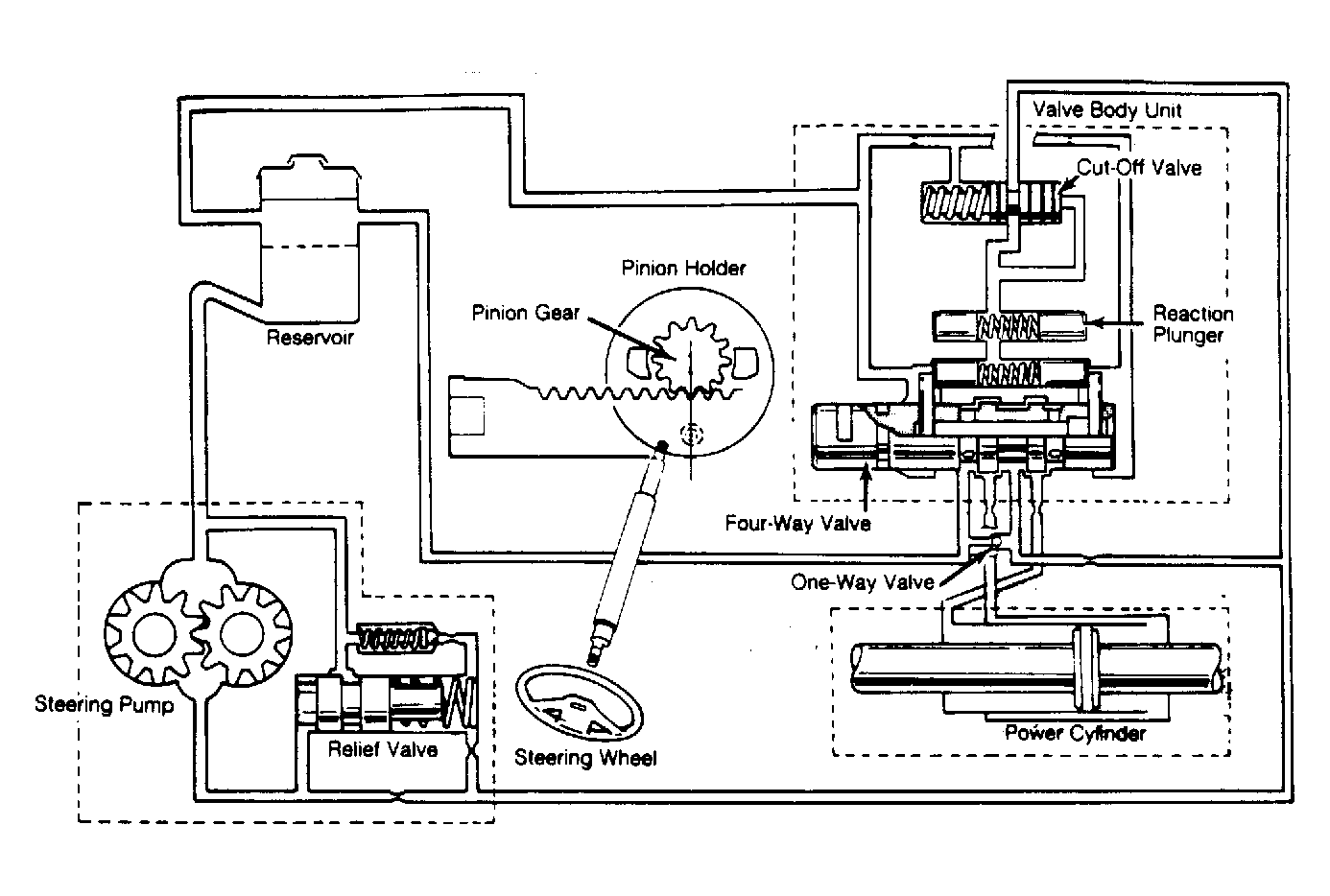

Fig 3: Power Steering Hydraulic Circuit Diagram (Integra)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

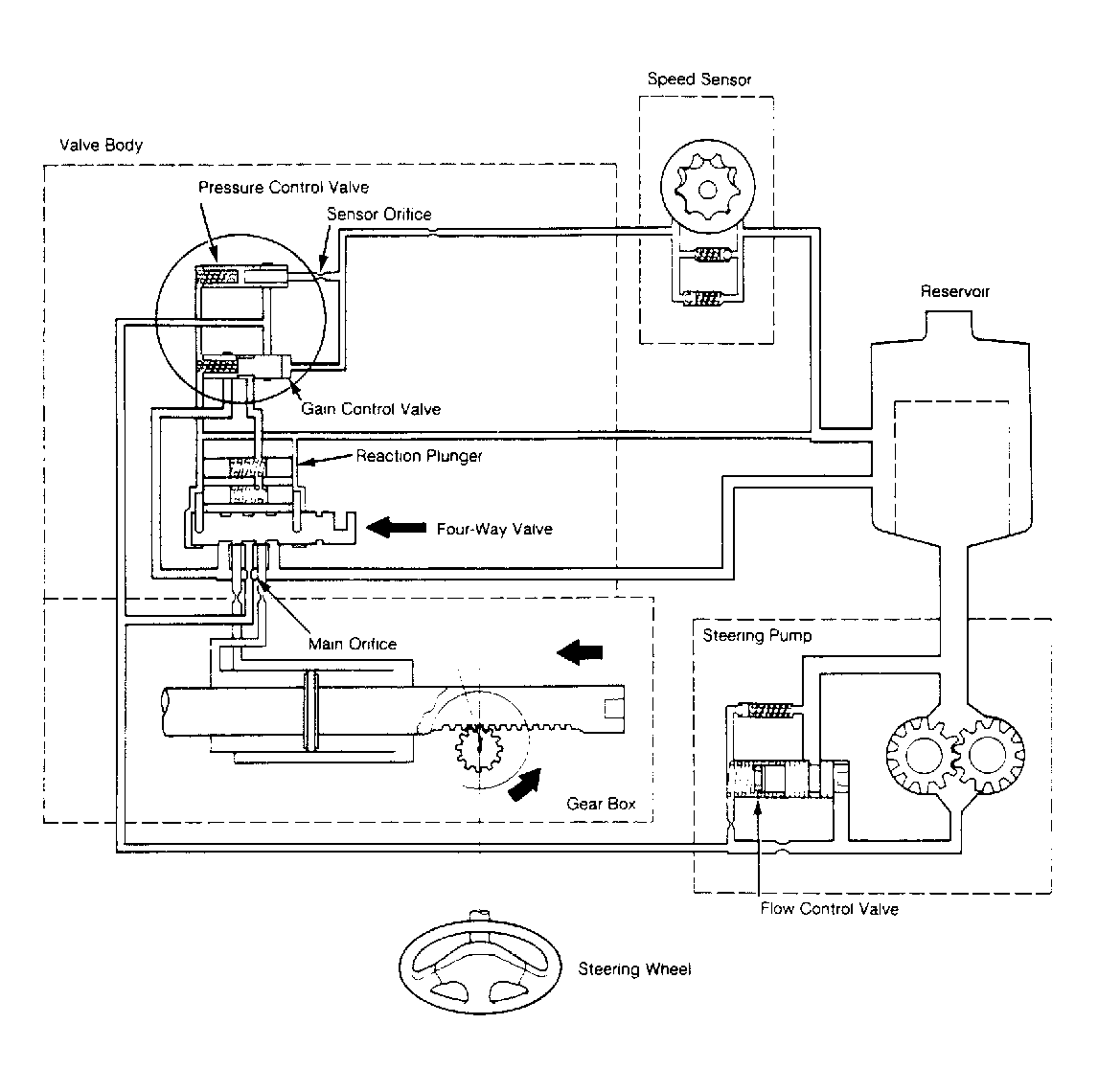

Fig 4: Power Steering Hydraulic Circuit Diagram (Legend)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
