Door Latch Switch Test

  1. Remove the door trim panel. See FRONT DOOR TRIM PANEL  under REMOVAL & INSTALLATION.
  2. Disconnect the 3-pin connector from the switch. See Fig 1 .
  3. Check for continuity between the terminals in each door position. See Fig 2 .

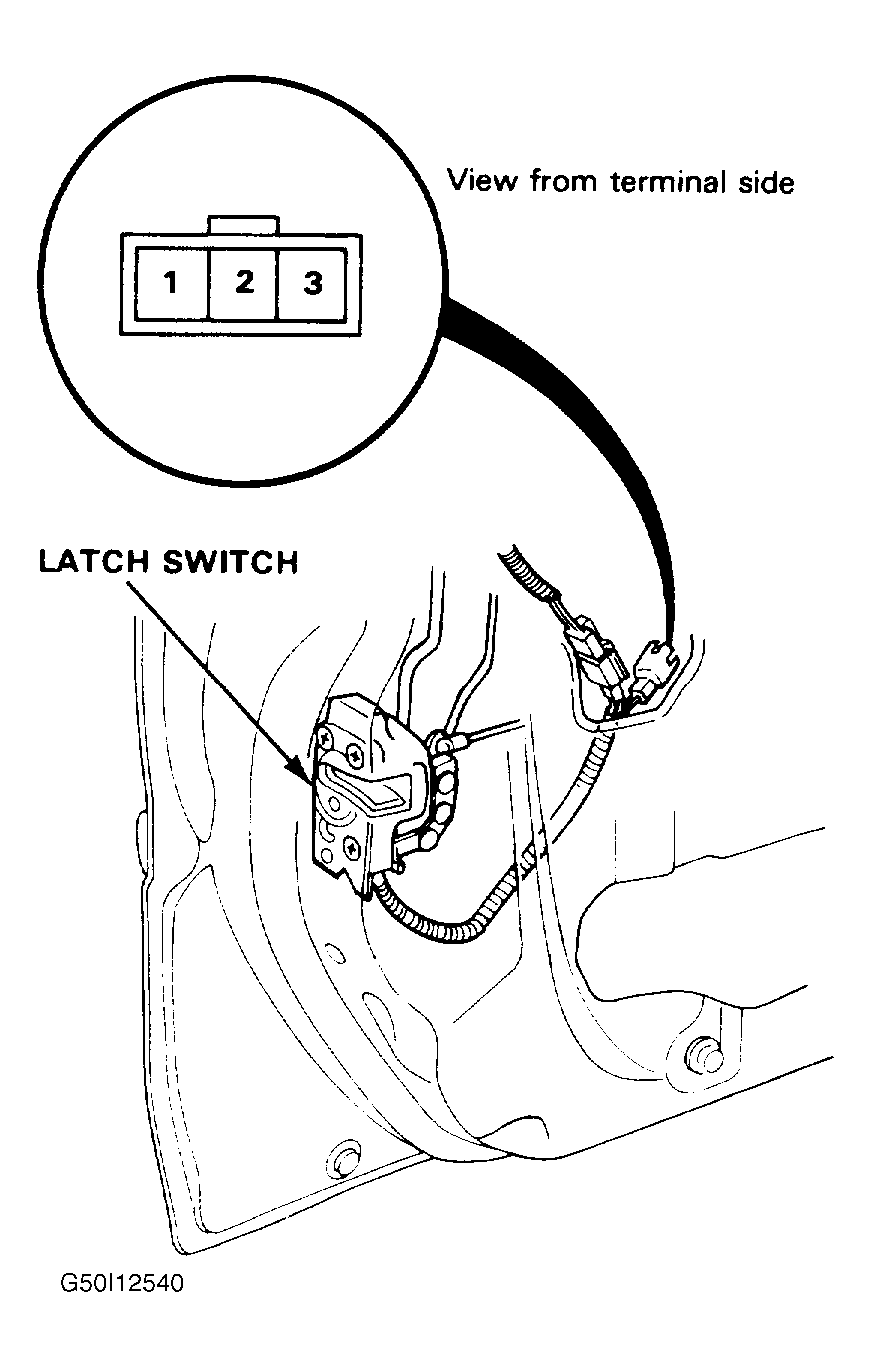

Fig 1: Identifying Door Latch Switch Components
G50I12540Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Testing Door Latch Switch Continuity
G50F12539Courtesy of AMERICAN HONDA MOTOR CO., INC.
