Component Locations

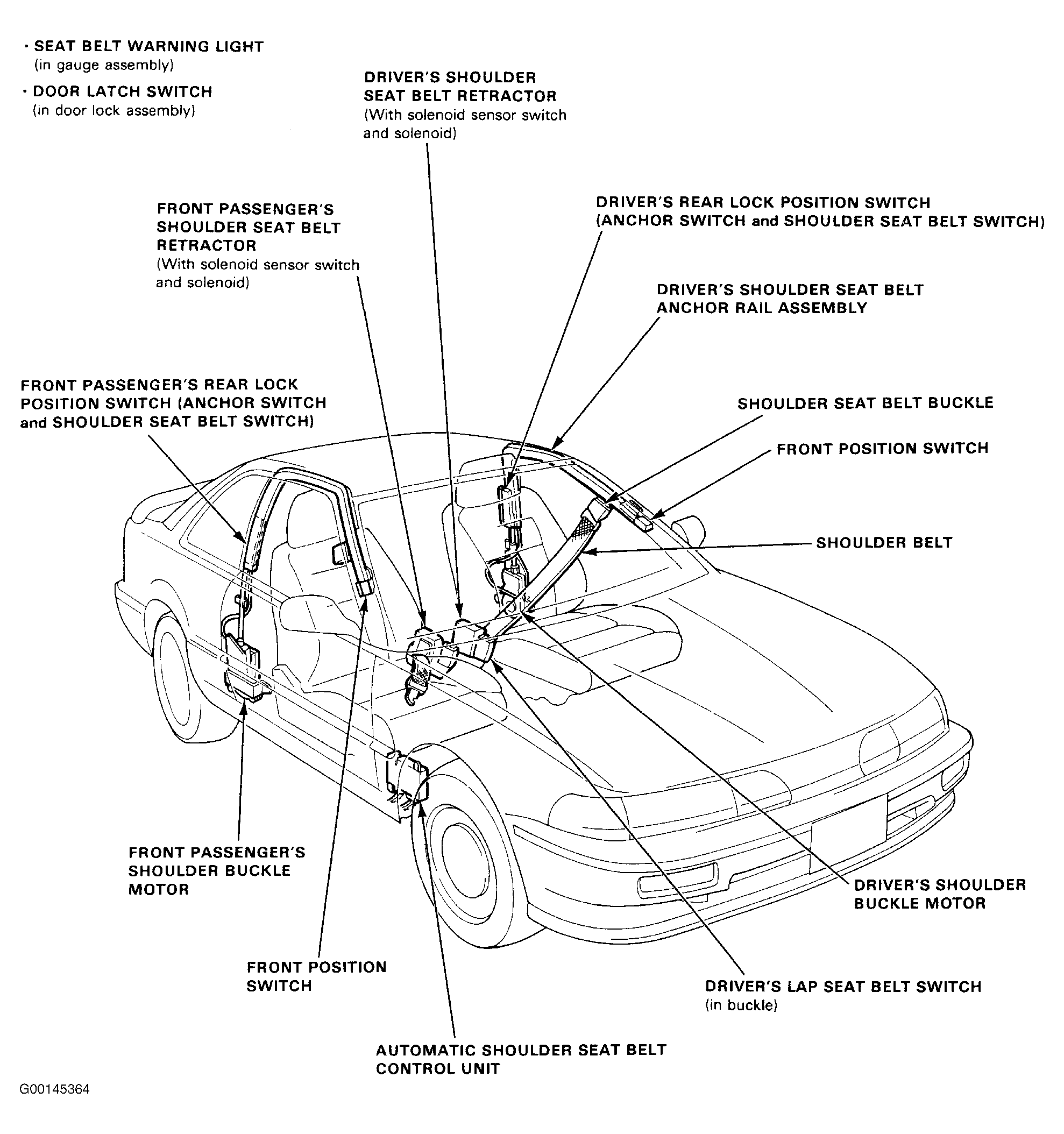

For component locations, refer to the illustration. See Fig 1 .
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Automatic Seat Belt Control Unit | Behind Right Side Of Dash, At Kick Panel. See Fig 1 . |
| Dash Fuse/Relay Block | Below Left Side Of Dash, At Kick Panel |
| Door Latch Switch | In Door Lock Assembly |
| Driver's Door Latch Switch | Rear Of Driver's Door |
| Driver's Shoulder Seat Belt Retractor | Right Side Of Driver's Seat, In Seat Belt Retractor. See Fig 1 . |
| Ignition Switch | Right Side Of Steering Column, Behind Steering Column Covers |
| Junction Connector B (20-ORN) | Behind Left Side Of Dash, Above Kick Panel |
| Junction Connector C (20-YEL) | Below Carpet, Near Left Kick Panel |
| Junction Connector D (20-BLK) (Hatchback, Except Canada RS & LS) | Below Carpet, Near Left Center Pillar |
| Left Automatic Seat Belt Motor (Hatchback) | Next To Rear Seat, Behind Left Quarter Trim Panel |
| Left Automatic Seat Belt Motor (Sedan) | In Left Center Pillar, Behind Center Pillar Lower Trim |
| Left Front End Switch | In Left Front Pillar, Behind Front Pillar Trim |
| Left Shoulder Anchor Switch (Hatchback) | In Front Of Left Quarter Glass, Behind Front Pillar Trim. See Fig 1 . |
| Left Shoulder Anchor Switch (Sedan) | In Upper Part Of Left Center Pillar, Behind Front Pillar Trim. See Fig 1 . |
| Main Fuse Box | Right Rear Corner Of Engine Compartment, On Shock Tower |
| Passenger's Door Latch Switch | Rear Of Right Front Door |
| Right Automatic Seat Belt Motor (Hatchback) | Next To Rear Seat, Behind Right Quarter Trim Panel |
| Right Automatic Seat Belt Motor (Sedan) | In Right Center Pillar, Behind Center Pillar Tower Trim. See Fig 1 . |
| Right Front End Switch | In Right Front Pillar, Behind Front Pillar Trim |
| Right Front Shoulder Seat Belt Retractor | Left Side Of Right Front Seat, In Seat Belt Retractor. See Fig 1 . |
| Right Shoulder Anchor Switch (Hatchback) | In Front Of Right Quarter Glass, Behind Front Pillar Trim |
| Right Shoulder Anchor Switch (Sedan) | In Upper Part Of Right Center Pillar, Behind Front Pillar Trim |
| Seat Belt Warning Light | On Upper Left Side Of Instrument Cluster Gauge Assembly, In Between Trunk Lid Open Indicator & Brake Warning |

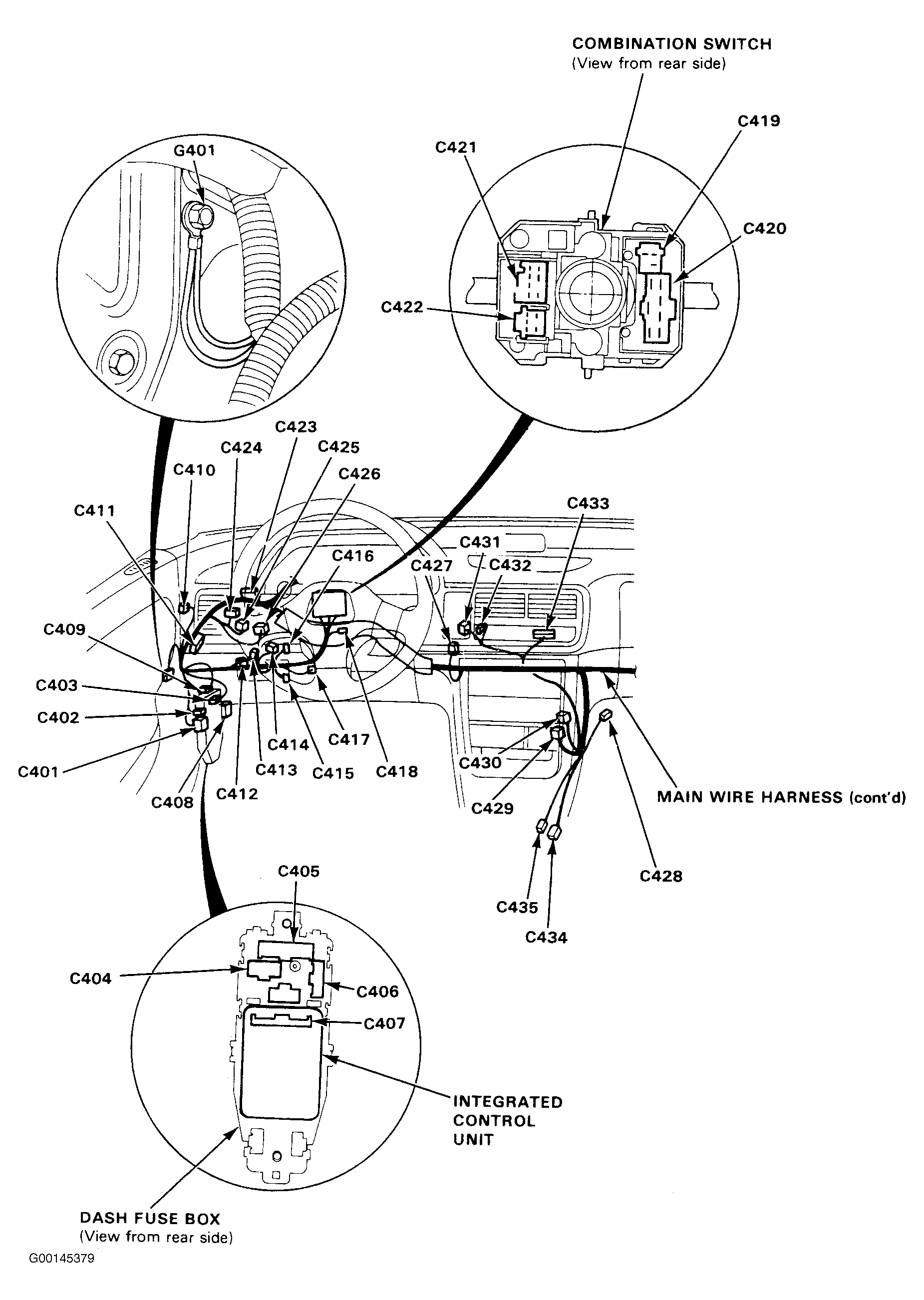

| C408 (14-RED) | Behind Left Side Of Dash, On Dash Fuse Box. See Fig 3 . |
| C412 (5-WHT) | Behind Left Side Of Dash. See Fig 3 . |
| C446 (6-WHT - Without ALB) | Below Right Side Of Dash, Behind Automatic Seat Belt Control Unit |
| C446 (24-PNK - With ALB) | Below Right Side Of Dash, Behind Automatic Seat Belt Control Unit |

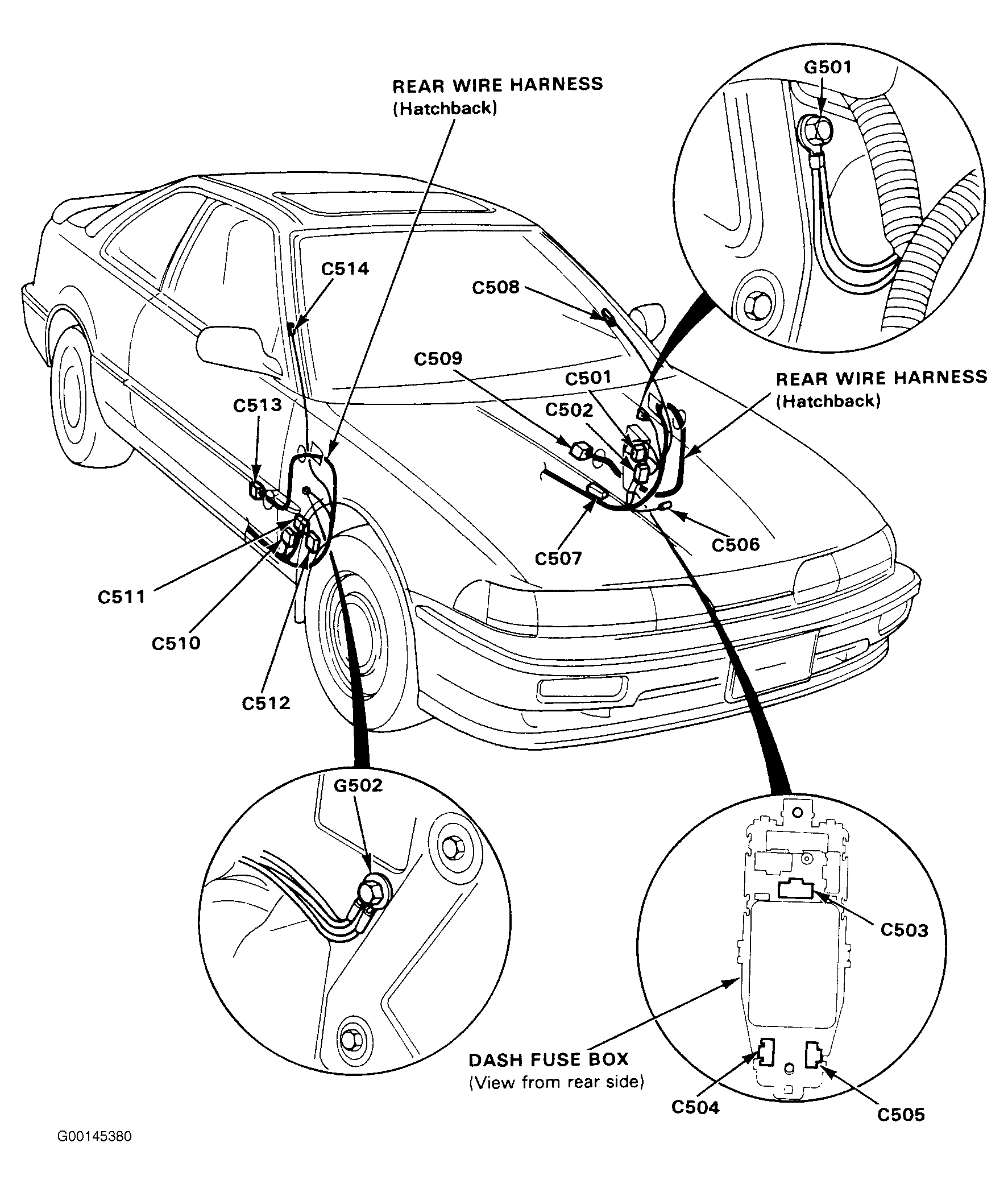

| C509 (6-WHT - RS) | Front Of Left Front Door. See Fig 4 . |
| C509 (12-WHT - GS & LS) | Front Of Left Front Door. See Fig 4 . |
| C514 (6-WHT - RS) | Front Of Right Front Door. See Fig 4 . |
| C514 (12-WHT - GS & LS) | Front Of Right Front Door. See Fig 4 . |

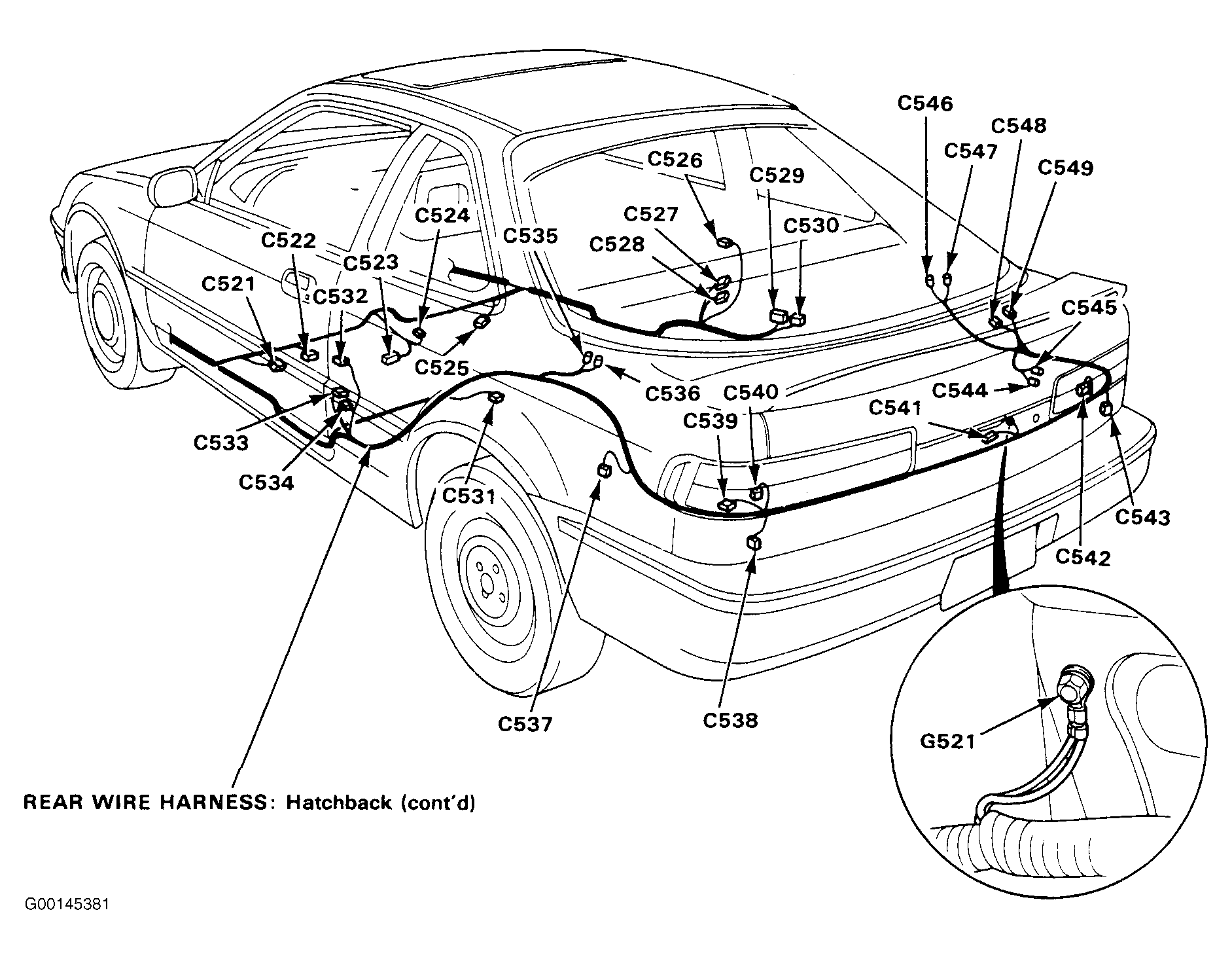

| C523 (6-WHT - USA) | Below Left Front Seat. See Fig 5 . |
| C526 (4-WHT) | Below Right Front Seat. See Fig 5 . |
| C527 (2-WHT) | Next To Rear Seat, Behind Right Quarter Trim Panel. See Fig 5 . |
| C528 (4-WHT) | Next To Rear Seat, Behind Right Quarter Trim Panel. See Fig 5 . |
| C533 (2-WHT) | Next To Rear Seat, Behind Left Quarter Trim Panel. See Fig 5 . |
| C534 (4-WHT) | Next To Rear Seat, Behind Left Quarter Trim Panel. See Fig 5 . |

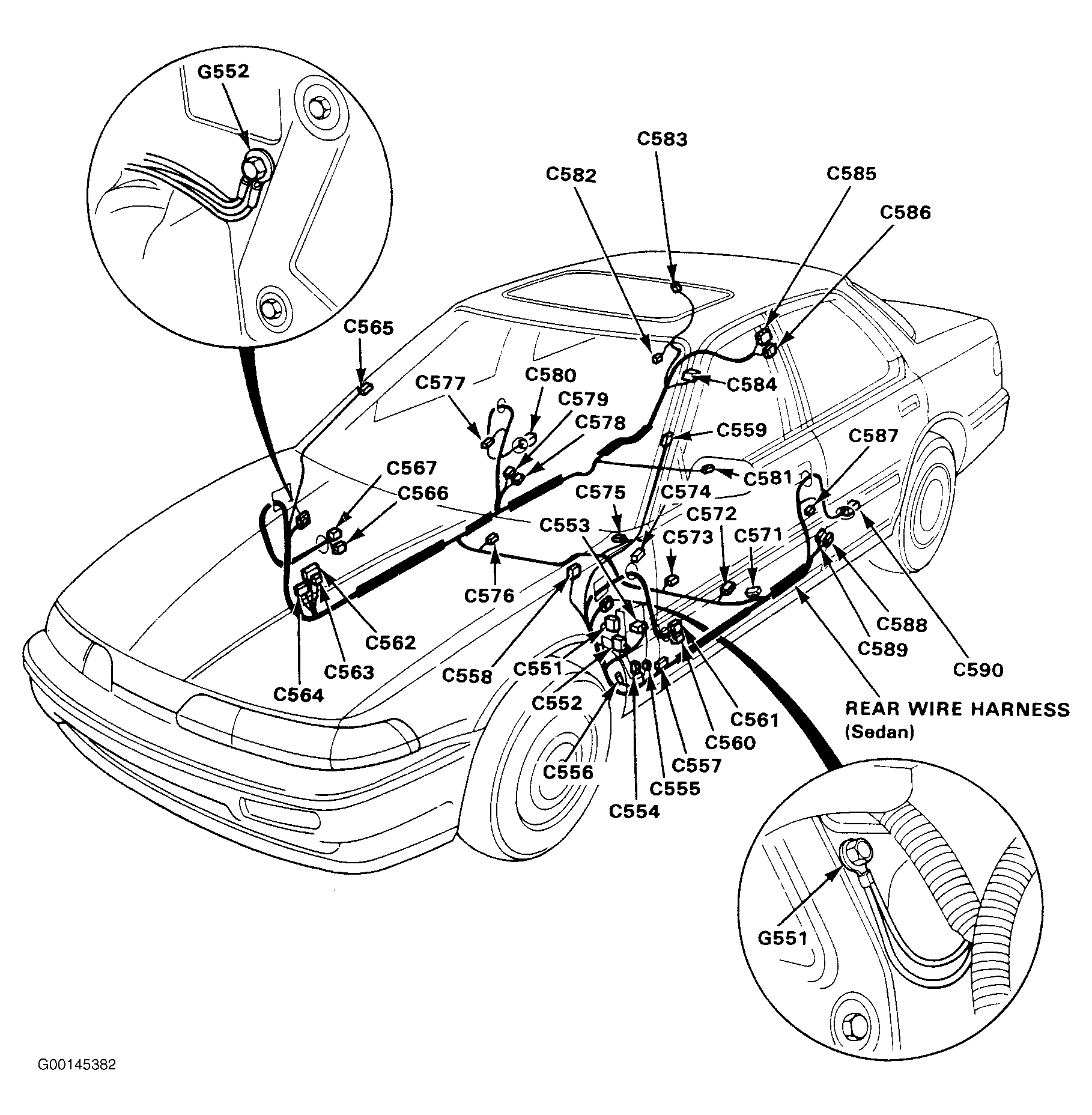

| C560 (6-WHT - RS) | Front Of Left Front Door. See Fig 6 . |
| C560 (12-WHT - GS & LS) | Front Of Left Front Door. See Fig 6 . |
| C566 (6-WHT - RS) | Front Of Right Front Door. See Fig 6 . |
| C566 (12-WHT - GS & LS) | Front Of Right Front Door. See Fig 6 . |
| C574 (6-WHT - USA) | Below Left Front Seat. See Fig 6 . |
| C577 (4-WHT) | Below Right Front Seat. See Fig 6 . |
| C578 (2-WHT) | In Right Center Pillar, Behind Center Pillar Lower Trim. See Fig 6 . |
| C579 (4-WHT) | In Right Center Pillar, Behind Center Pillar Lower Trim. See Fig 6 . |
| C588 (2-WHT) | In Left Center Pillar, Behind Center Pillar Lower Trim. See Fig 6 . |
| C589 (4-WHT) | In Left Center Pillar, Behind Center Pillar Lower Trim. See Fig 6 . |
| C705 (23-BLU) | Behind Left Side Of Dash, On Dash Fuse Block |
| C712 (7-GRN) | Rear Of Gauge Assembly |
| C714 (10-GRY) | Rear Of Gauge Assembly |

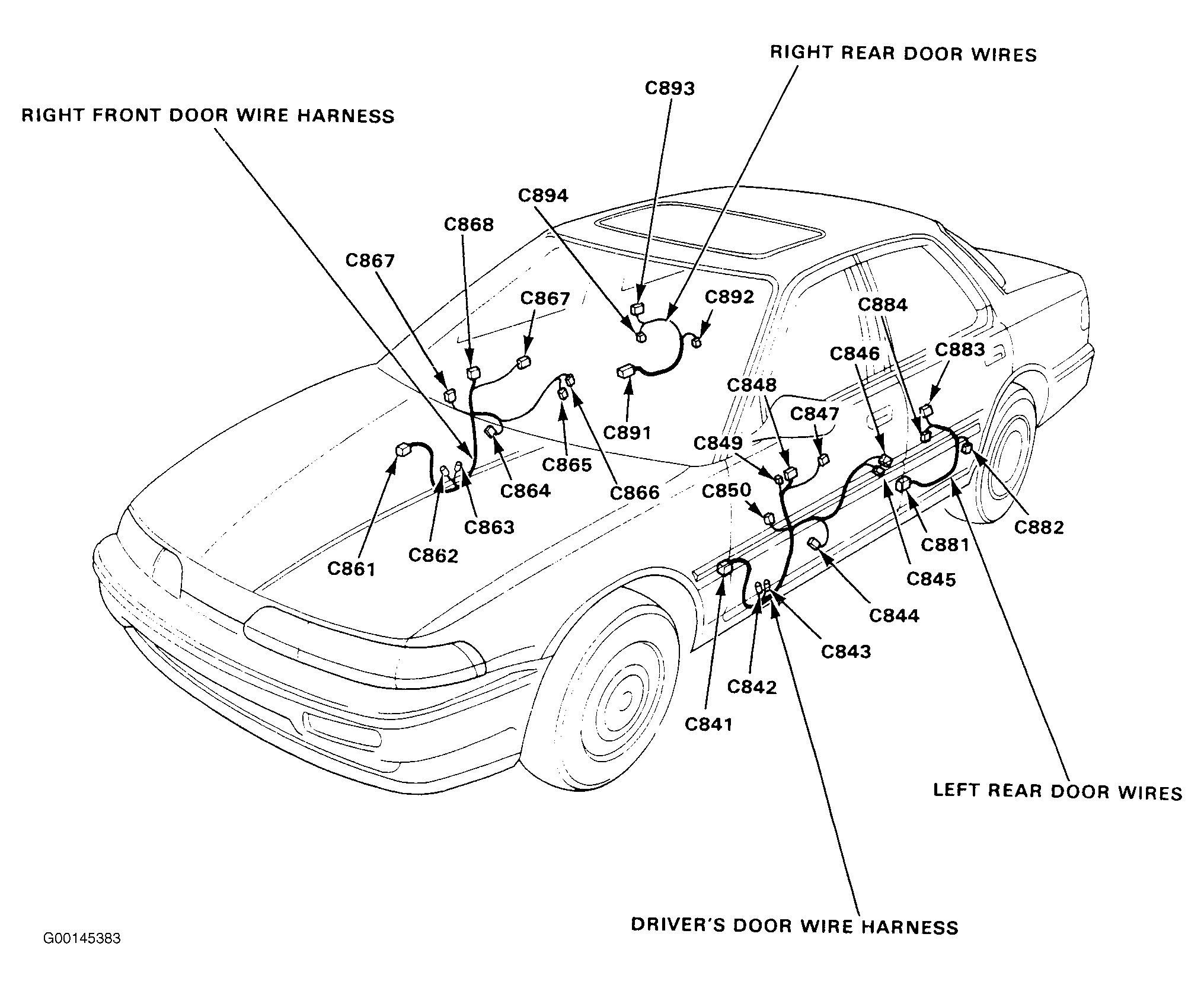

| C845 (3-WHT) | Rear Of Left Front Door, Behind Door Panel. See Fig 7 . |
| C867 (3-WHT) | Rear Of Right Front Door, Behind Door Panel. See Fig 7 . |
| G502 | Below Right Side Of Dash, Above Kick Panel. See Fig 4 . |
| G552 | Behind Right Side Of Dash, Above Kick Panel. See Fig 6 . |
