Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location |
|---|---|
| A/C Diode | On right front corner of engine compartment. |
| A/C Thermostat | Behind center console, on evaporator core housing. |
| Blower Motor Resistor | Behind glove box, on top of blower motor. |
| Chime Module | Behind center of dash. |

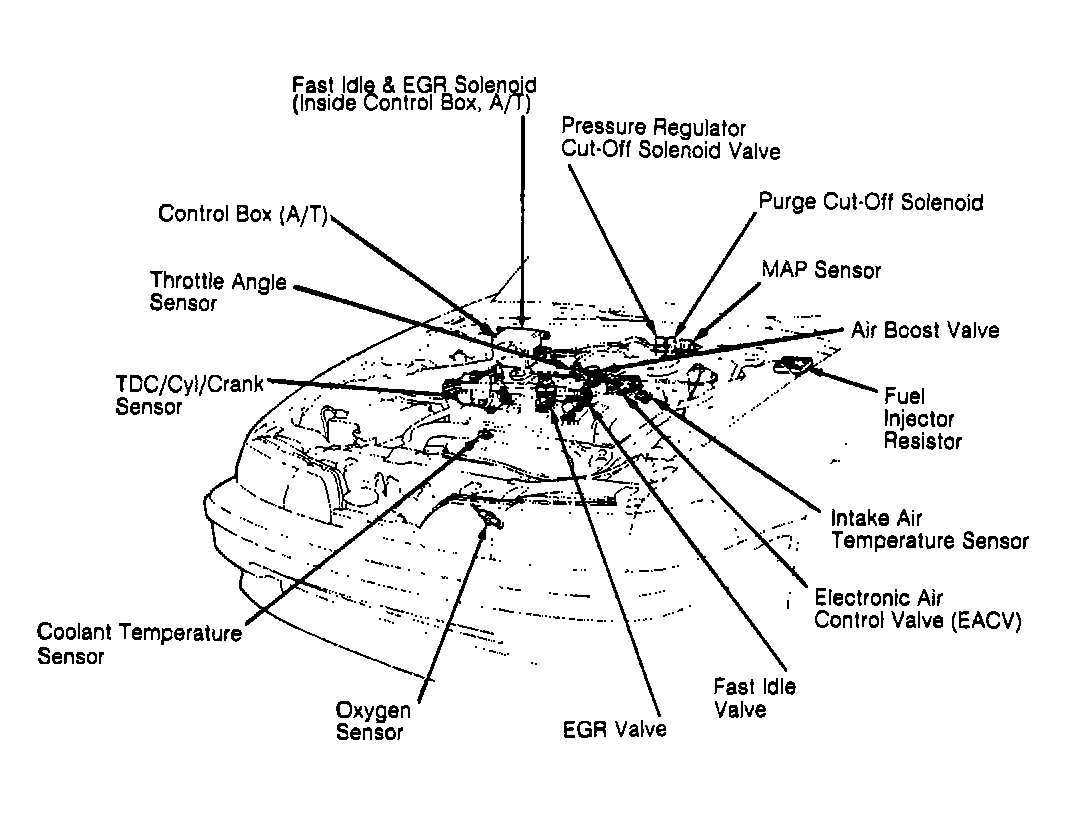

| Control Box (A/T) | On right side of firewall (includes EGR and fast idle solenoid). See Figure . |
| Fuel Injector Resistor | In left rear corner of engine compartment. See Figure . |
| Heater Function Control Amplifier | Under center of dash. |
