Low Fuel Warning Light
- Park car on level ground.
- Drain fuel tank into an approved container. Then install the drain bolt with a new washer.
- Add less than 2.9 Gal. (11 liters or 2.4 Imp. Gal.) of fuel and turn the ignition switch on. The low fuel warning light should come on within 4 minutes.
- Then add one more gallon of fuel (approx. 4 L or 0.9 Imp. Gal.). The light should go out with 4 minutes.

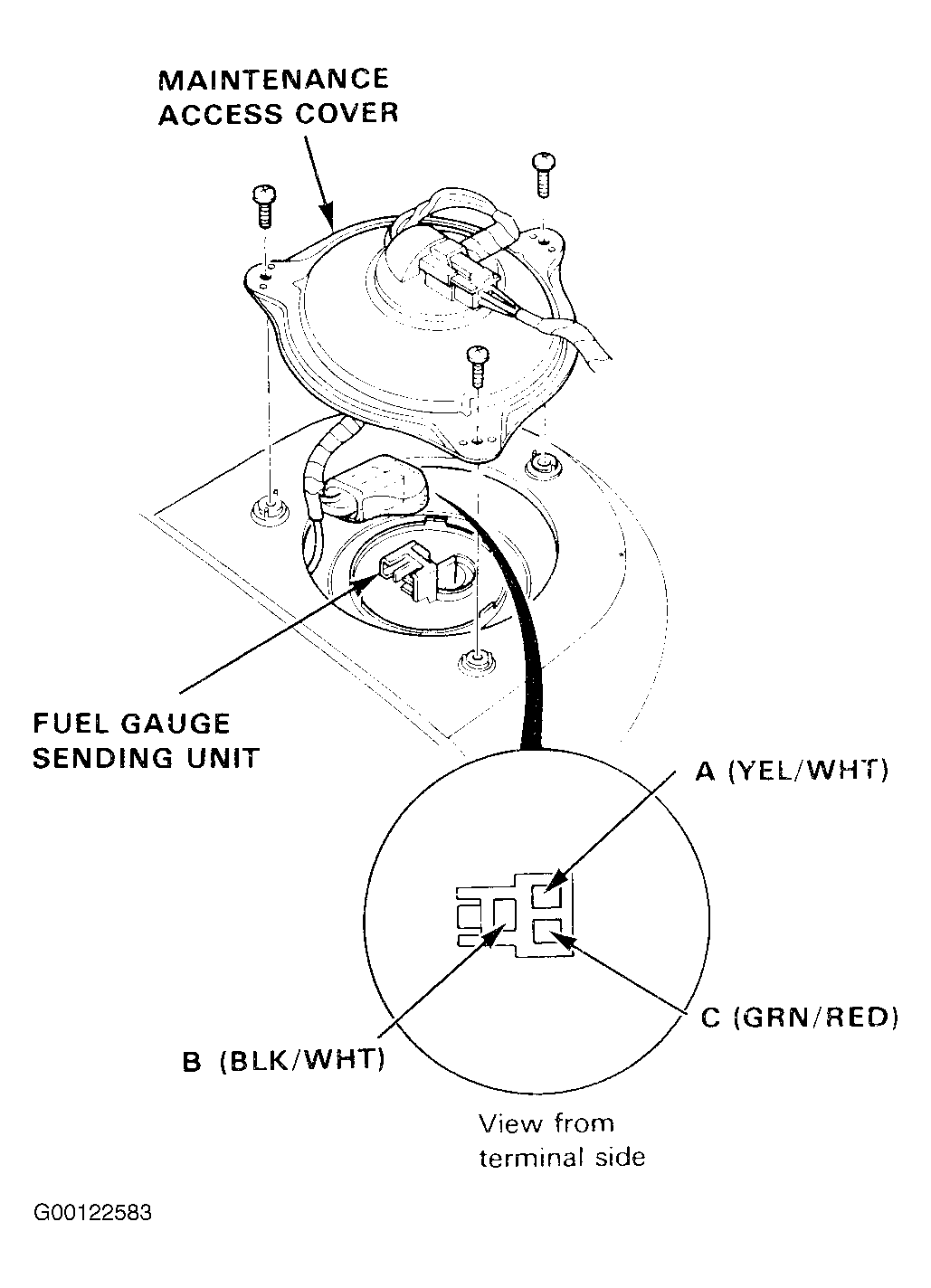

- If the warning light did not come on in step 3, remove the maintenance access cover and disconnect the 3-pin connector from the fuel gauge sending unit. Connect the C (GRN/RED) terminal to the B (BLK/WHT) terminal with a jumper wire. See Fig 1 .
- If the light comes on, the problem is either the sending unit or its ground.
- If the light does not come on, the problem is an open in the GRN/RED wire to the gauge assembly, no power to the gauge or bad bulb.
CAUTION:
Do not smoke while working on fuel system. Keep open flame away from work area. Drain fuel only into an approved container.
