Oil Pressure Warning Flasher System

For oil pressure warning flasher system diagnosis, see Fig 1 and Fig 2 .

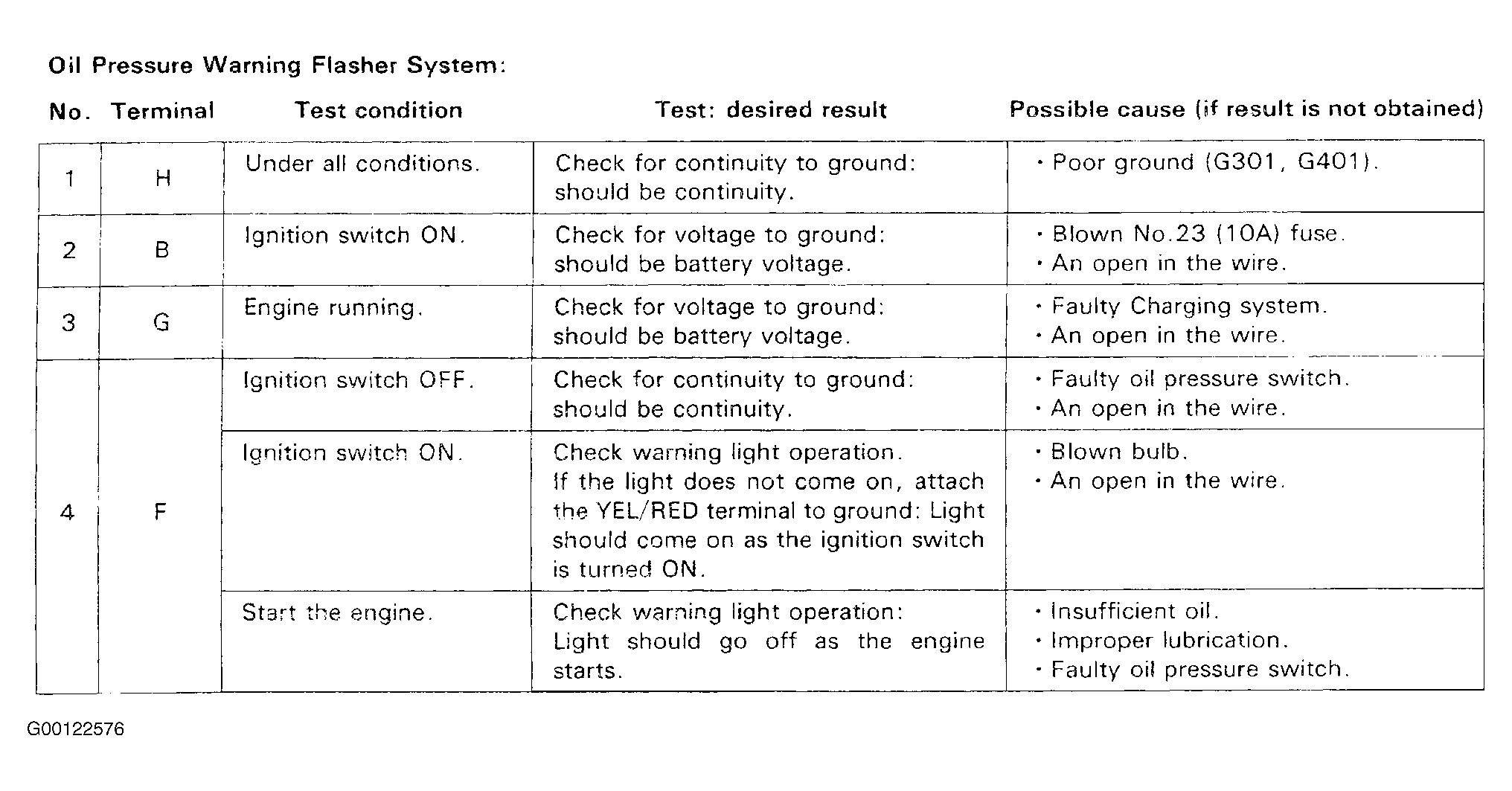

Fig 1: Oil Pressure Warning Flasher System Input Test (1990)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

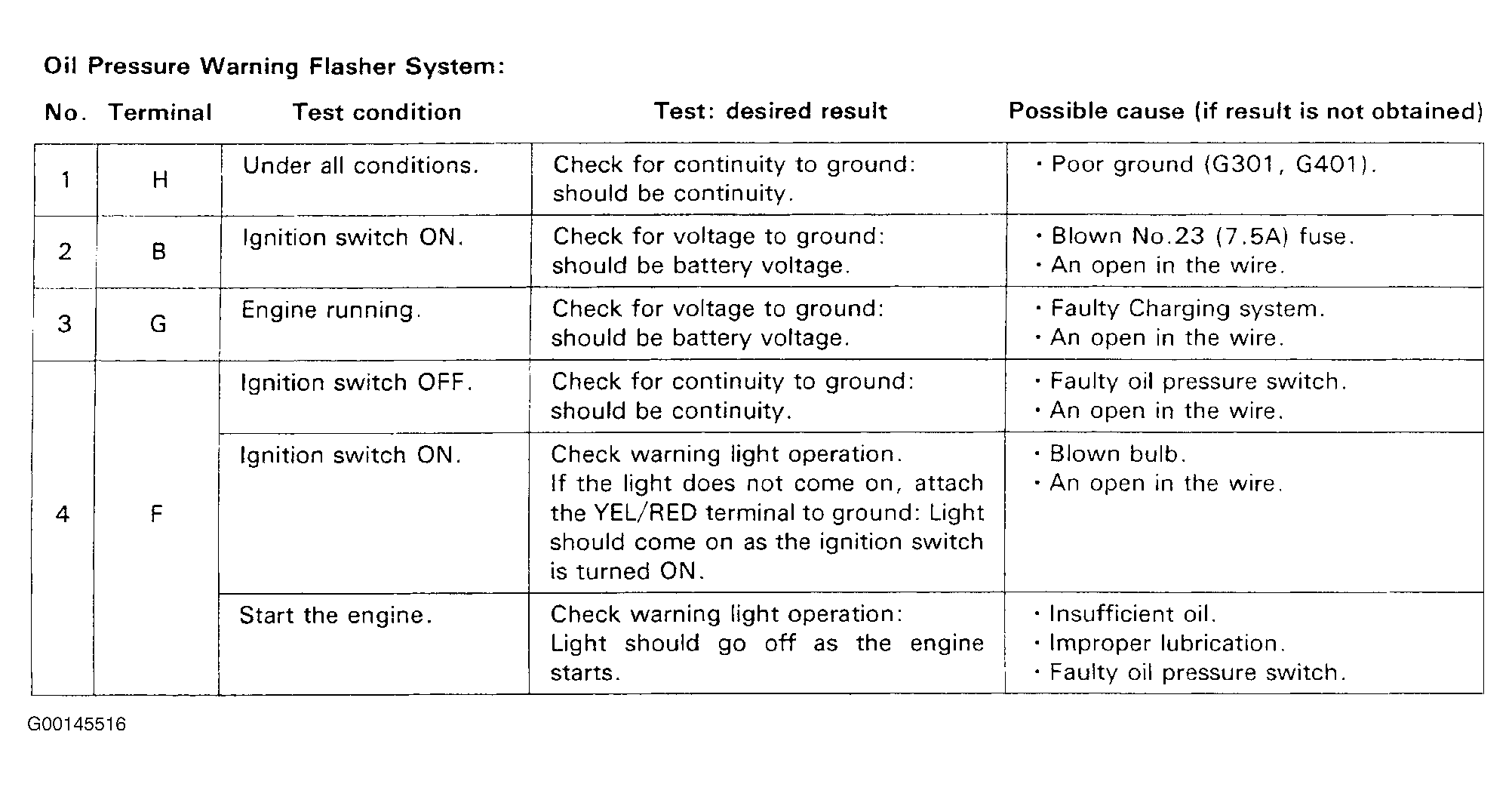

Fig 2: Oil Pressure Warning Flasher System Input Test (1991)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
