Component Locations

NOTE: For additional component locations, refer to illustrations. See Fig 1 and Fig 2 .
COMPONENT LOCATIONS

Component Location
Brake Fluid Level Switch In Master Cylinder Reservoir Cap. See Figure .
Chime Module Behind Center Of Dash. On Horizontal Brace.See Figure .
Engine Compartment Fuse/Relay Block Right Rear Corner On Strut Tower, See Fig 1 .
Passenger Compartment Fuse/Relay Block Left Kick Panel, See Fig 2 .
Integrated Control Unit Under Left Side Of Dash, On Fuse/Relay Lock, See Fig 2 .

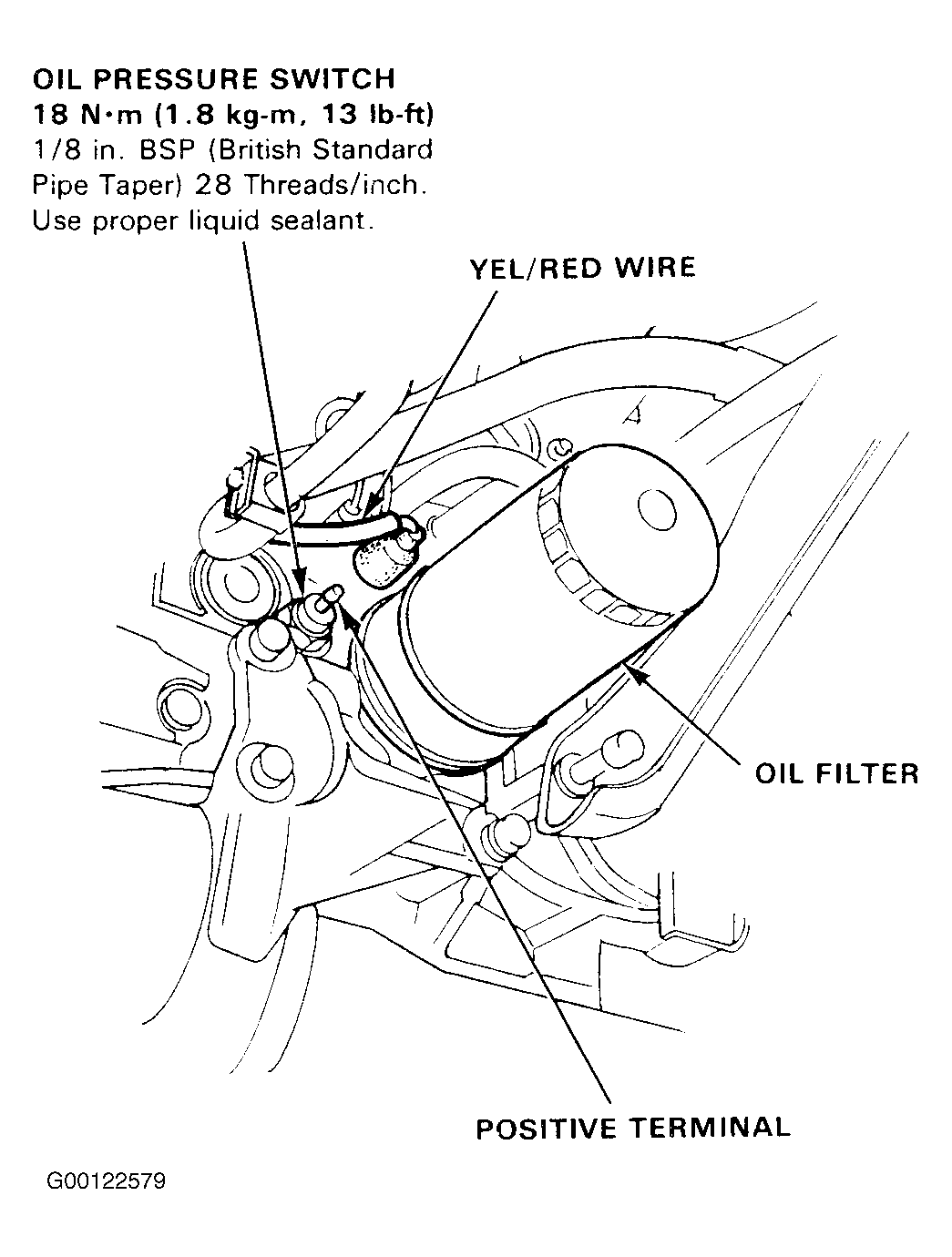

Oil Pressure Switch Near Oil Filter. See Figure .

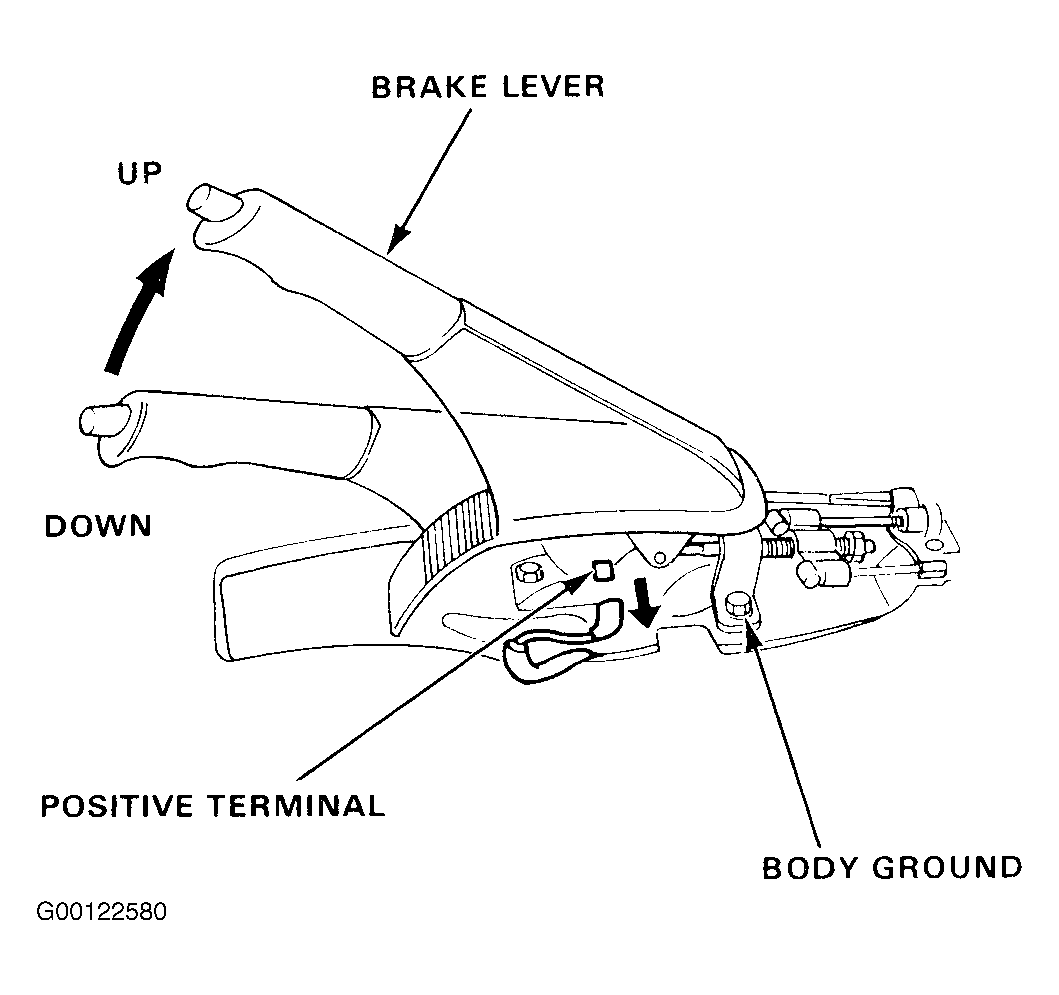

Parking Brake Switch At Base Of Parking Brake Lever.See Figure .
Seat Belt Switch At Base Of Driver's Seat Belt Buckle.
G401 Behind Left Side Of Dash, Above Kick Panel
Fig 1: Component Locations (1 Of 2)
G91D09568
Fig 2: Component Locations (2 Of 2)
G91B09572
