Input Tests: Notes

Remove left panel cover and dash fuse box, then disconnect the 12-pin connector from the integrated control unit. Remove the integrated control unit from the dash fuse box. See Fig 1 .

Make the following input tests at he harness pins. If all tests prove OK, yet the system still fails to work, replace the control unit.

NOTE: Several different wires have the same color. They have been given a number suffix to distinguish them (for example BLU/WHT1 and BLU/WHT2 are not the same). Do not disconnect all of the connectors on the dash fuse box except the integrated control unit.

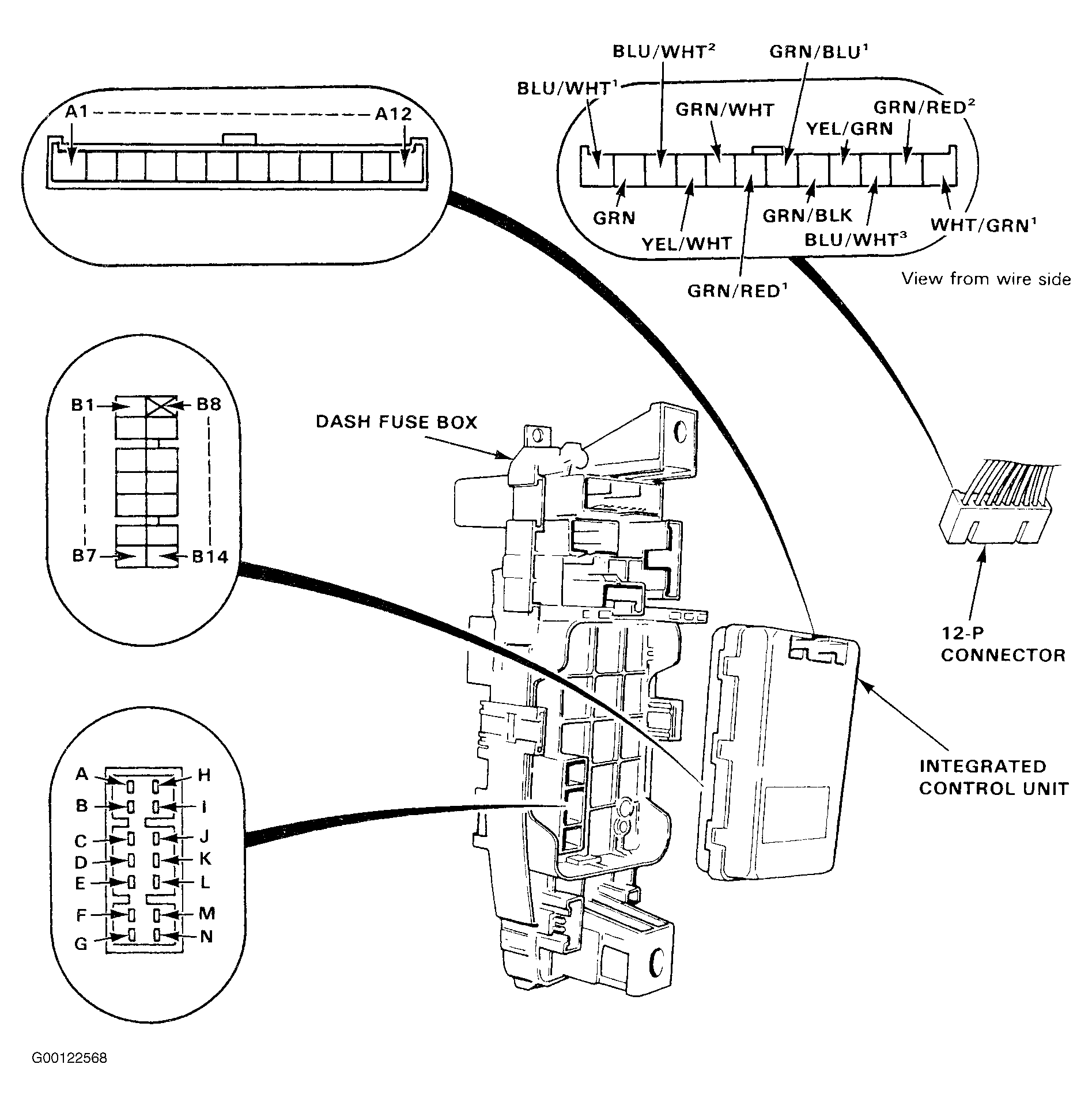

Fig 1: Locating & Identifying Integrated Control Unit & Connectors
G00122568Courtesy of AMERICAN HONDA MOTOR CO., INC.
