Ignition Key Switch

  1. Remove the dashboard lower panel and left knee bolster, then disconnect the 5-pin connector from the main wire harness. See Fig 1 and Fig 2 .
  2. There should be continuity between the BLU/WHT and WHT/GRN terminals when the ignition switch is turned from "I" to "O" position. There should be no continuity when the ignition key is removed.

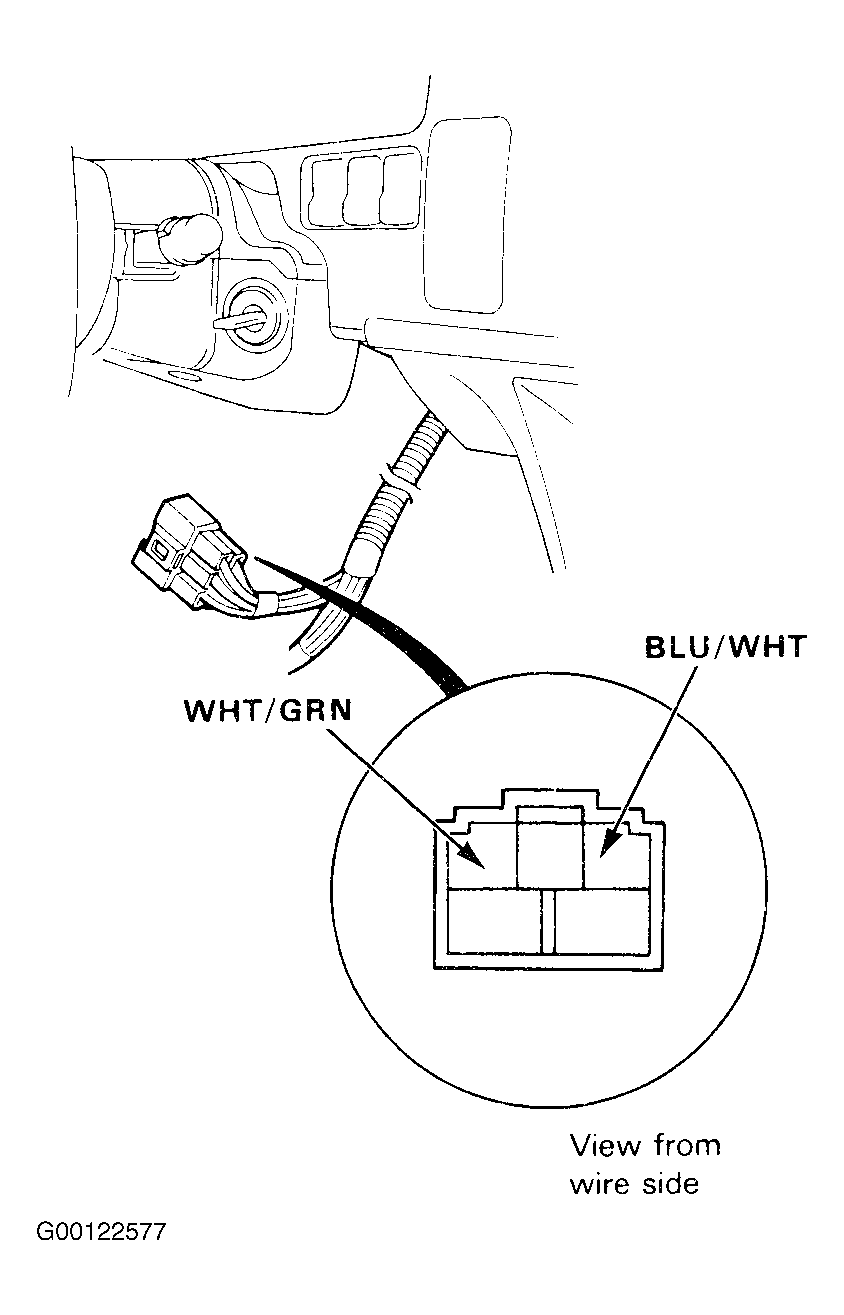

Fig 1: Locating & Identifying Ignition Key Switch 5-Pin Connector (1990)
G00122577Courtesy of AMERICAN HONDA MOTOR CO., INC.

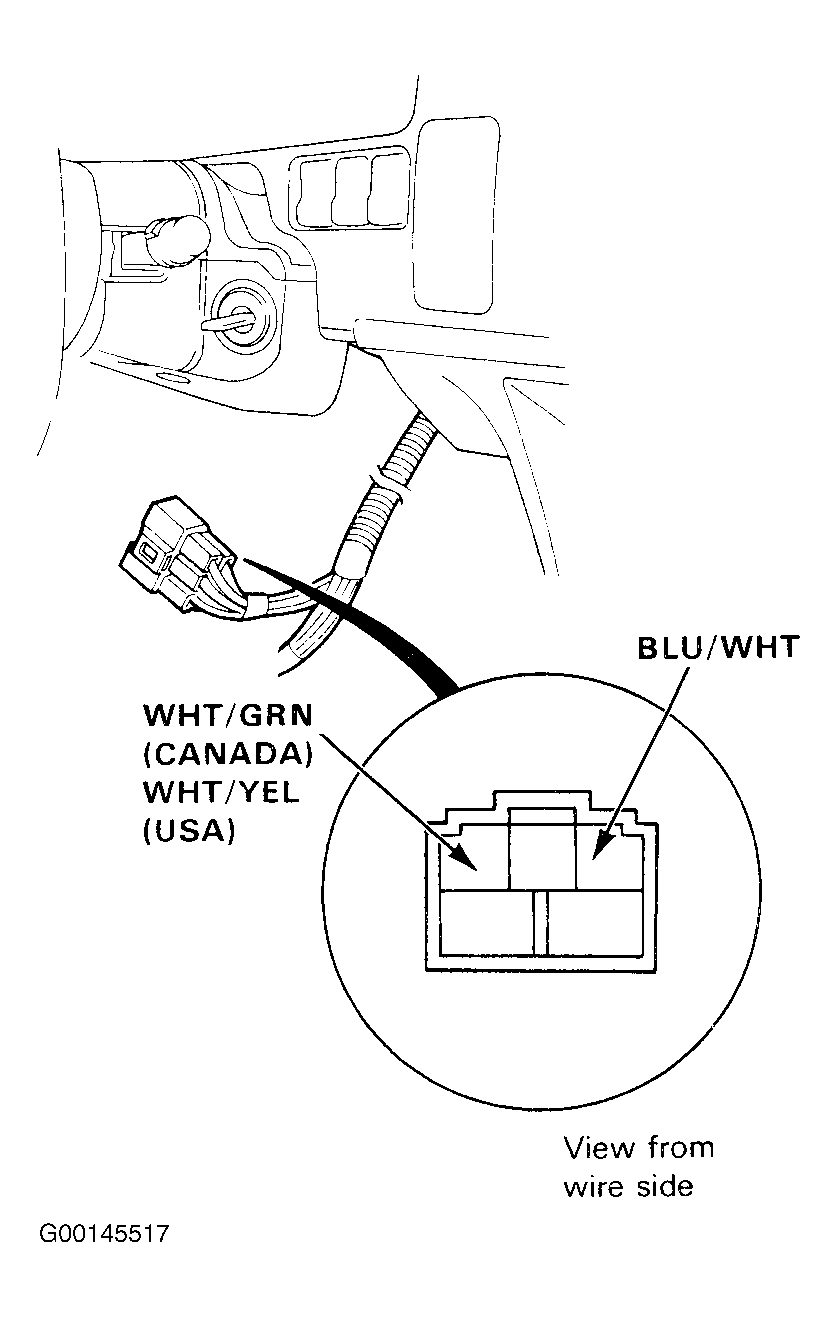

Fig 2: Locating & Identifying Ignition Key Switch 5-Pin Connector (1991)
G00145517Courtesy of AMERICAN HONDA MOTOR CO., INC.
