Light-On Warning System

For lights-on warning system diagnosis, see Fig 1 and Fig 2 .

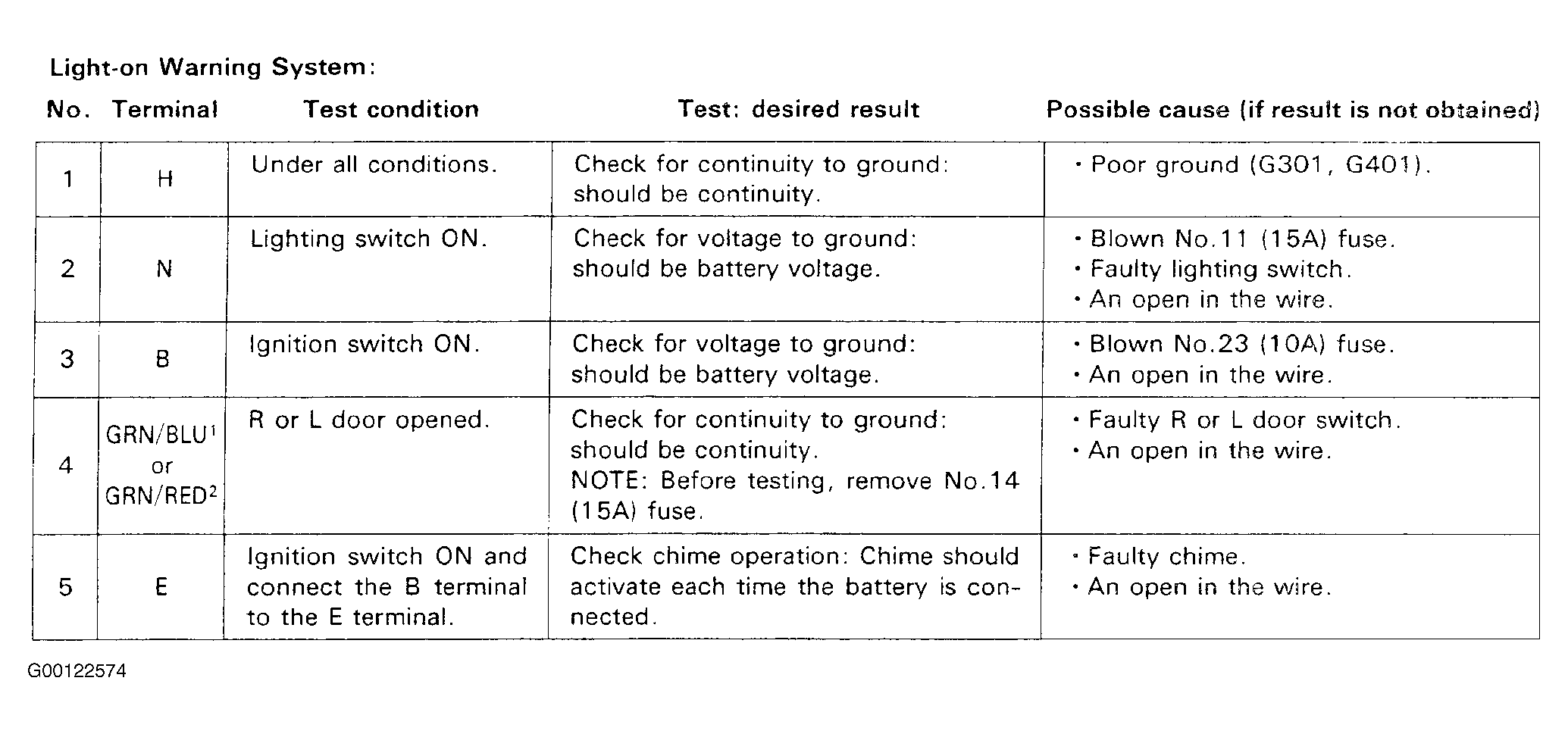

Fig 1: Light-On Warning System Input Test (1990)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

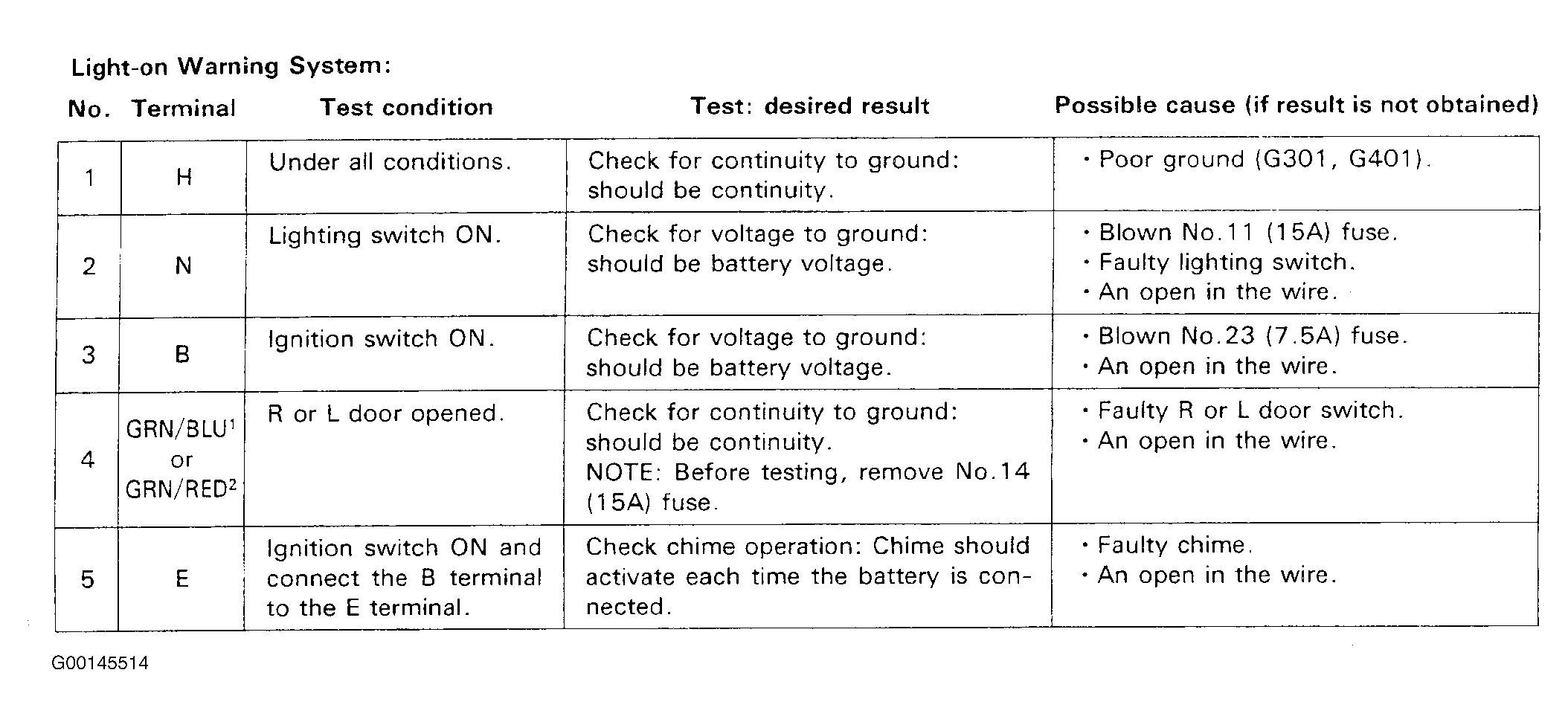

Fig 2: Light-On Warning System Input Test (1991)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
