Brake Warning System

For brake warning system diagnosis, see Fig 1 and Fig 2 .

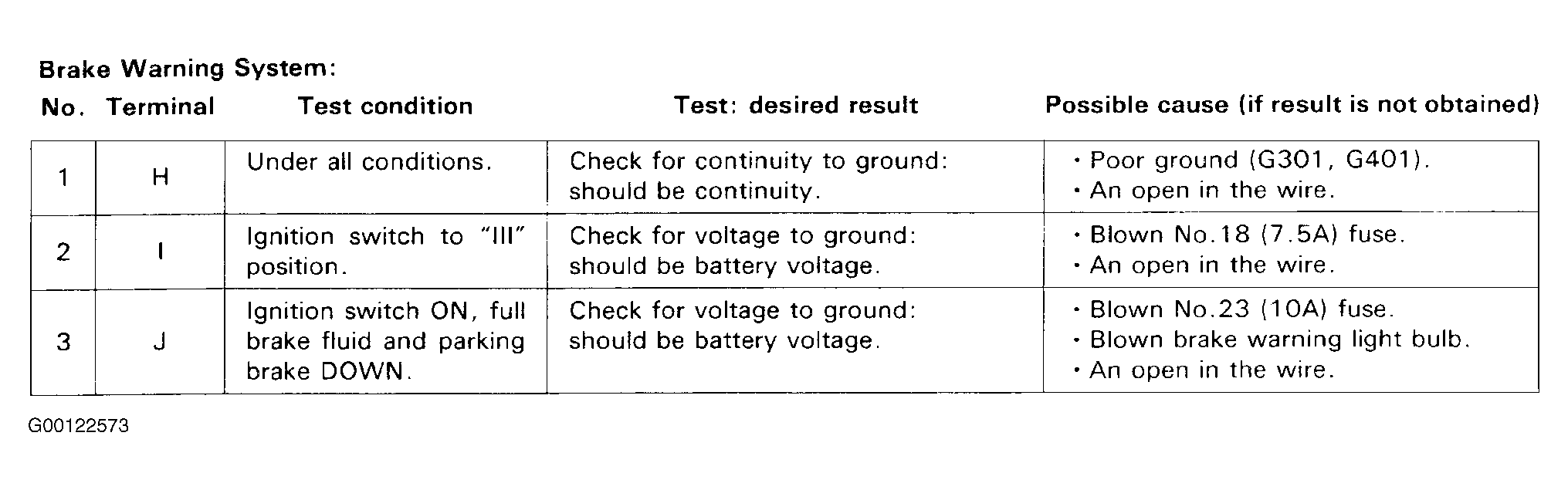

Fig 1: Brake Warning System Input Test (1990)

Courtesy of AMERICAN HONDA MOTOR CO., INC.

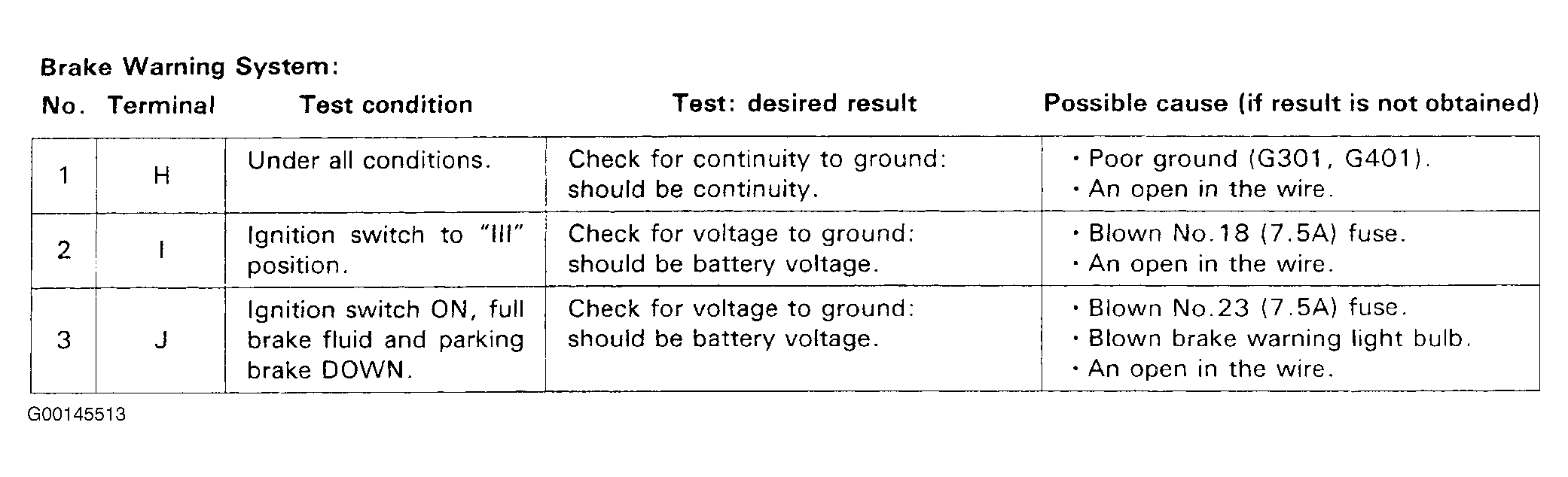

Fig 2: Brake Warning System Input Test (1991)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
