Key-On Warning System

WARNING: This page is about a different car, the 1990 Acura Legend. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For connector terminal identification, see Figure. For input test, see Fig 1.

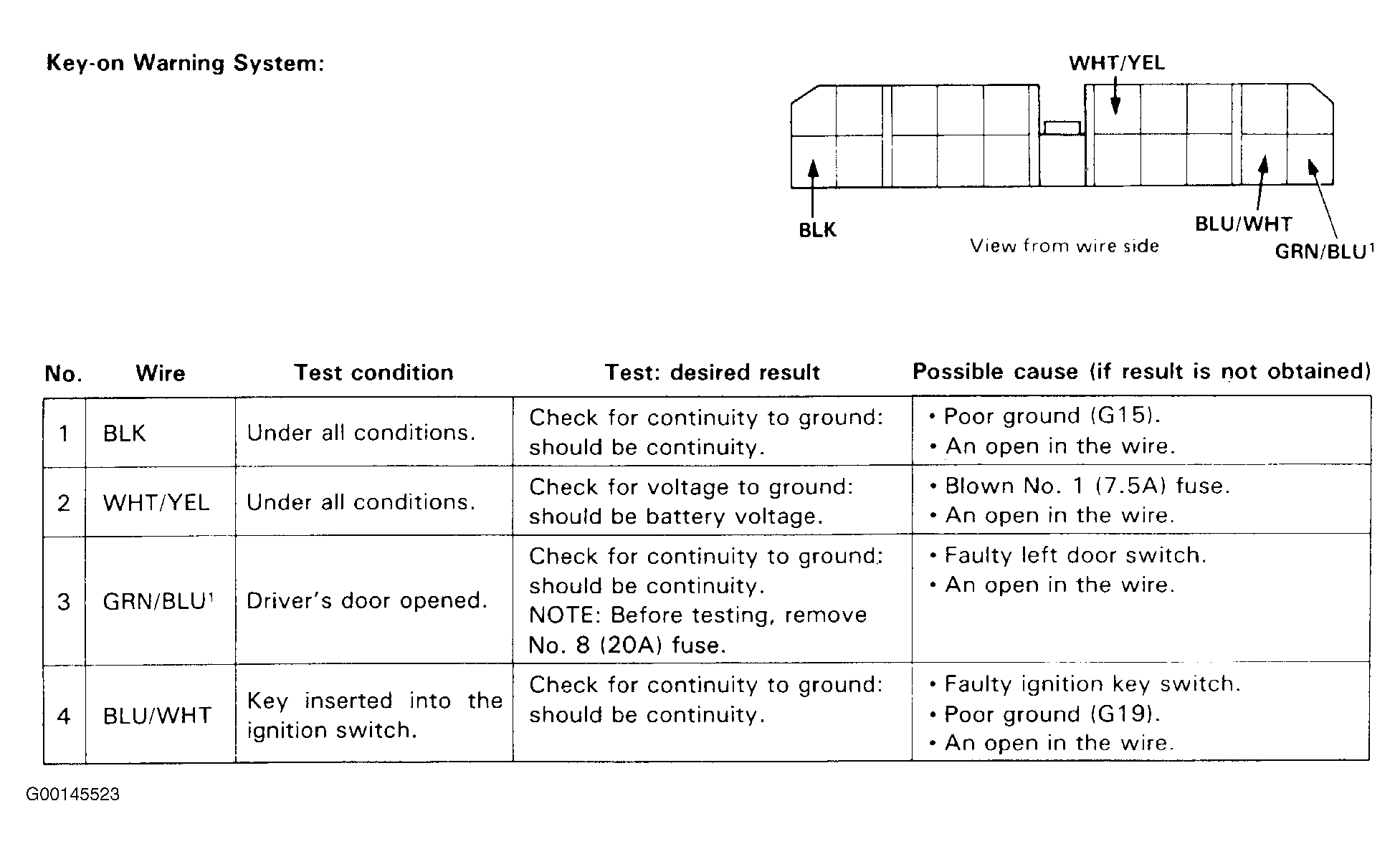

Fig 1: Key-On Warning System Input Test
G00145523Courtesy of AMERICAN HONDA MOTOR CO., INC.
