Audio Unit Error Codes (90-010)

Publication date: 1997-10-07
Reference number: 90-010

AUDIO UNIT ERROR CODES

TECHNICAL SERVICE BULLETIN

Reference Number(s): 90-010, Date of Issue: October 7, 1997

ACURA:	All Models with CD Player/Changer
SECTION:	Electrical
APPLIES TO:	All

Superceded Bulletin(s): 90-010, Date of Issue: February 19, 1991

NOTE: Supersedes 90-010, dated February 19, 1991

SERVICE INFORMATION

If the audio unit displays an error code, use the troubleshooting tables in this service bulletin to troubleshoot the problem. See Fig 1 thru Fig 4 . Refer to Service Bulletin 87-015, AUDIO UNIT IN-WARRANTY EXCHANGE/OUT OF WARRANTY for CD Player/Changer exchange information.

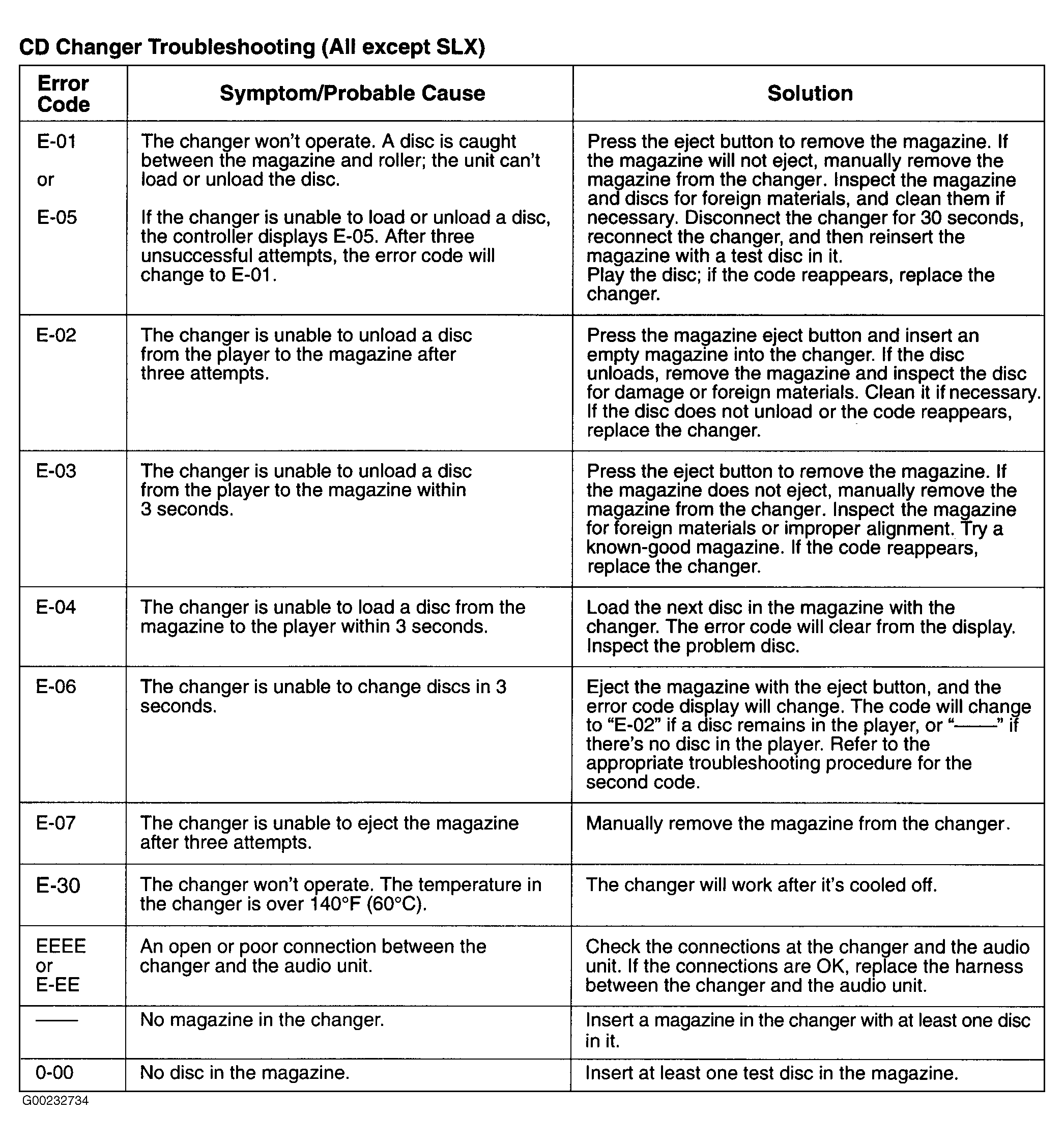

Fig 1: CD Changer Troubleshooting (All Except SLX)

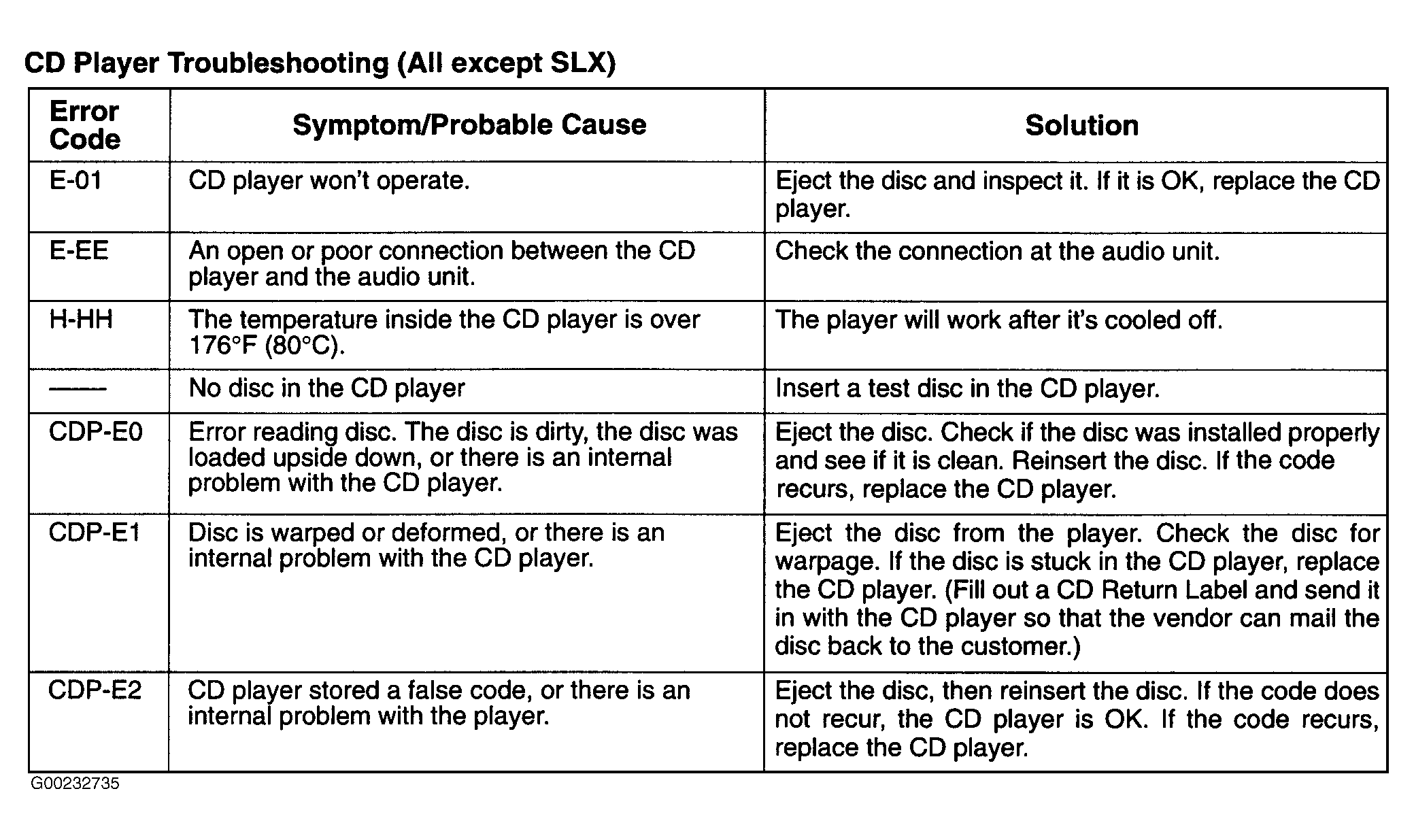

Fig 2: CD Player Troubleshooting (All except SLX)

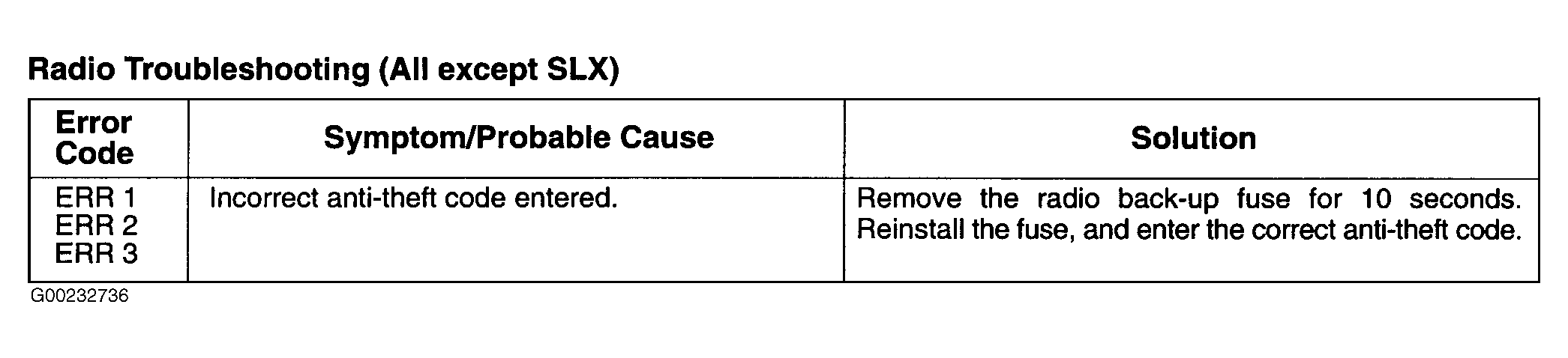

Fig 3: Radio Troubleshooting (All except SLX)

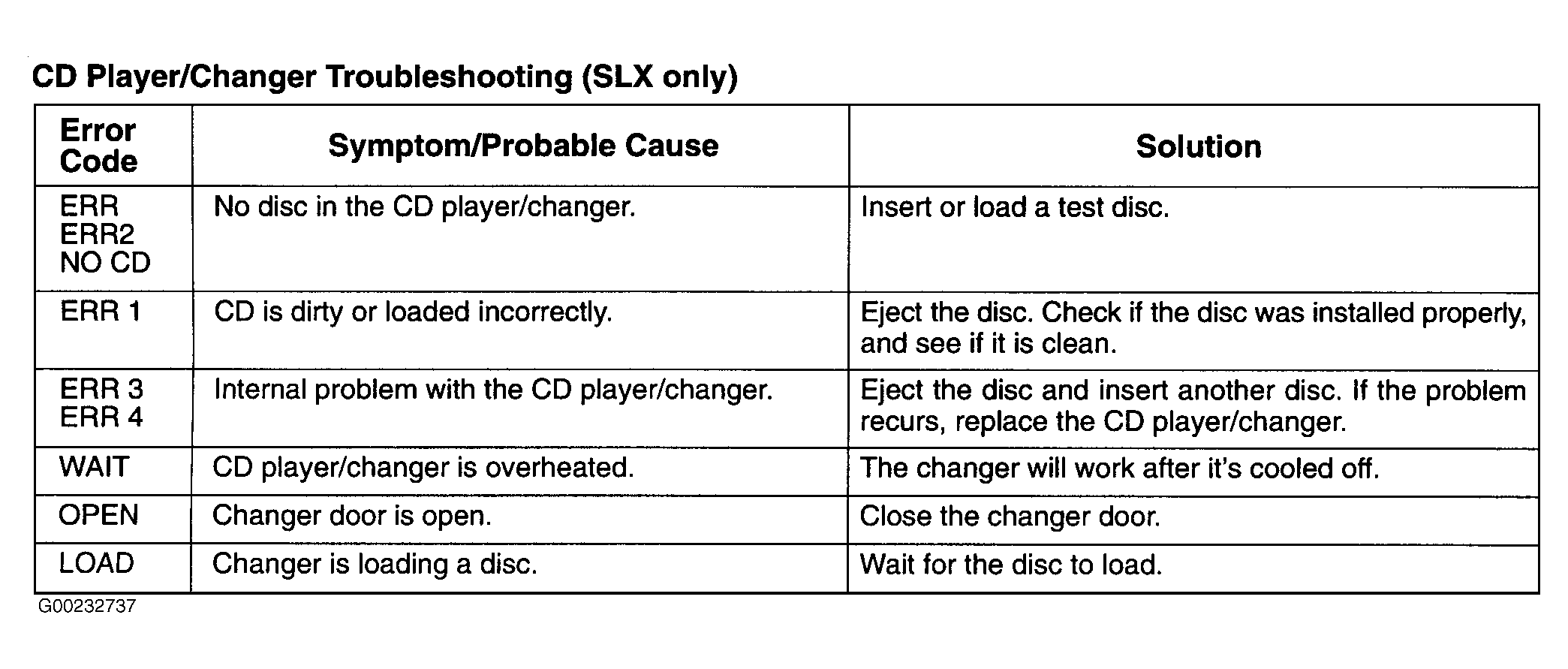

Fig 4: CD Player/Changer Troubleshooting (SLX only)

MANUALLY REMOVING A JAMMED MAGAZINE (ALL EXCEPT SLX)

ONE-PIECE DOOR MODEL

Remove the changer from the vehicle.
Remove the rear cover plate from the changer, and look for a jammed disc.
If a disc is jammed between the player and the magazine, turn the loading gear until the disc returns to the player mechanism. See Fig 5 . Do not attempt to reload the disc back into the magazine.

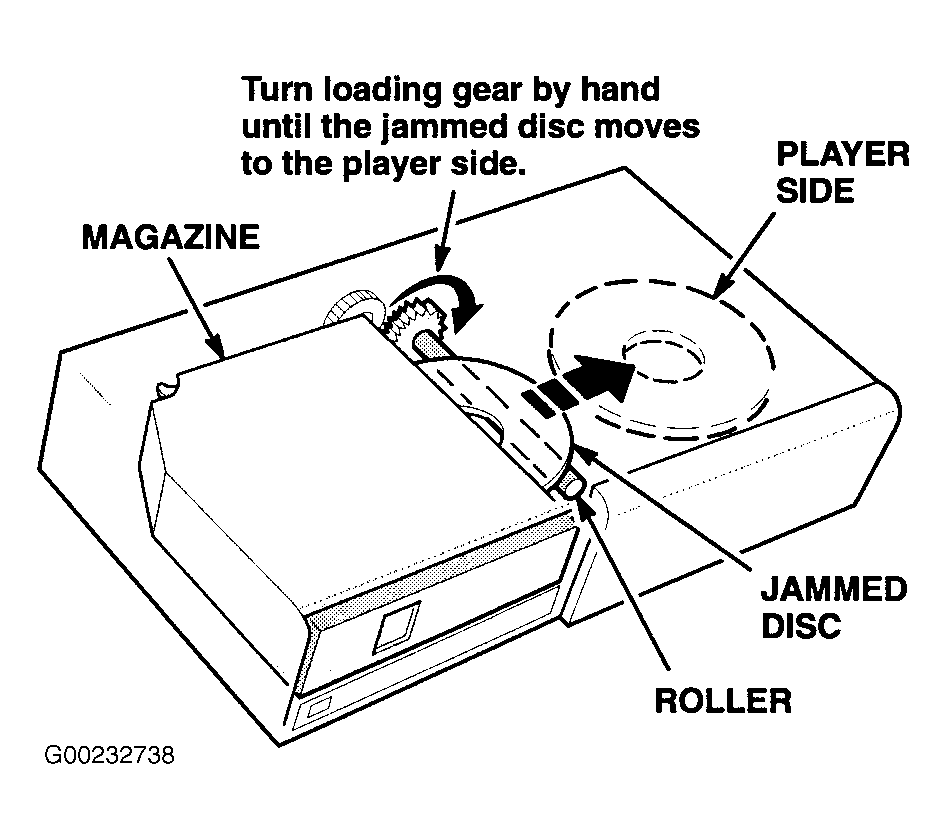

Fig 5: Turning Loading Gear When Disc Jammed Between Player & Magazine
After the disc is loaded into the player mechanism, turn the changer so that its front is facing you.
Insert a thin stainless steel ruler or a "Slim Jim" under the magazine, about 1 1/2" from the right side of the opening. See Fig 6 .

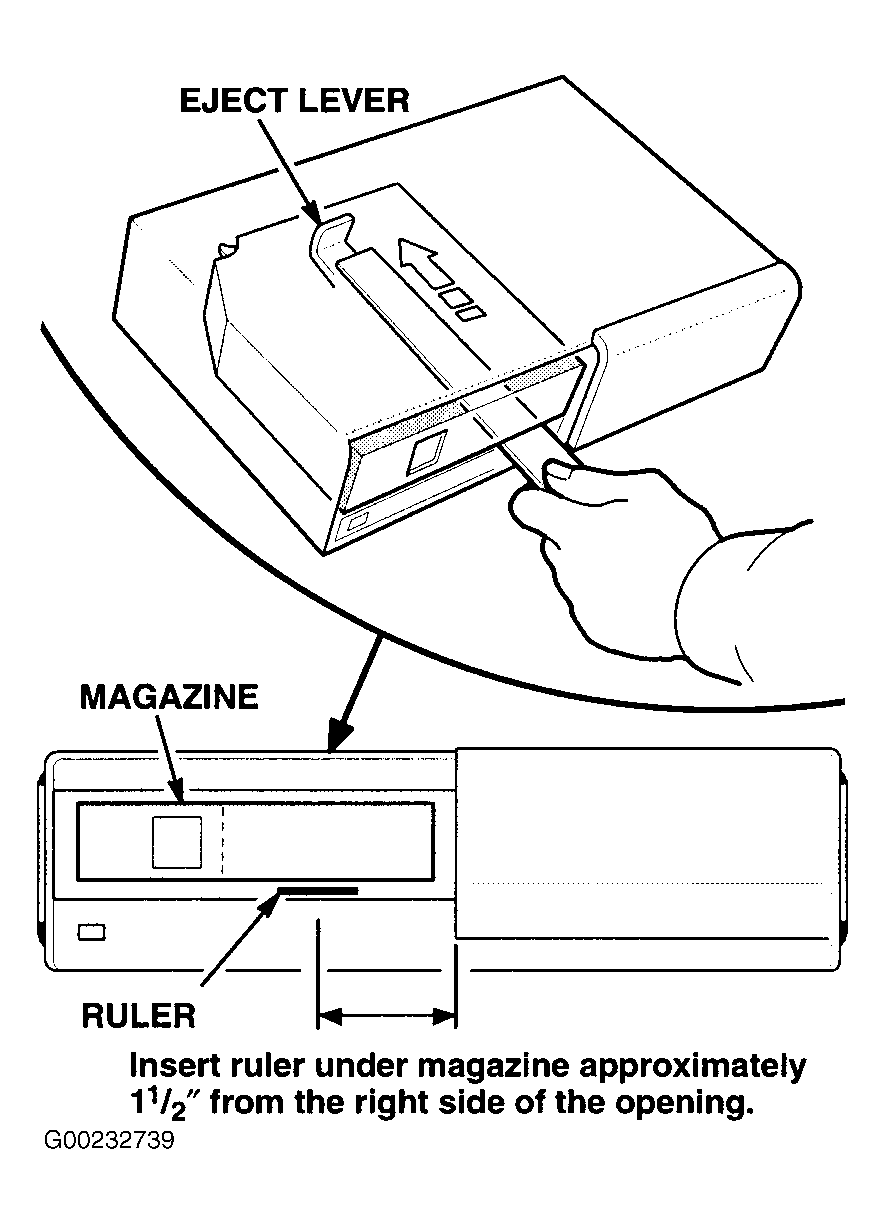

Fig 6: Inserting Stainless Steel Ruler Or "Slim Jim"
Push the ruler in until it presses against the eject lever at the back of the unit.
Slowly remove the ruler and magazine at the same time. See Fig 7 .

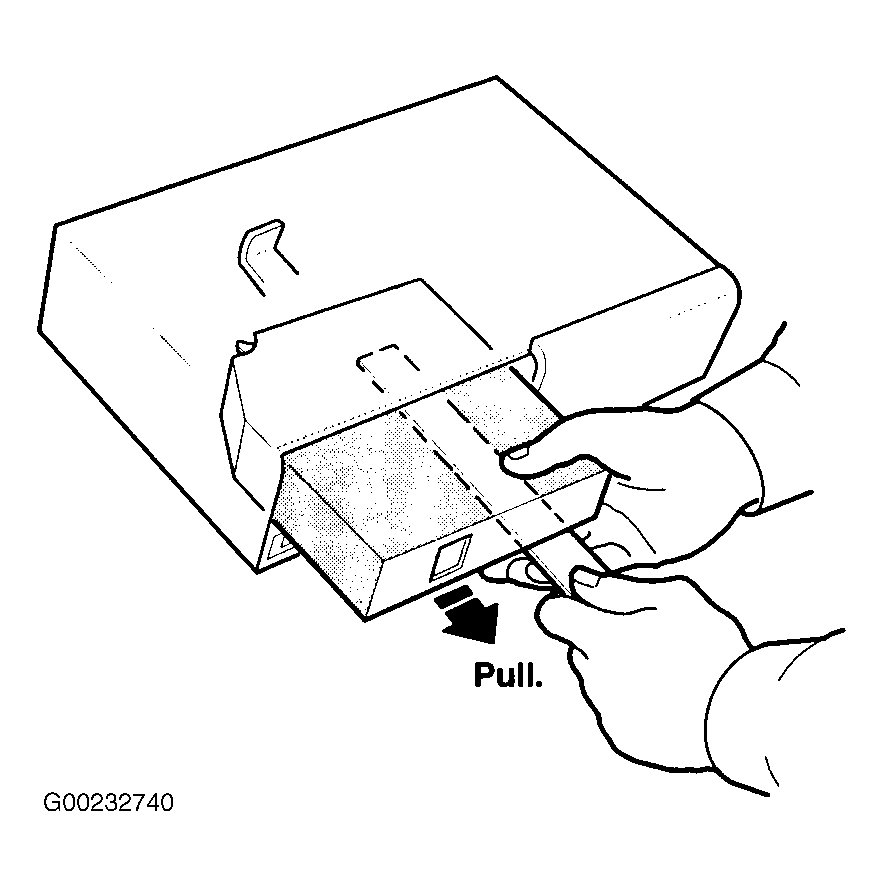

Fig 7: Slowly Removing Ruler & Magazine

TWO-PIECE DOOR MODEL

Remove the changer from the vehicle.
Remove the top cover plate from the changer, and look for a jammed tray.

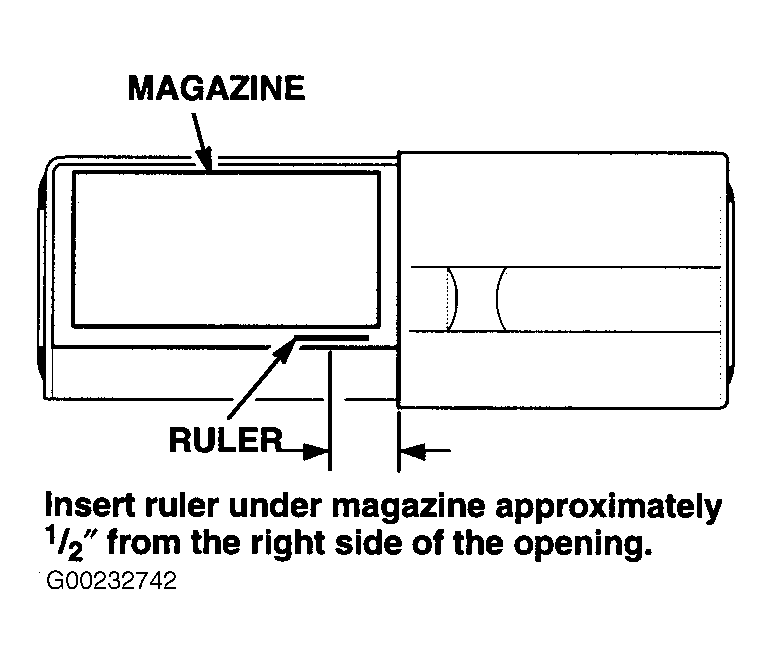

If a tray is stuck in the player, reinstall the cover and replace the changer. If all the trays are inside the magazine, insert a thin stainless steel ruler or a "Slim Jim" under the magazine, about 1/2" from the right side of the opening. See Fig 8 .

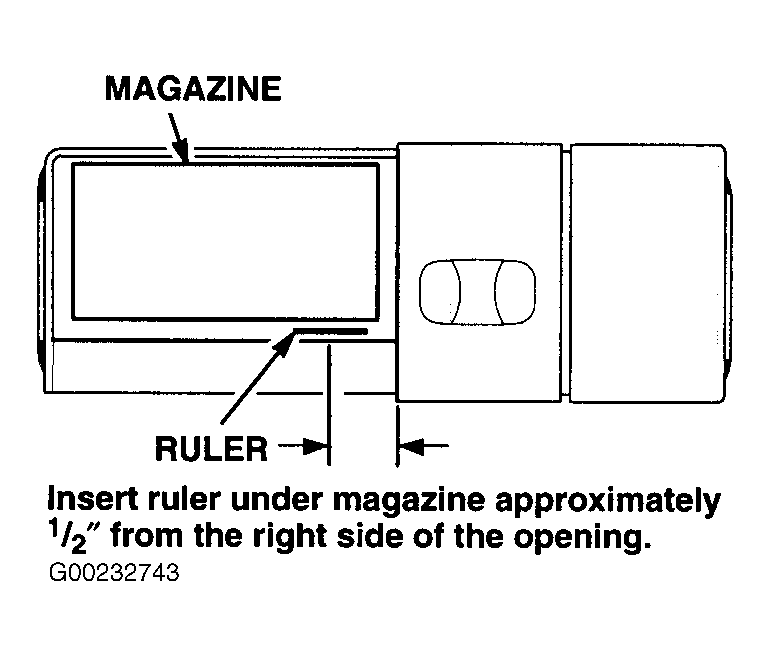

Fig 8: Inserting Ruler Or "Slim Jim" When Tray Is Stuck In Player
Push the ruler in until it presses against the eject lever at the back of the unit.
Slowly remove the ruler and magazine at the same time.

MANUALLY REMOVING A JAMMED MAGAZINE (SLX ONLY)

ONE-PIECE DOOR MODEL

Open the changer door.
Check to see if all the trays are in the magazine.
- If a tray is stuck in the changer, replace the changer.

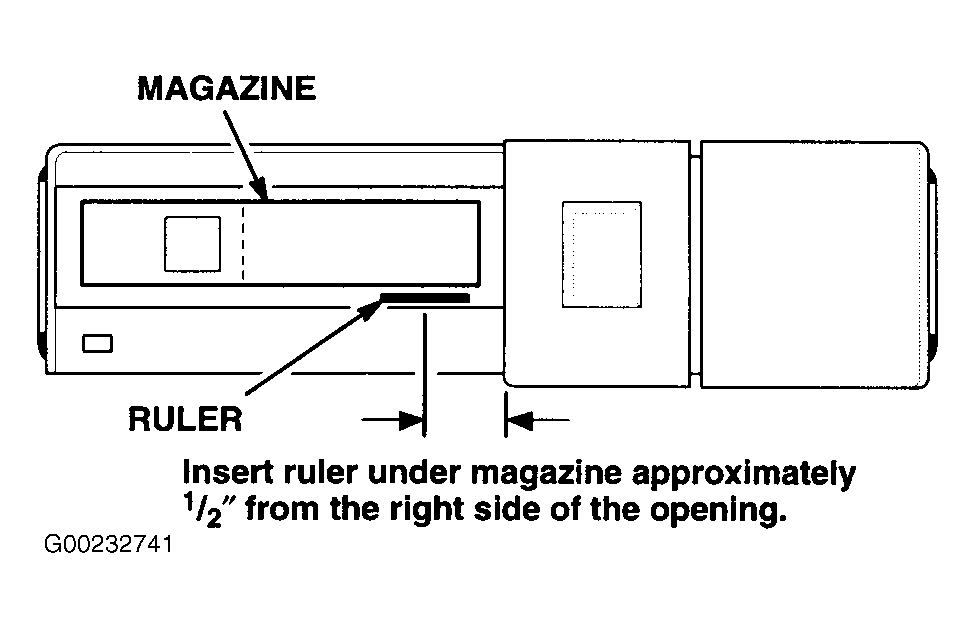

- If all the trays are in the magazine, place the changer in a horizontal position, and insert a thin stainless steel ruler or a "Slim Jim" under the magazine, about 1/2" from the right side of the opening. See Fig 9 .

  Fig 9: Placing Changer In Horizontal Position
Push the ruler in until it presses against the eject lever at the back of the unit.
Slowly remove the ruler and magazine at the same time.

TWO-PIECE DOOR MODEL

Remove the changer from the vehicle.
Remove the top cover plate from the changer, and inspect for a jammed tray.
- If a tray is stuck in the changer, replace the changer.
- If all the trays are in the magazine, place the changer in a horizontal position, and insert a thin stainless steel ruler or a "Slim Jim" under the magazine, about 1/2" from the right side of the opening. See Fig 10 .

  Fig 10: Removing Top Cover Plate From Changer
Push the ruler in until it presses against the eject lever at the back of the unit.
Slowly remove the ruler and magazine at the same time.

HANDLING AND INSPECTING COMPACT DISCS

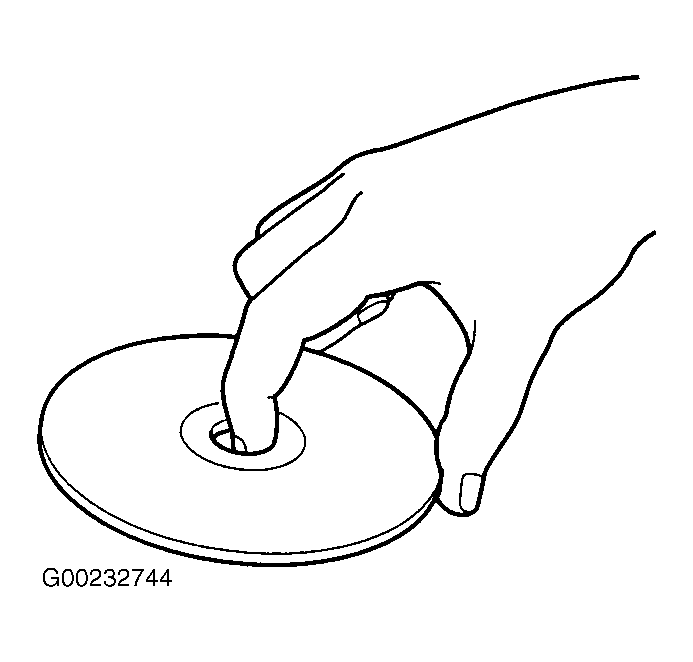

Handle a CD by its edges, see Fig 11 ; never touch the flat surfaces. Contamination from fingerprints, liquids, felt-tip pens, and labels can cause the CD to not play properly, or possibly jam in the drive.

Fig 11: Handling CD By Its Edges

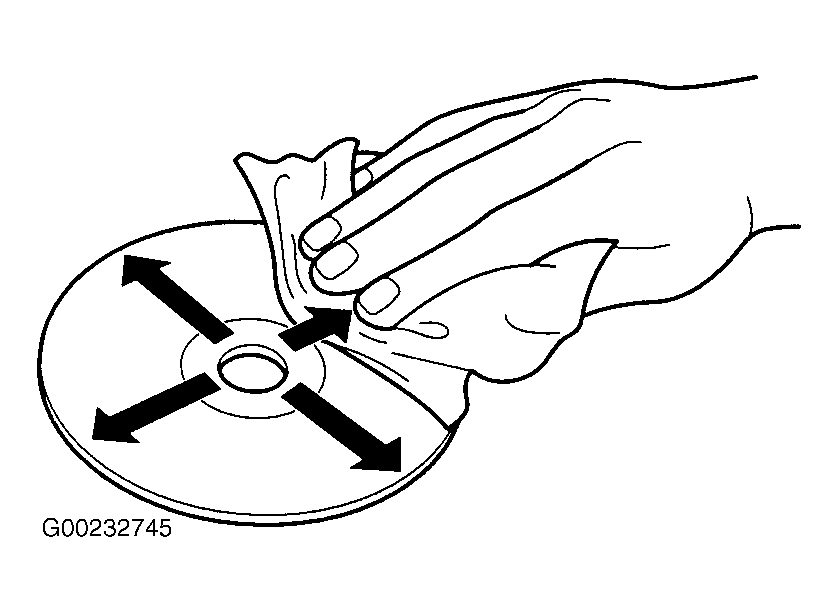

When cleaning a disc, use a clean soft cloth. See Fig 12 . Wipe across the disc from the center to the outside. Do not wipe the disc in a circular motion.

Fig 12: Cleaning Disc With Clean Soft Cloth
A new CD may be rough on the inner and outer edges. The small plastic pieces causing this roughness can flake off and fall on the recording surface of the disc, causing skipping or other problems. Remove these pieces by rubbing the inner and outer edges with the side of a pencil or pen. See Fig 13 .

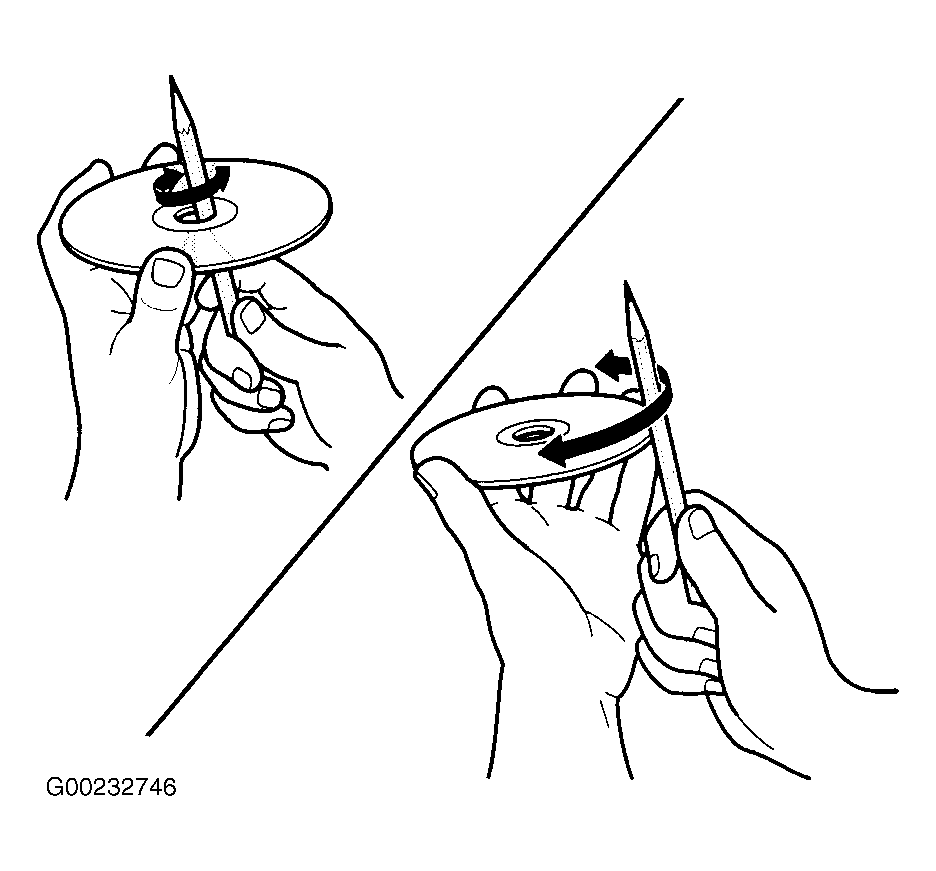

Fig 13: Removing Pieces By Rubbing Inner & Outer Edges
Various accessories are available to protect CDs and improve the sound quality of CDs. These accessories increase the thickness or diameter of the discs and should not be used in CD changers.
