Power Seat Relay Assembly Terminals
Power Seat Relay Assembly Terminals

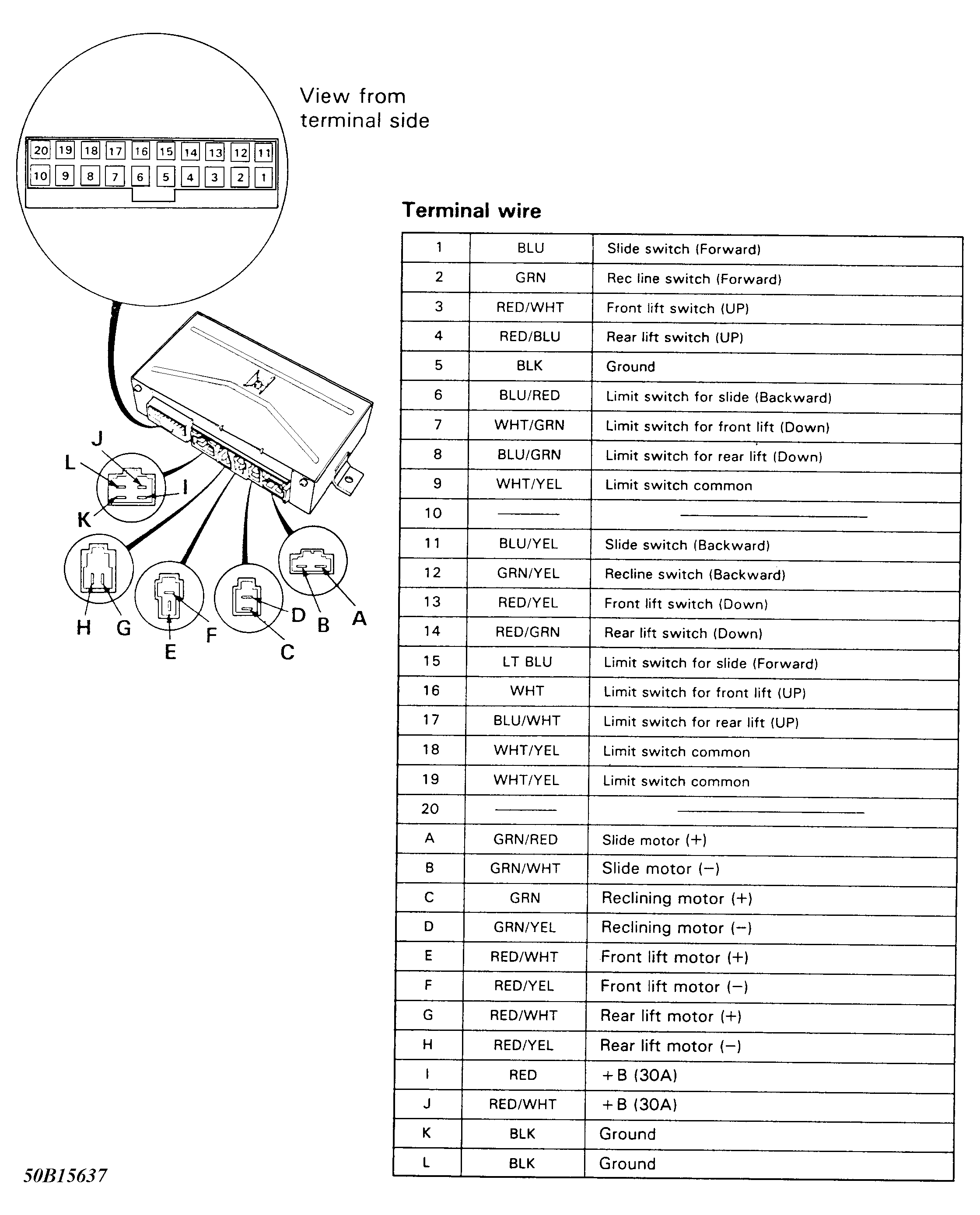

Fig 1: Power Seat Relay Terminals
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
