Limit Switch Test

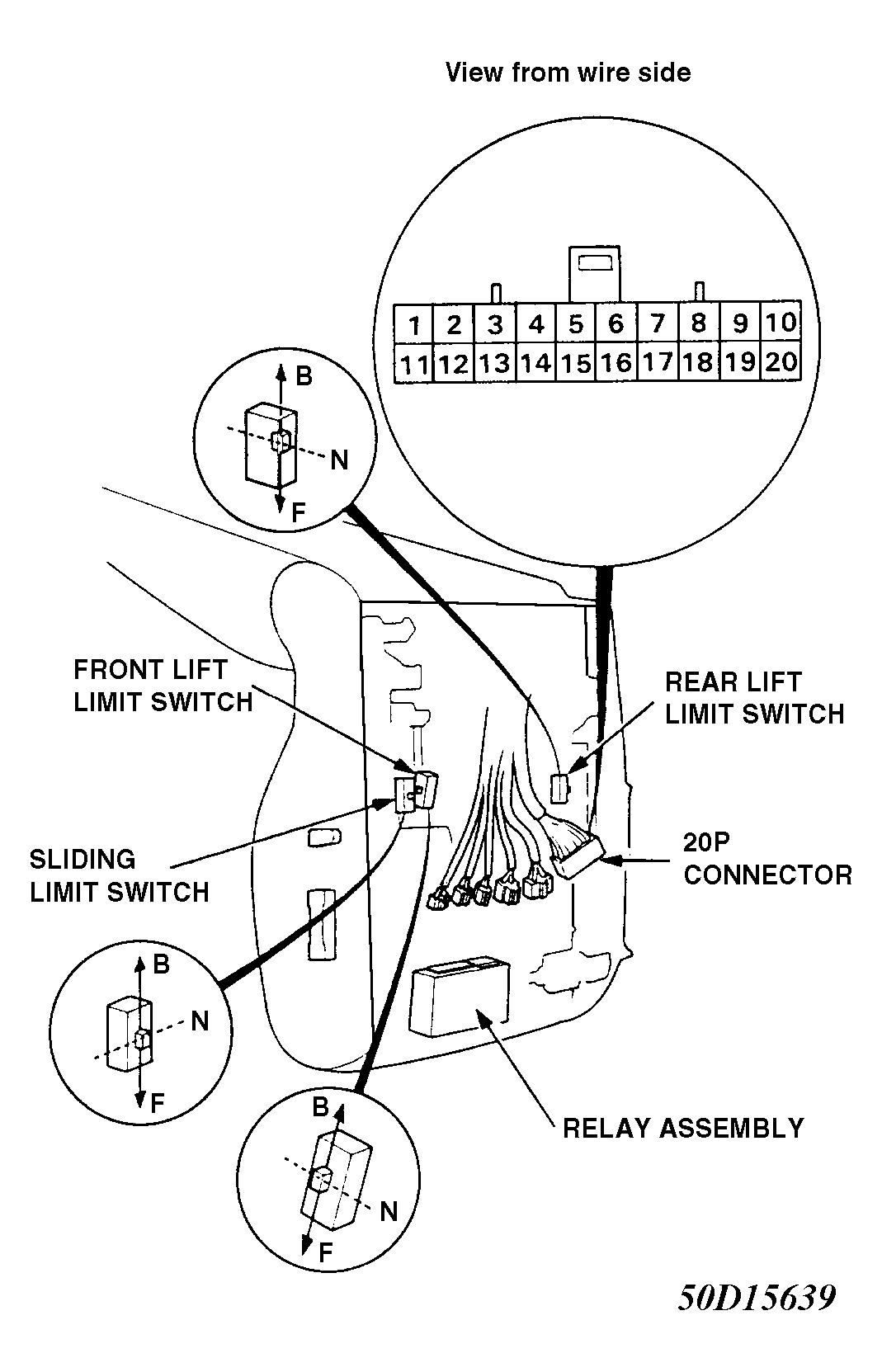

Remove driver's seat, then disconnect 20-P connector from relay assembly. Check for continuity between specified terminals with switch held in each position. Replace switch if continuity is not as specified. Refer to the LIMIT SWITCH TEST TABLE. Also, see Fig 1 .
LIMIT SWITCH TEST
| Switch Position | Terminals | |
|---|---|---|
| Sliding Limit Switch | ||
| "F" (Off At Full Forward Position) | 15-18 | |
| Neutral | 15-18-6 | |
| "B" (Off At Full Back Position) | 18-6 | |
| Front Lift Limit Switch | ||
| "F" (Off At Full Forward Position) | 16-9 | |
| Neutral | 16-9-7 | |
| "B" (Off At Full Back Position) | 9-7 | |
| Rear Lift Limit Switch | ||
| "F" (Off At Full Forward Position) | 19-8 | |
| Neutral | 17-19-8 | |
| "B" (Off At Full Back Position) | 17-19 | |
