Anti-Lock Brake System: Description

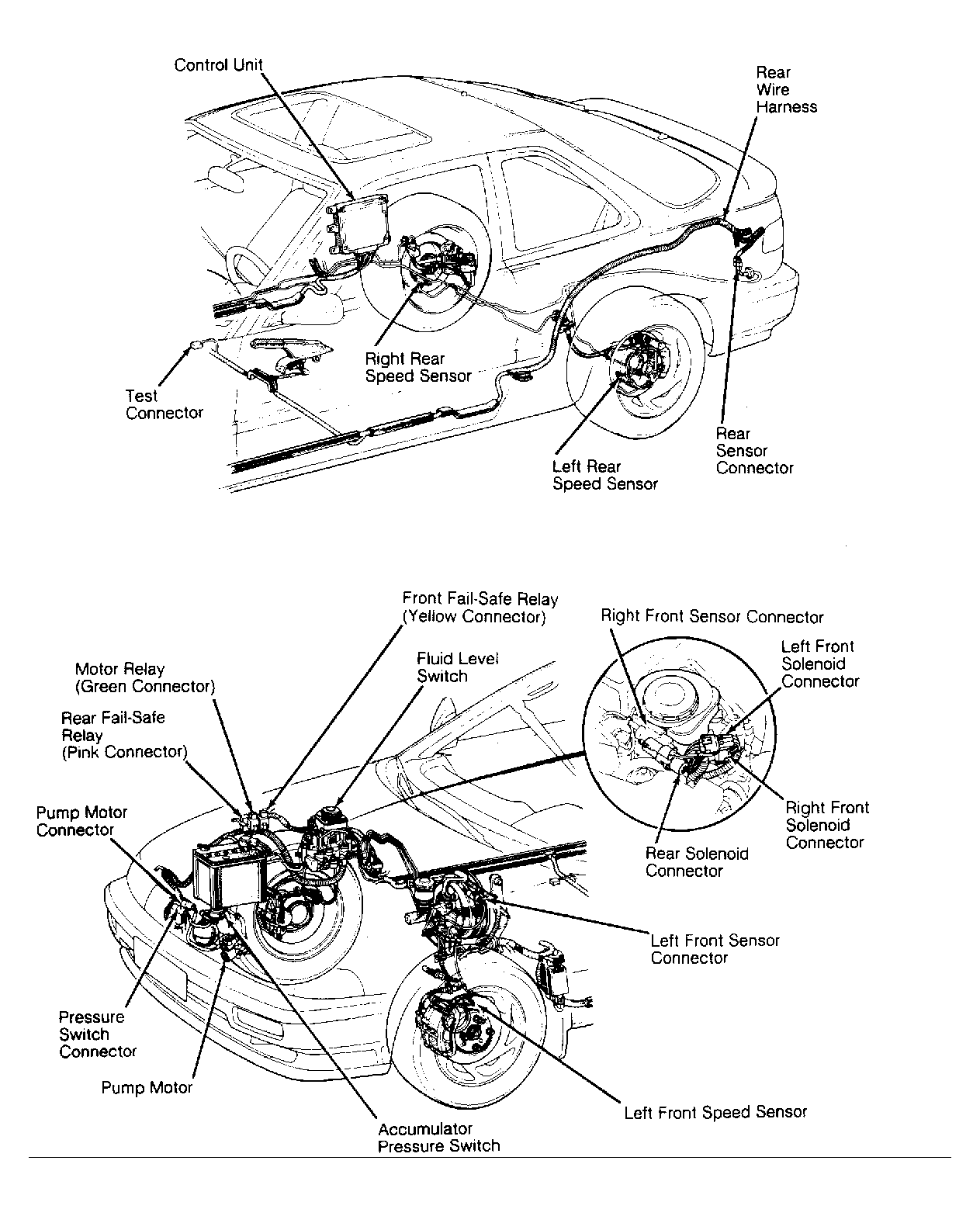

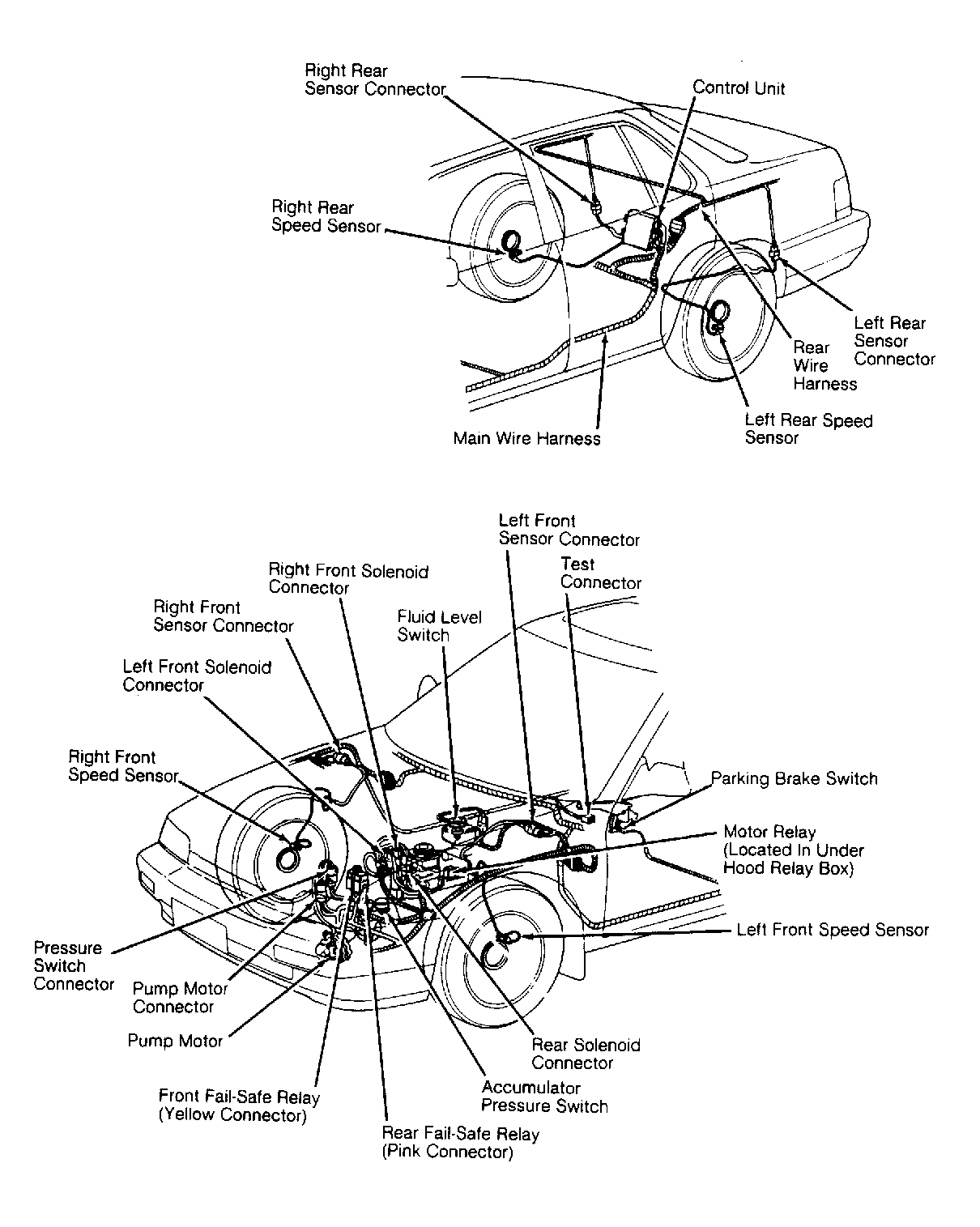

The Anti-Lock Brake System (ABS) is designed to prevent wheel lock-up during hard braking. This effect allows driver to maintain control of vehicle. System consists of control unit, accumulator, power unit, 4 wheel sensors, modulator, warning light, master cylinder, power booster assembly and connecting wiring. See Figure and Figure .
