PULSER Test (Driver's Window Motor)

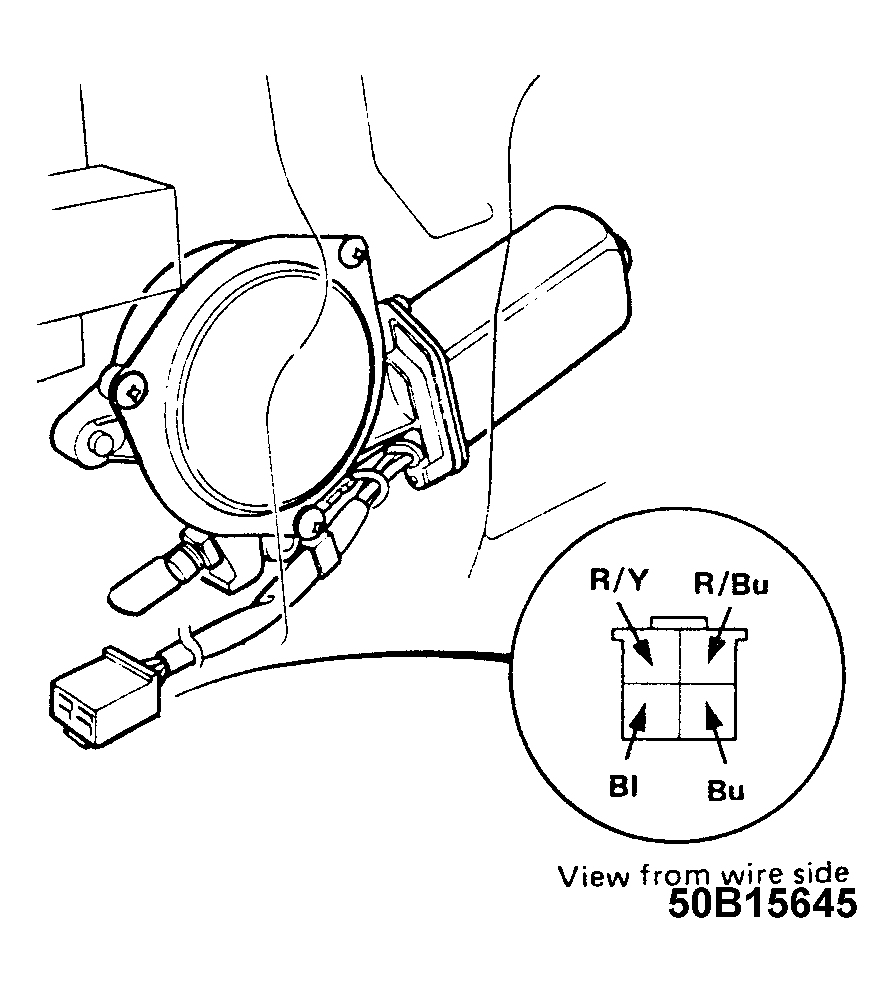

Measure resistance between Blue and Black terminals when running motor by connecting battery voltage to Red/Yellow and Red/Blue terminals. Ohmmeter should indicate between 20-50 ohms as motor runs. See Figure .
Measure resistance between Blue and Black terminals when running motor by connecting battery voltage to Red/Yellow and Red/Blue terminals. Ohmmeter should indicate between 20-50 ohms as motor runs. See Figure .
