Control Unit Inputs Test

Disconnect 14-P connector from control unit. Make the following input tests at harness pins. See Fig 1 .

NOTE: Recheck connections between 14-P connector and control unit, then replace control unit if all input tests prove OK. See Fig 1

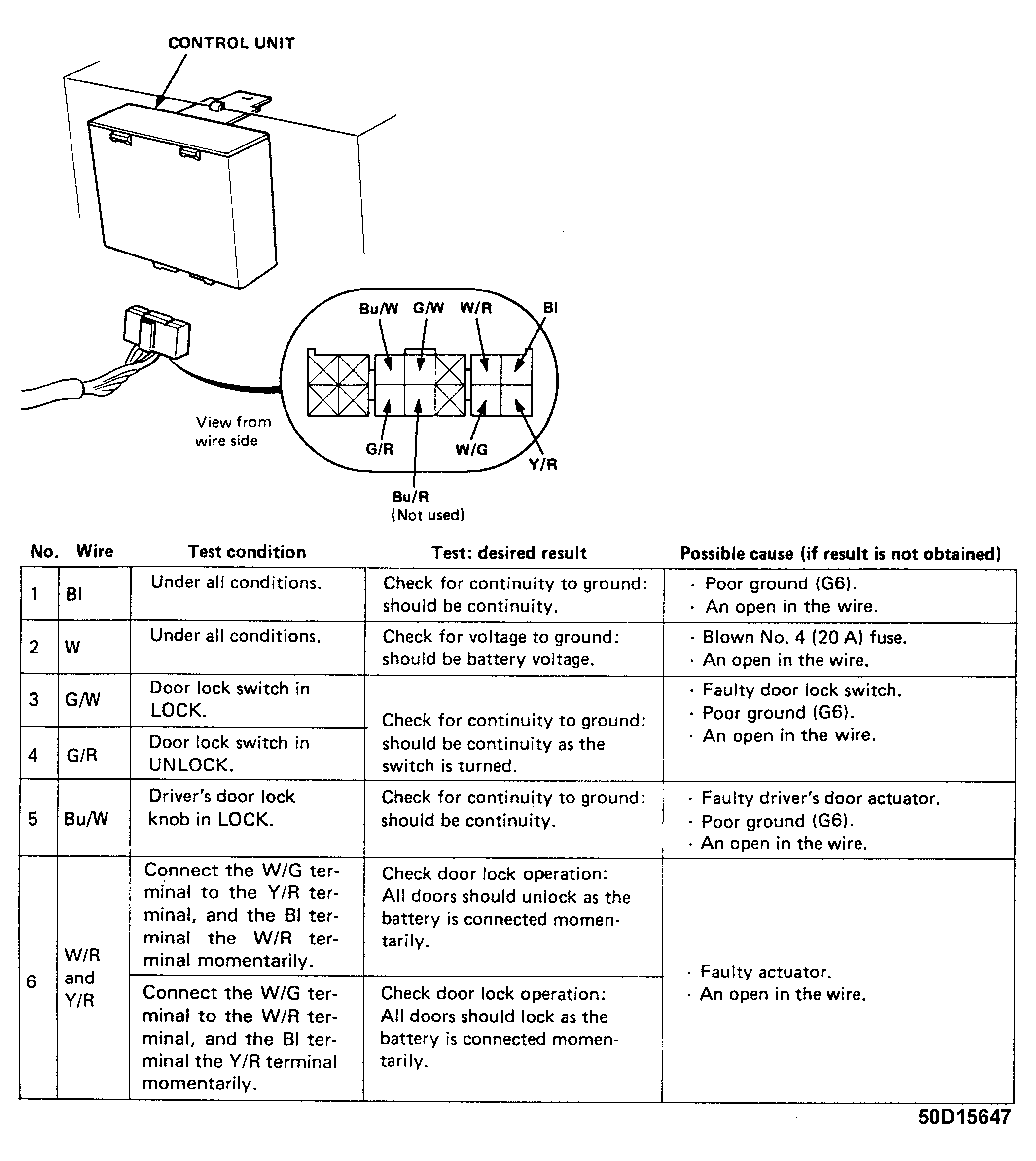

Fig 1: Power Door Locks Control Unit Input Test
