Door Mirror Test

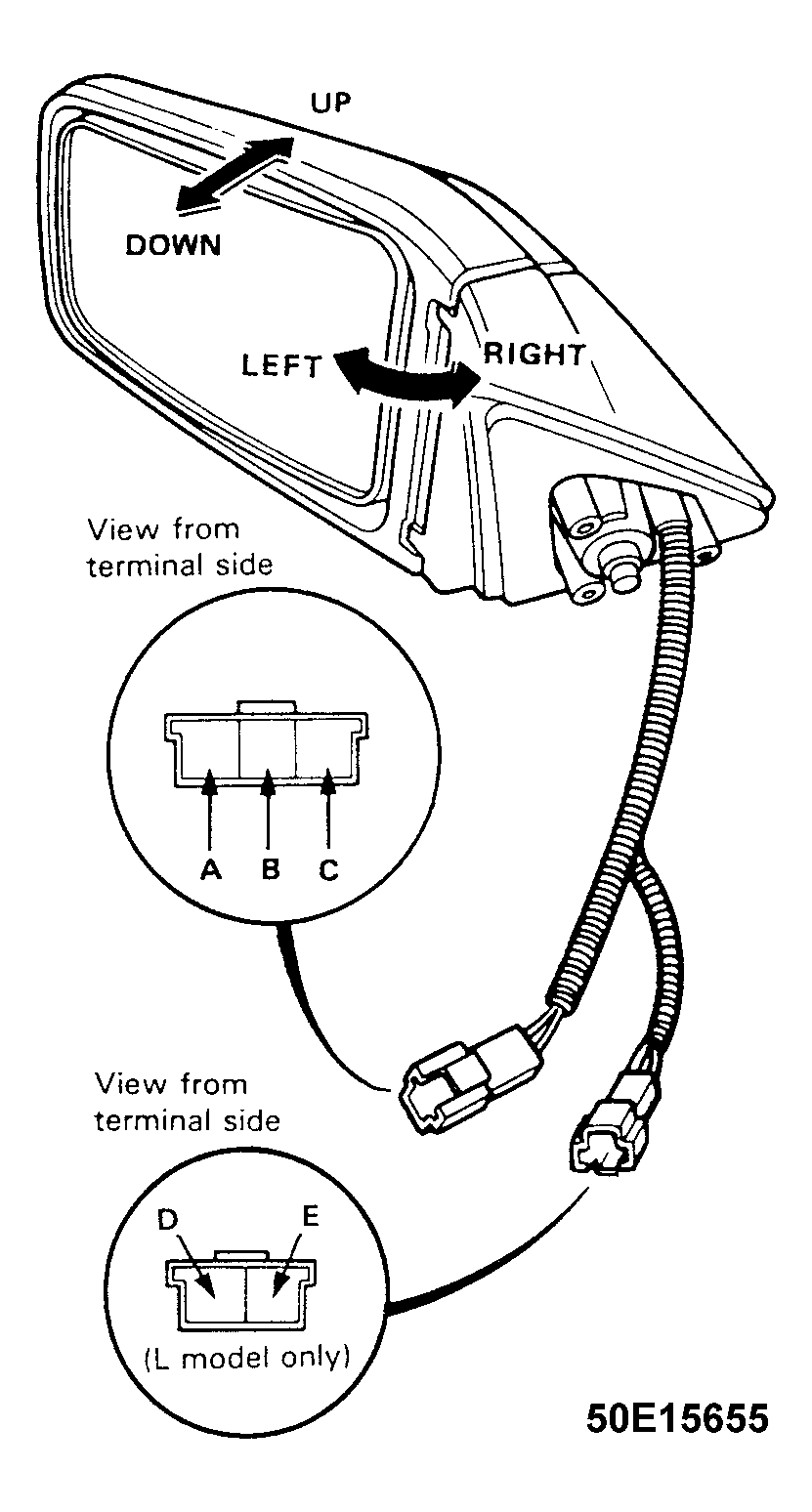

Remove door trim panel. Unplug 3-P connector. Using fused jumper wires, connect specified terminals to battery voltage and ground. See Fig 1 . Replace motor assembly if operation is not as specified. See POWER MIRROR MOTOR TEST table.
For L model only, check for continuity between "D" and "E" terminals (R x 100 scale). There should be continuity.
DOOR MIRROR TEST
| Apply 12 Volts To Pin | Ground Pin | Mirror Operation |
|---|---|---|
| C | B | Up |
| B | C | Down |
| A | B | Right |
| B | A | Left |
