Passenger Window Switch Test

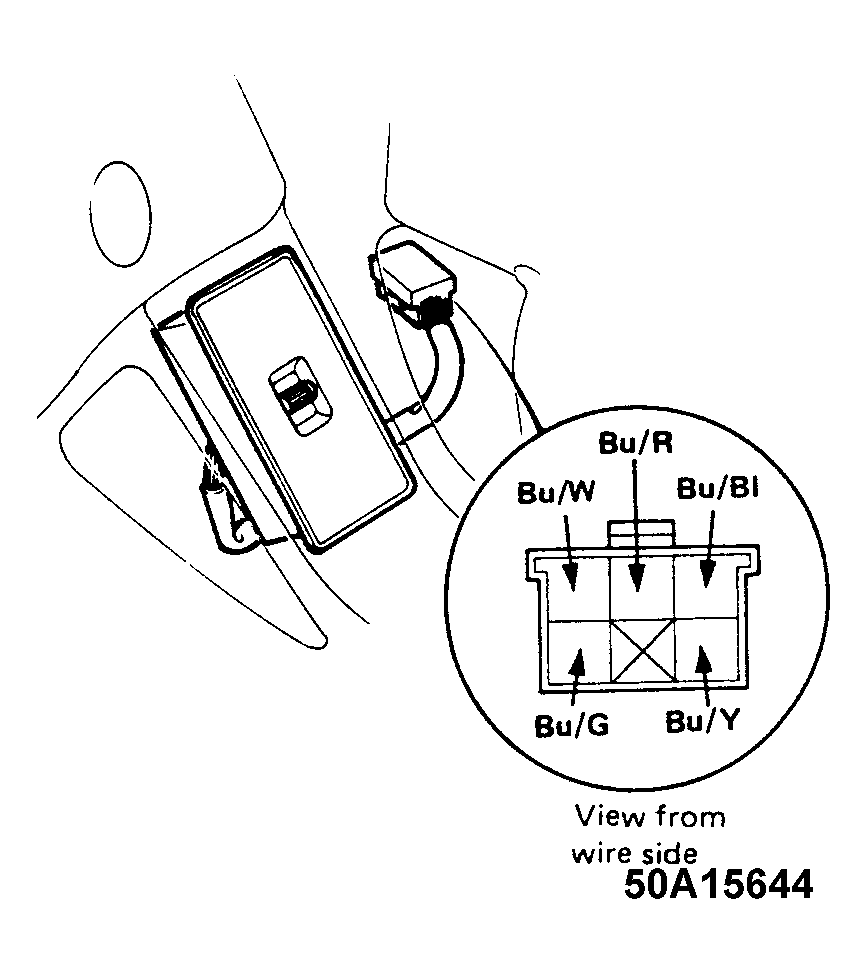

Remove door trim panel. Check for continuity between specified switch terminals with switch in each position. See Fig 1 . See PASSENGER POWER WINDOW SWITCH TEST table.
NOTE:
Right front switch shown; rear switches similar.
PASSENGER POWER WINDOW SWITCH TEST
| Switch Position | Continuity |
|---|---|
| Up | Blue/Black-Blue/Red; Blue/White-Blue/Green |
| Off | Blue/White-Blue/Green; Blue/Red-Blue/Yellow |
| Down | Blue/Black-Blue/White; Blue/Red-Blue/Yellow |
