Steering Column: Disassembly

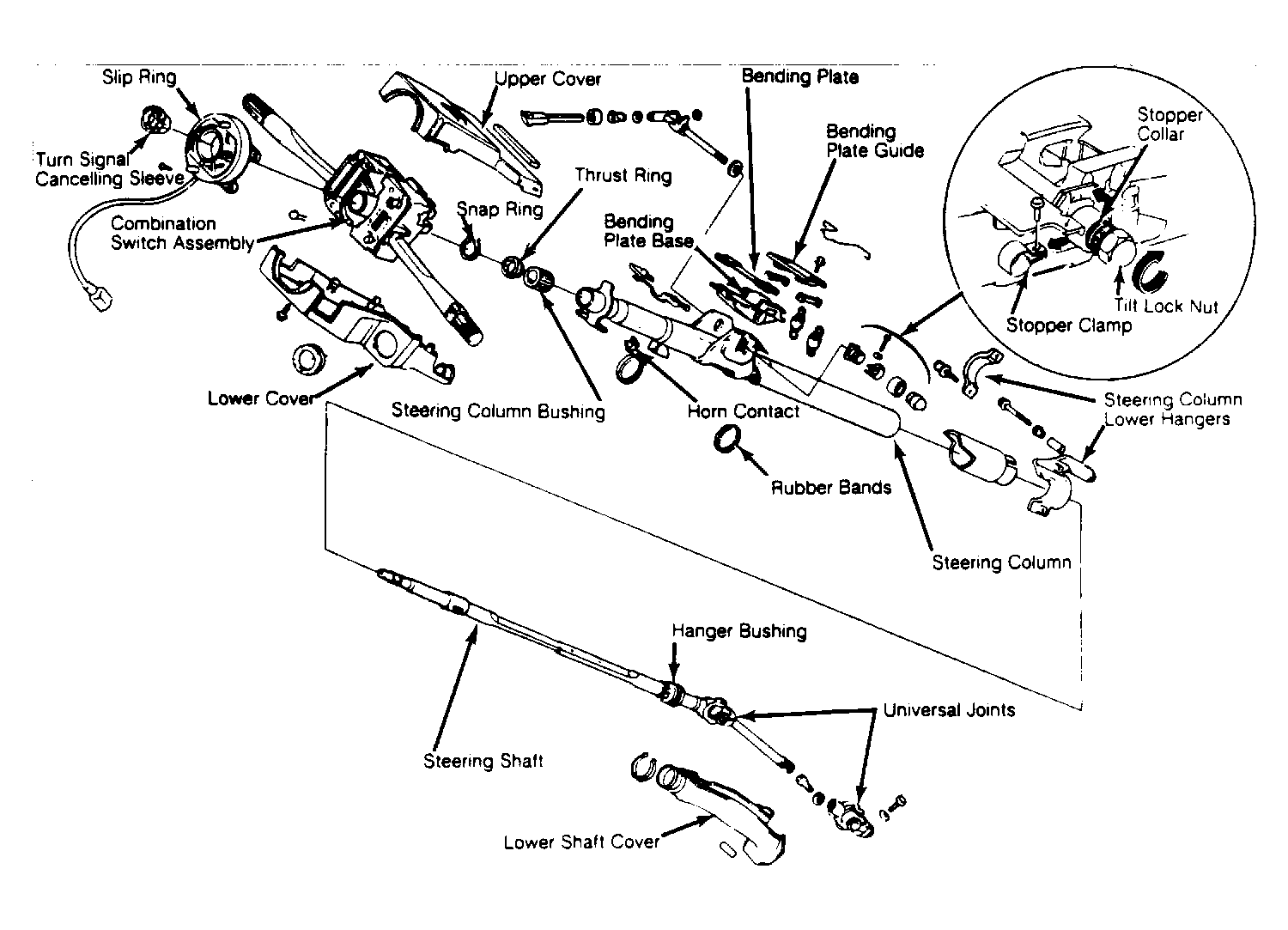

  1. Remove plastic collar. Remove stopper clip retaining screw. Slide stopper collar toward tilt lock nut side. Remove column hanger springs. Remove stopper collar. Remove pin stopper. See Figure .
  2. Remove bending plate. Remove bending plate base. Remove tilt lever lock nut. Tilt lever lock nut is a reverse thread nut. Remove tilt lever assembly.
  3. Remove steering column assembly. Remove horn contact from side of column. Remove snap ring. Slide shaft from column assembly.
  4. Remove column thrust ring. Remove upper bushing (if necessary). If hanger bushing is worn or damaged, replace steering shaft as an assembly.
