Electrical Component Locator: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|

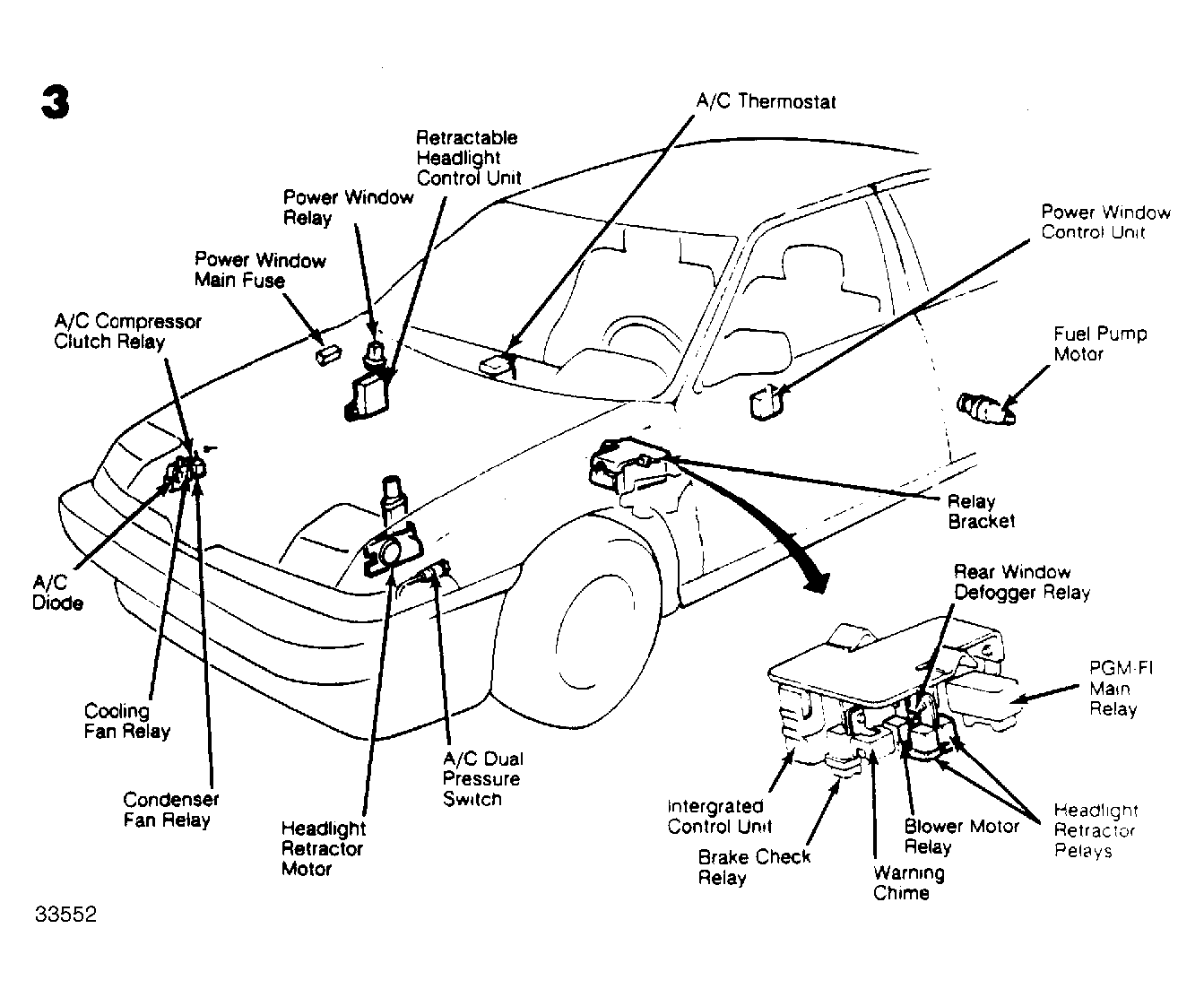

| A/C Dual Pressure Switch | On left front corner of engine compartment. See Figure . |
| Brake Fluid Level Switch | On bottom of brake fluid reservoir cap. |
| Brake Light Switch | On bracket above brake pedal. |
| Clutch Switch | On bracket above clutch pedal. |
| Cooling Fan Switch | On right front of engine compartment, behind radiator. |
| Cruise Control Clutch Switch (M/T) | On bracket, above clutch pedal. |
| Neutral Safety Switch (A/T) | At base of shift lever. |

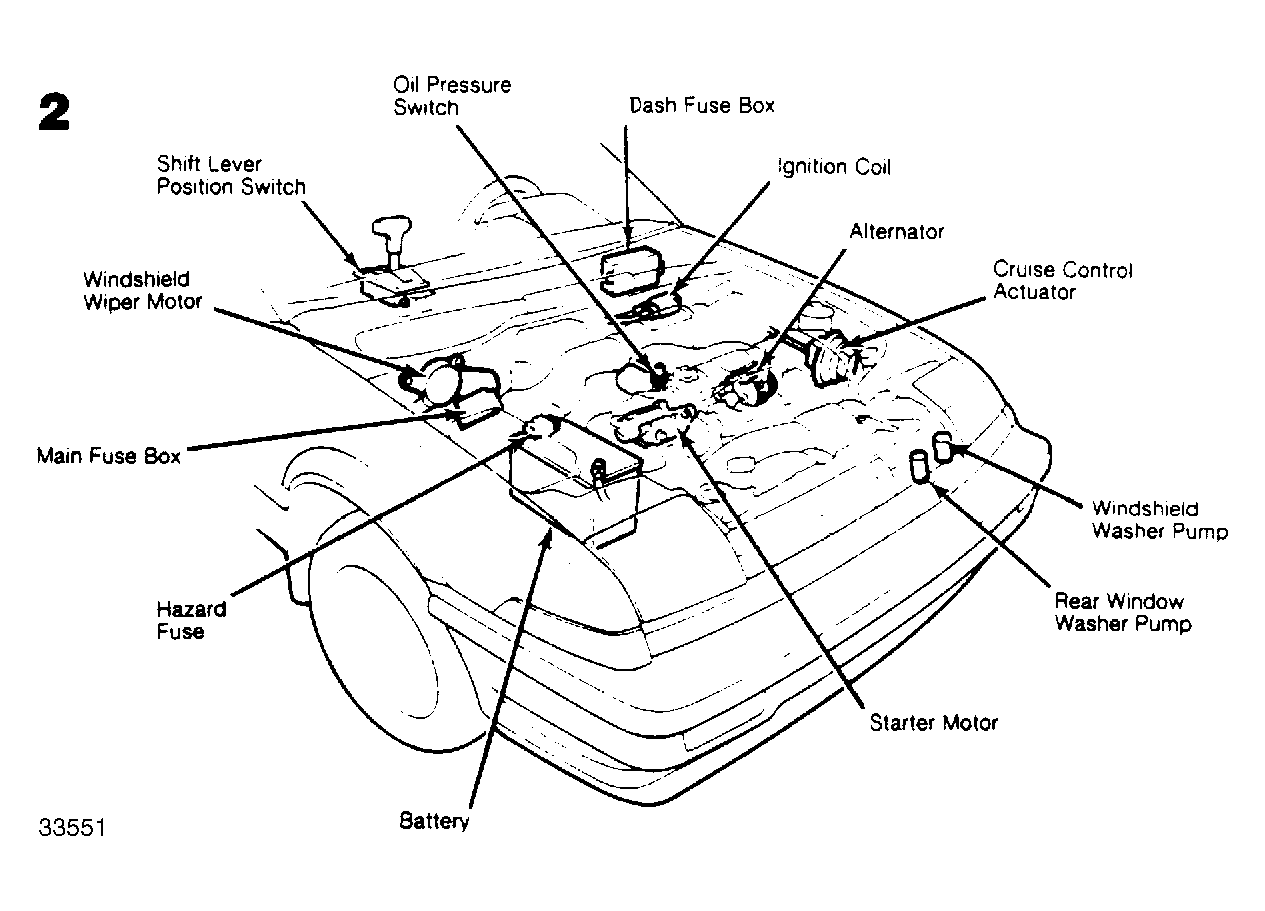

| Oil Pressure Switch | On top of engine, above oil filter. See Figure . |
| Parking Brake Switch | At base of parking brake lever. See Figure . |
| Seat Belt Switch | At base of driver's seat belt buckle. See Figure . |
| Shift Lever Position Switch | Attached to shift lever base. See Figure . |
