Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION

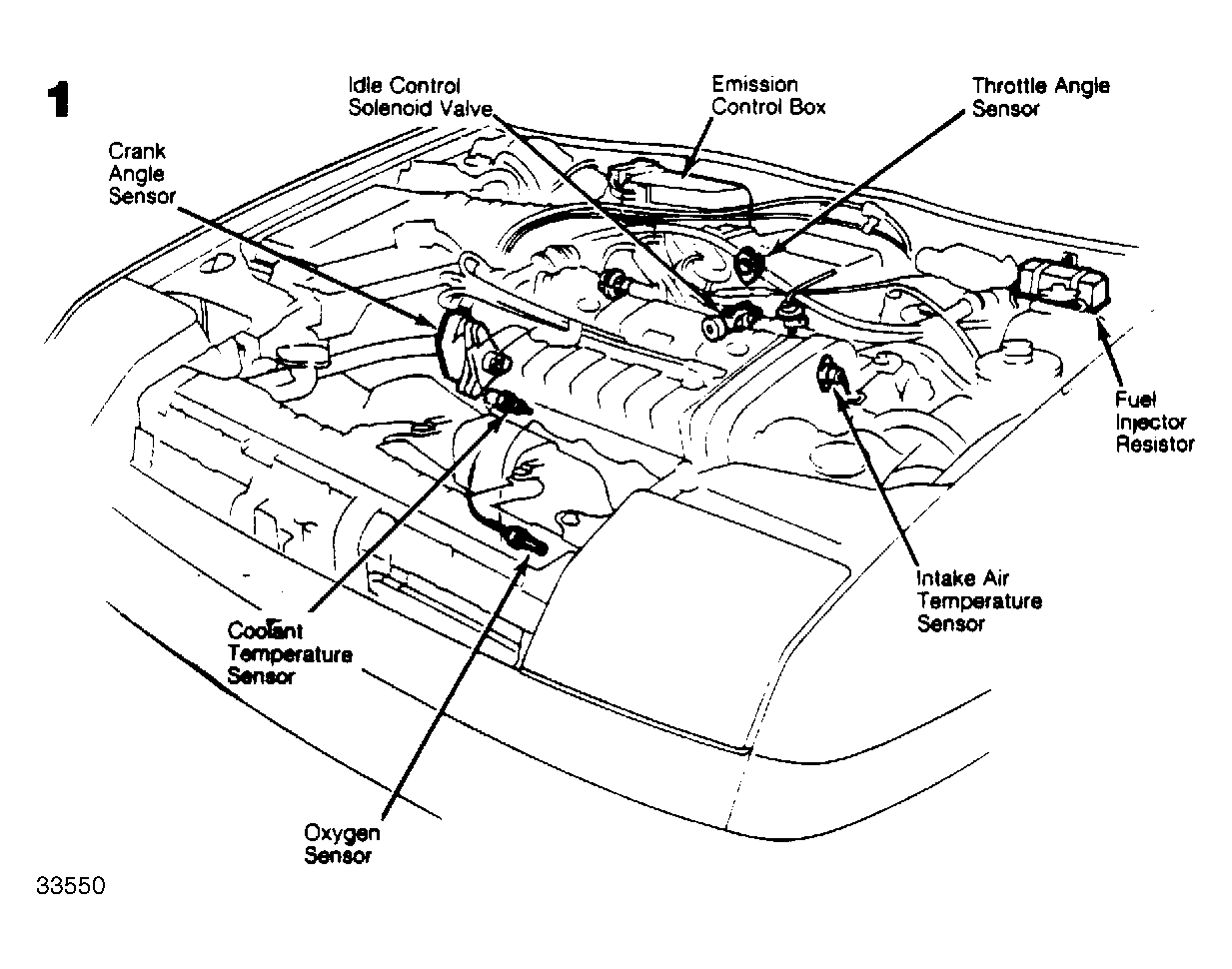

| Component | Location |
|---|---|
| A/C Diode | On right front corner of engine compartment. See Figure . |
| A/C Thermostat | Behind center console, on evaporator core housing. See Figure . |
| Blower Motor Resistor | Behind glove box, on top of blower motor. |
| Cruise Control Actuator | On left side of engine compartment. See Figure . |
| Dimmer Control Amplifier | Under left side of dash. |
| Emission Control Box | In engine compartment, on center of firewall. See Figure . |
| Fuel Injector Resistors | In left rear corner of engine compartment. See Figure . |
| Heater Function Control Amplifier | Under center of dash. |
| Radio Noise Condenser | In left rear corner of engine compartment, on firewall. |
| Relay Block | Behind left side of dash, above fuse/relay block. See Figure . |
| Warning Chime | Under left side of dash, on relay block. See Figure . |
