Fuel Injection System - HONDA PGM-FI: Operation: Resistor

To prolong injector life, flow of electrical current to the injector coil is restricted by a resistor installed in series between the electrical power source and the injector coil.

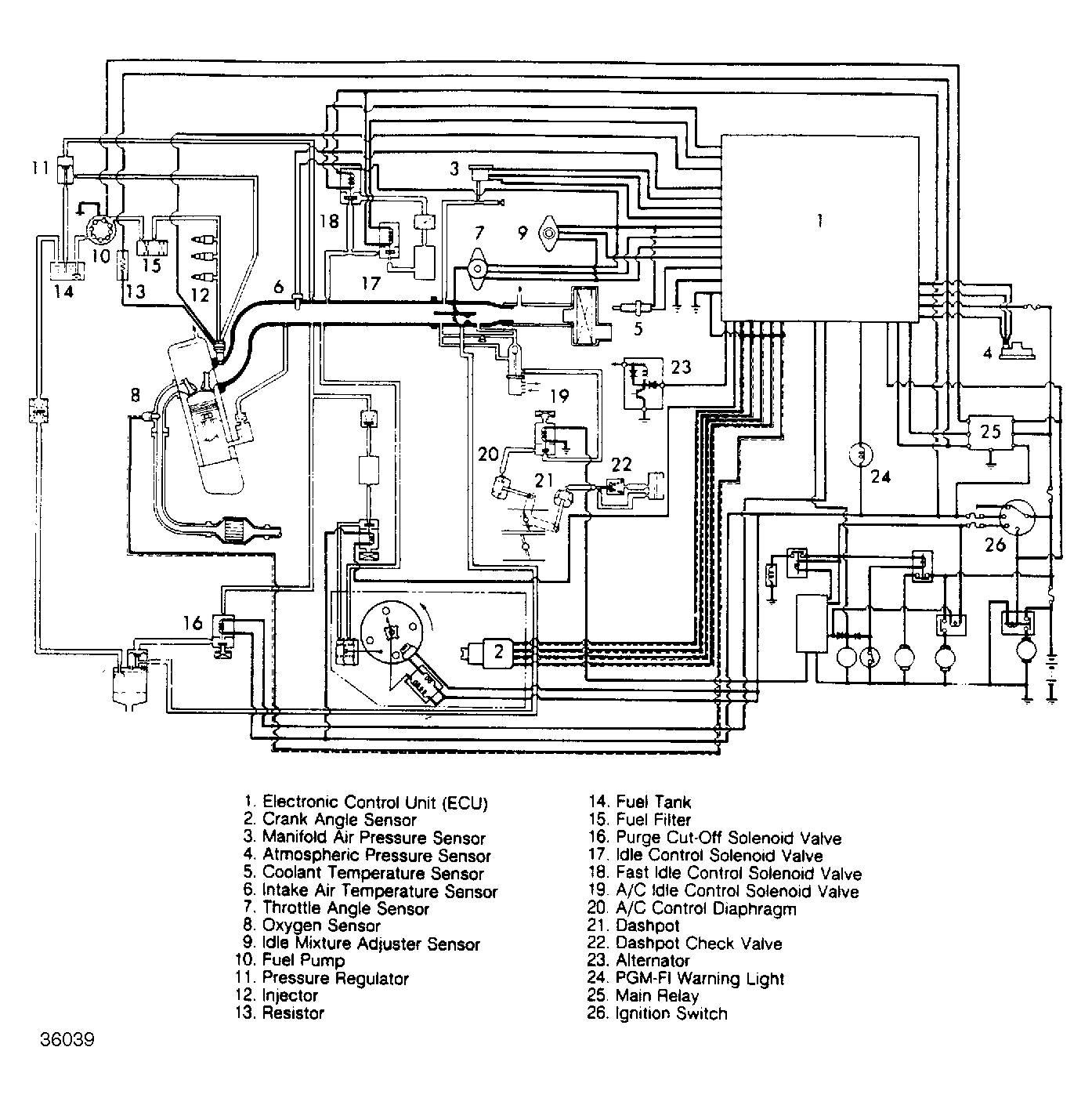

Fig 1: Typical PGM-FI Schematic

Courtesy of AMERICAN HONDA MOTOR CO., INC.
