Clutch Switch

Disconnect 2-pin connector from switch. Check for continuity between terminals "A" and "B" with clutch pedal released. There should be continuity. Depress clutch pedal. There should be no continuity between terminals "A" and "B". Adjust pedal height or replace switch as necessary.

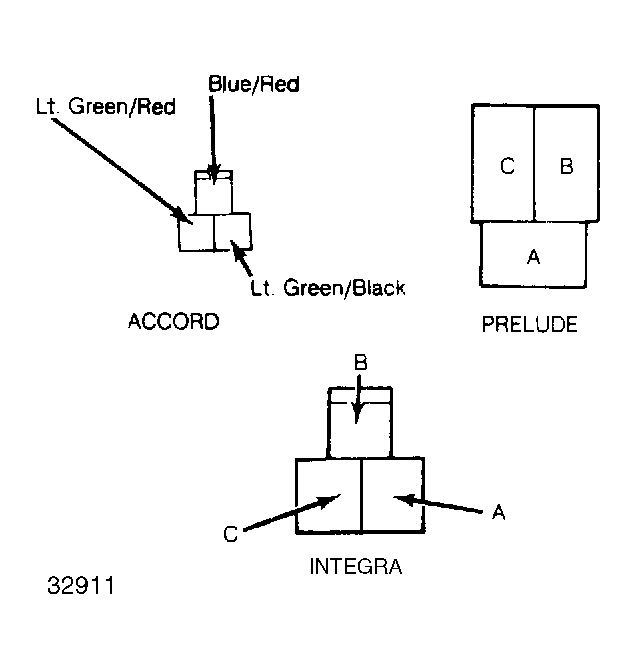

Fig 1: Testing Set/Resume Switch
G32911
