Codes 3 & 5 - Manifold Absolute Pressure Sensor

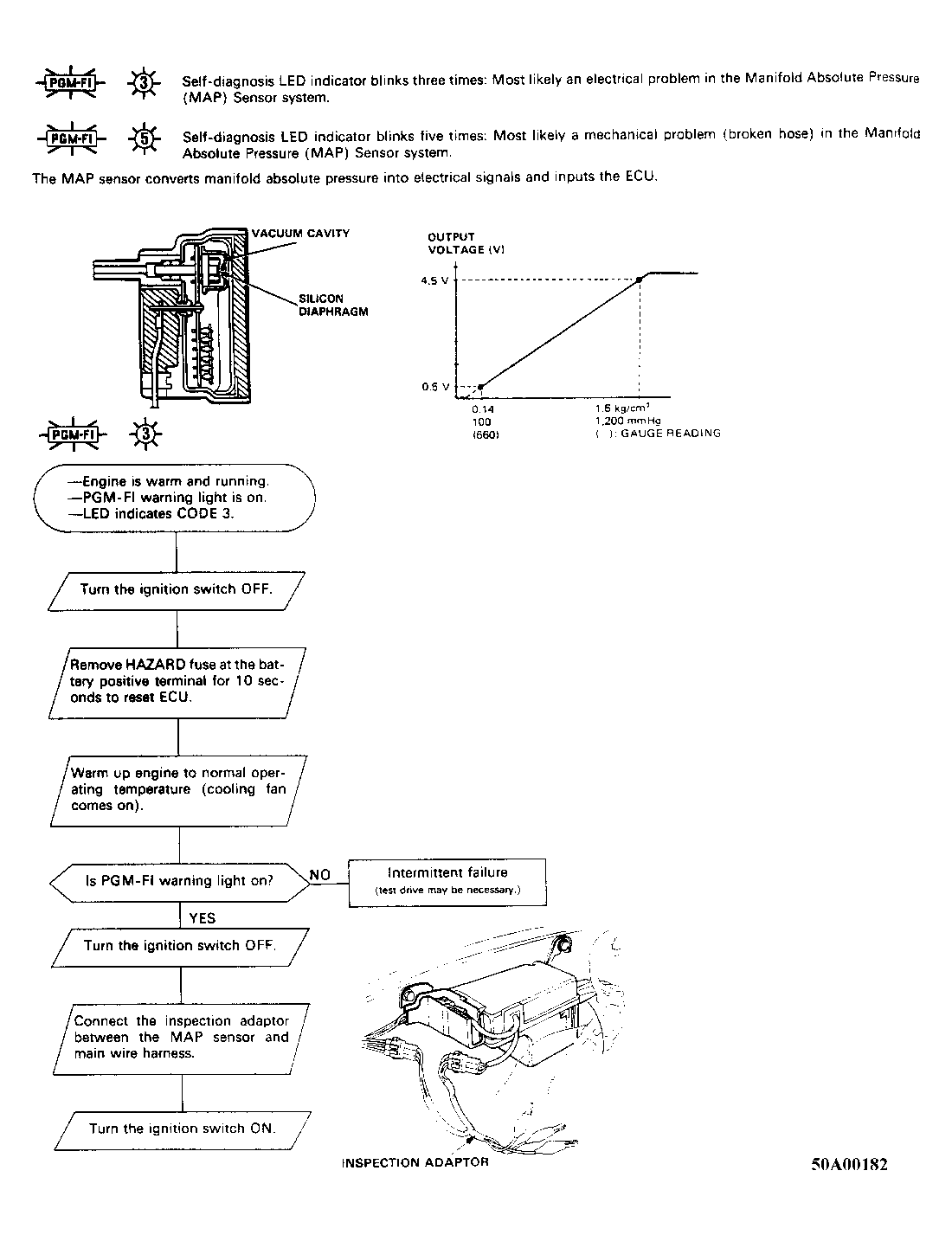

Fig 1: Code 3, Flowchart(1 of 4), Manifold Absolute Press (MAP) Sens

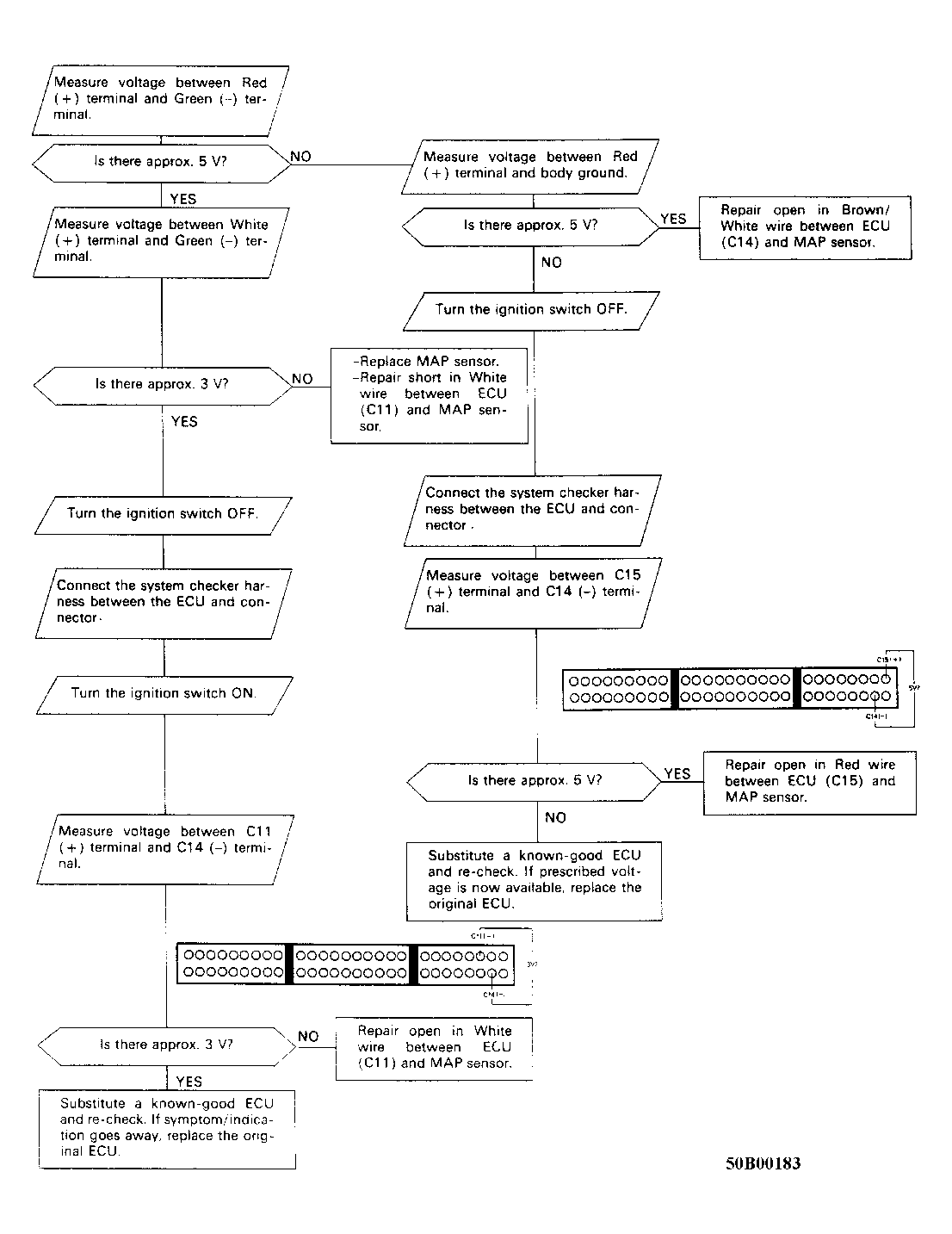

Fig 2: Code 3, Flowchart(2 of 4), Manifold Absolute Press(MAP) Sens

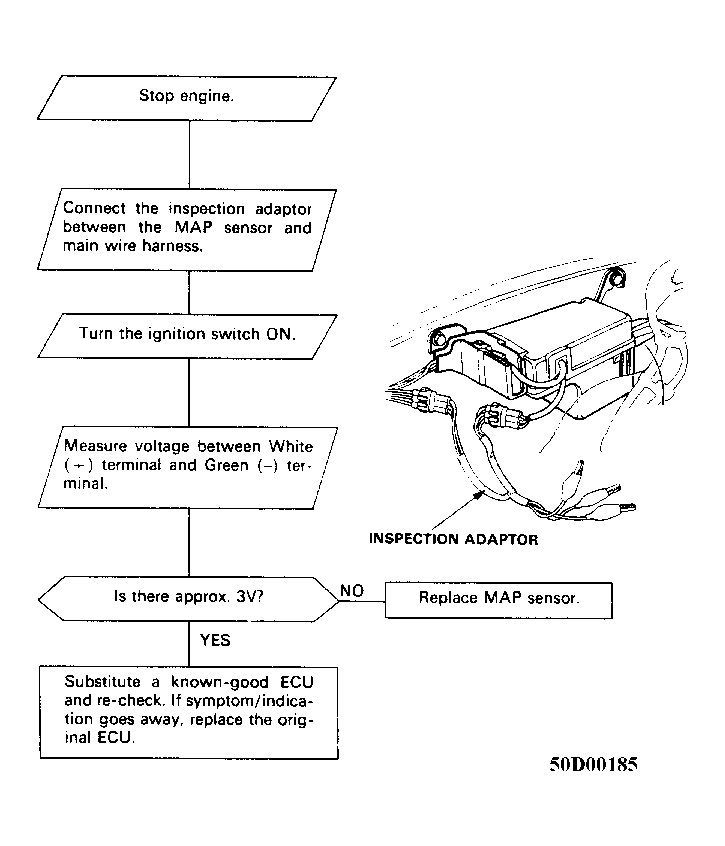

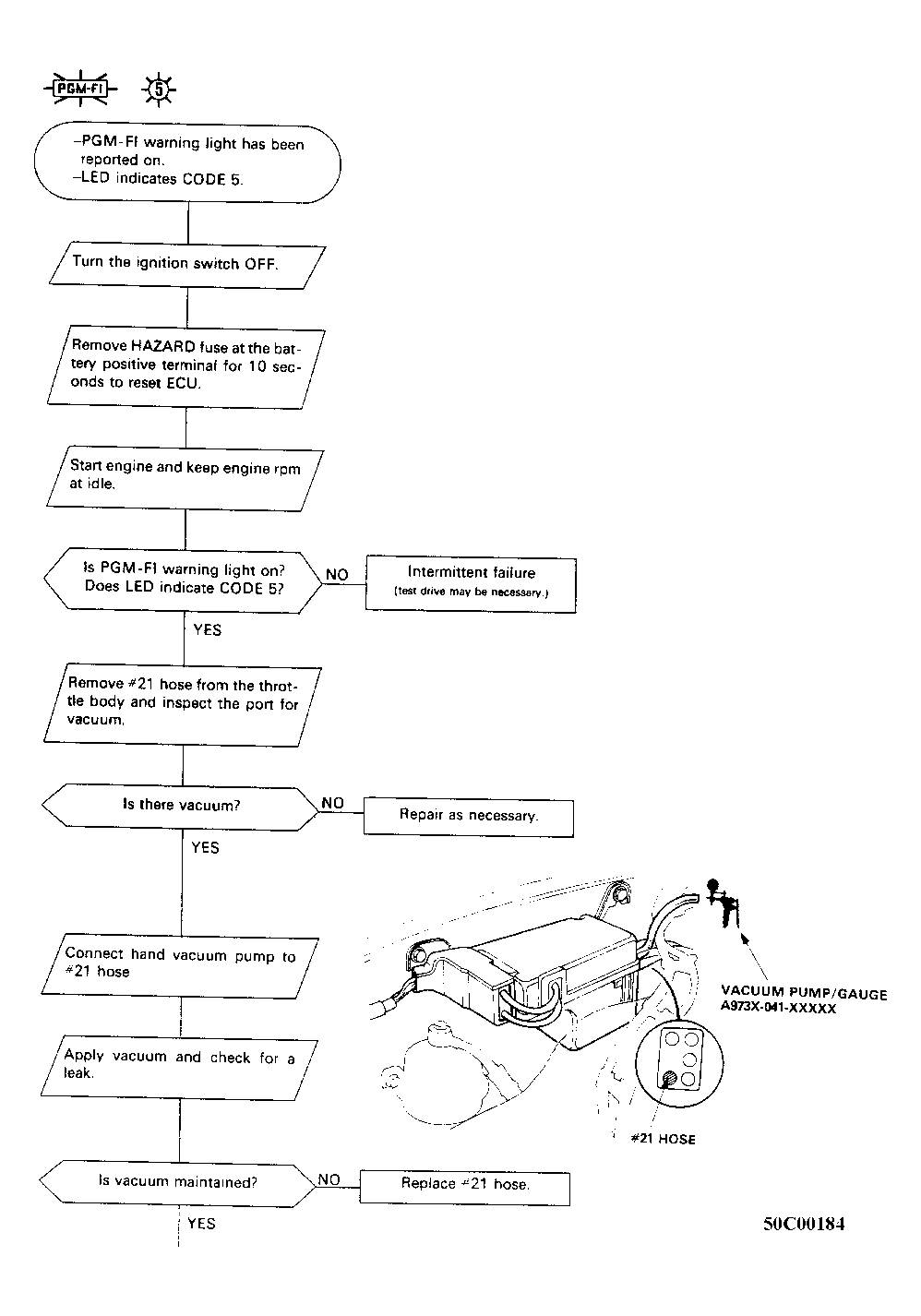

Fig 3: Code 5, Flowchart(3 of 4), Manifold Absolute Press(MAP) Sens

Fig 4: Code 5, Flowchart(4 of 4), Manifold Absolute Press(MAP) Sens
