EICV TROUBLESHOOTING FLOW CHART
TECHNICAL SERVICE BULLETIN
Reference Number(s): 86-005, Date of Issue:
September 8, 1986
EICV TROUBLESHOOTING FLOW CHART
APPLICATION
Model(s): 1986 Acura Integra
Group: Fuel And Emissions
Bulletin No.: 86-005
Date: September 8, 1986
SERVICE INFORMATION
An "action step" was omitted from the Electronic Idle Control Valve (EICV) Troubleshooting Flow Chart on page 11-40 of the 1986 Integra Service Manual.
The omission was the first step. "Connect the system checker harness between the ECU and connector (page 11-11)." The corrected flow chart is illustrated below. Please note the correction in your Service Manual.

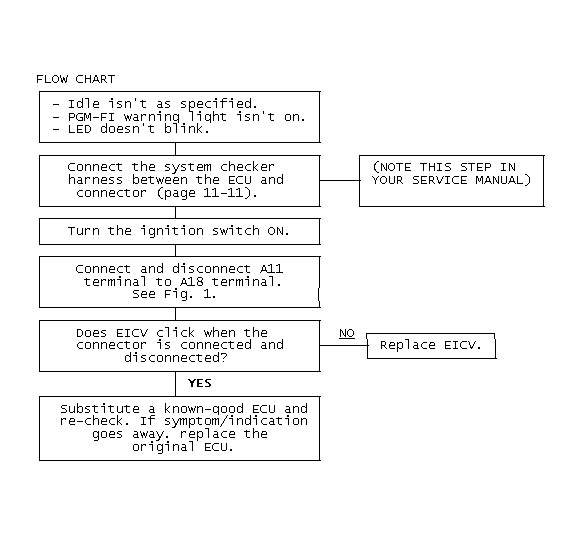

FLOW CHART
NOTE:
See Fig 2
for CORRECTED FLOW CHART.
