Repair and Diagnosis: Transmission: Clutches: Description

The clutch assembly is a single dry disc type. The clutch uses a diaphragm spring to engage the pressure plate. On Legend models, the clutch is hydraulically operated. See Fig 1 . The clutch operation on Integra models is mechanically performed with a clutch cable assembly.

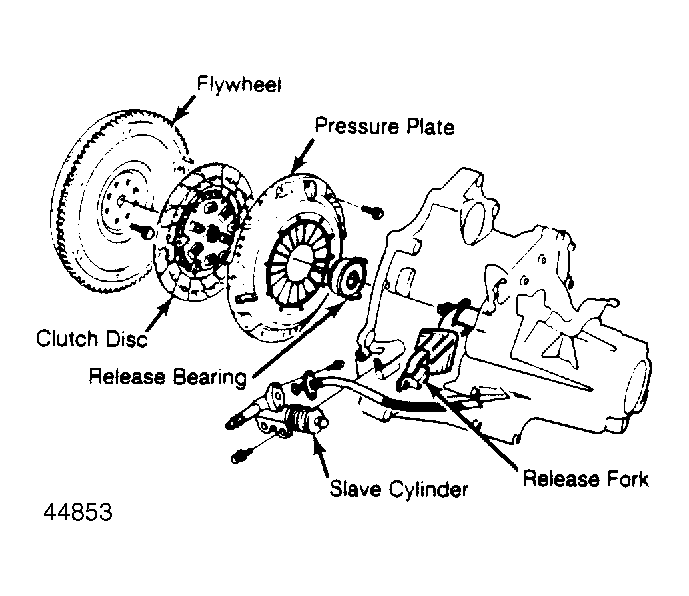

Fig 1: Exploded View of Legend Clutch Assembly Integra clutch assembly is similar. Courtesy of American Honda Motor Co., Inc.
