Ecu Flow Charts

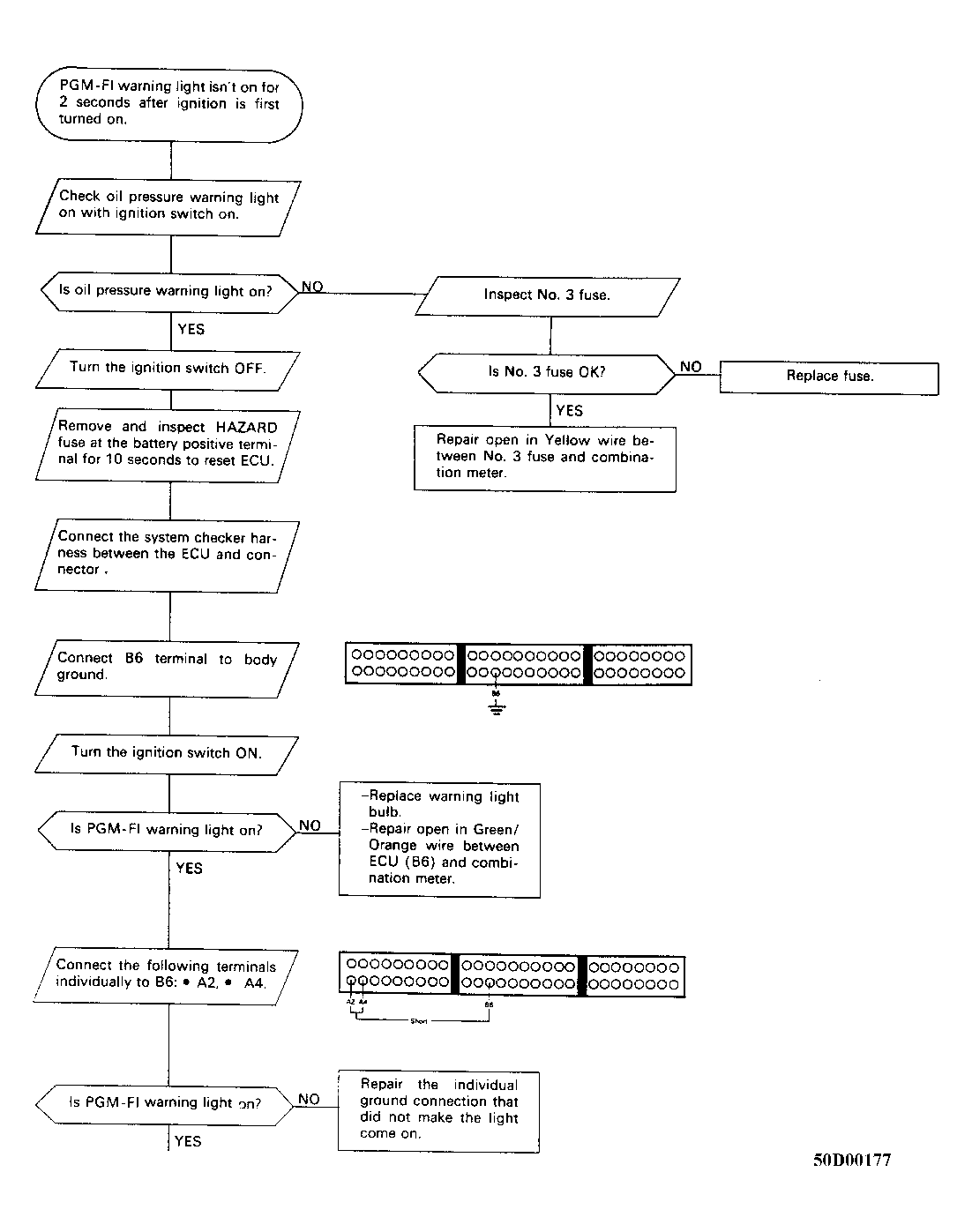

Fig 1: ECU, Flow Chart (1 of 3)

G50D00177

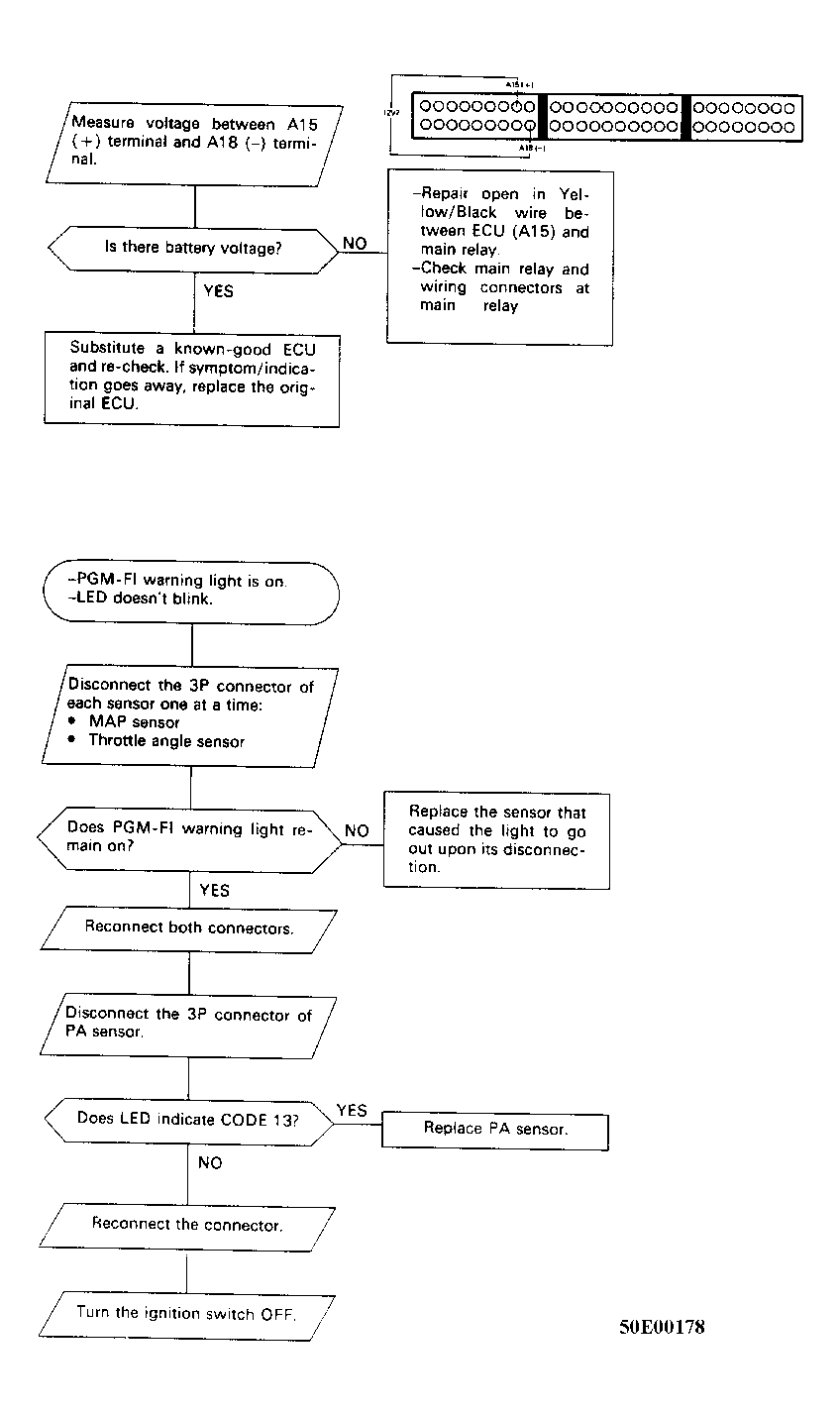

Fig 2: ECU, Flow Chart (2 of 3)

G50E00178

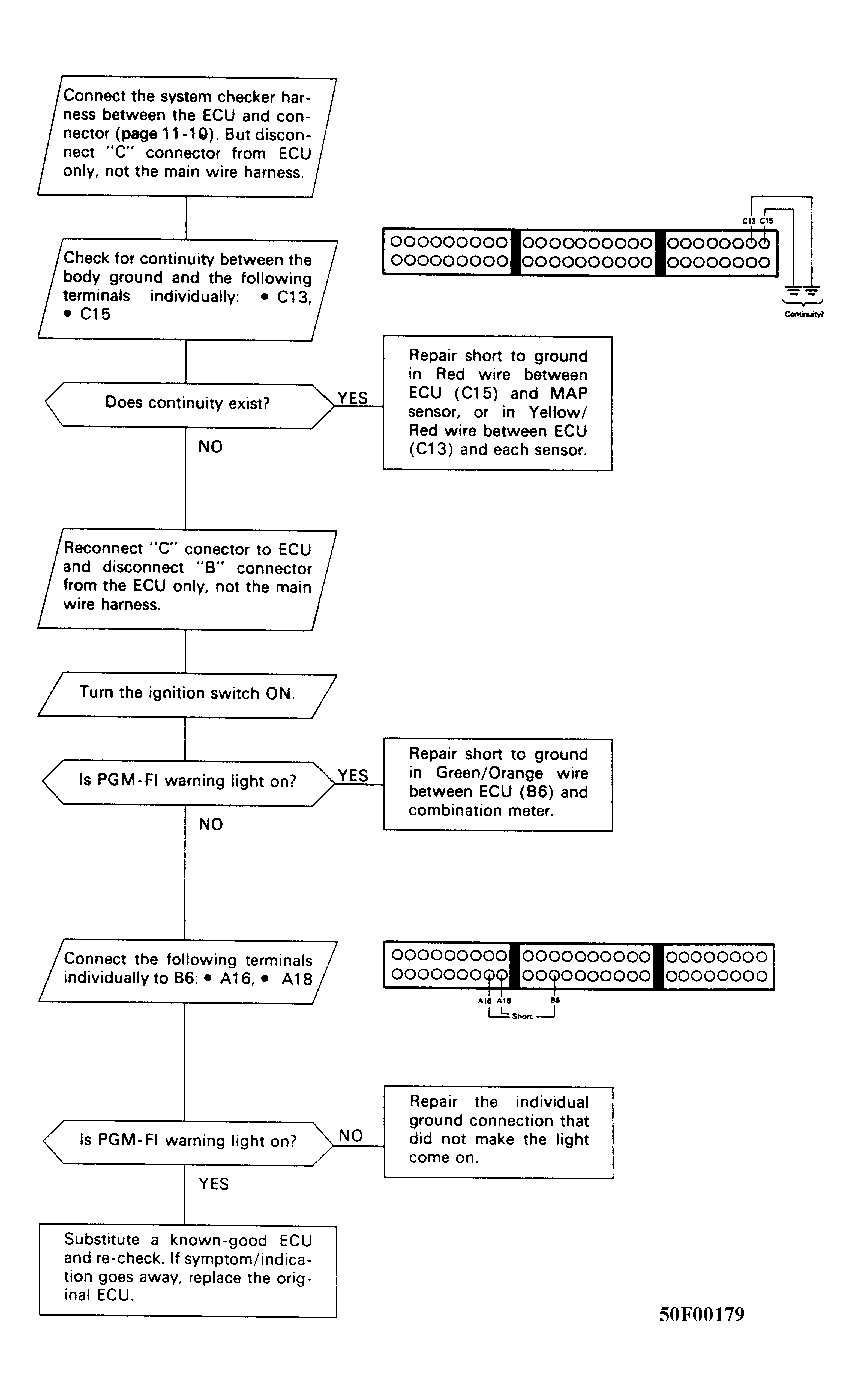

Fig 3: ECU, Flow Chart (3 of 3)

G50F00179
