Code 10 - Intake Air Temperature Sensor (Ta Sensor)

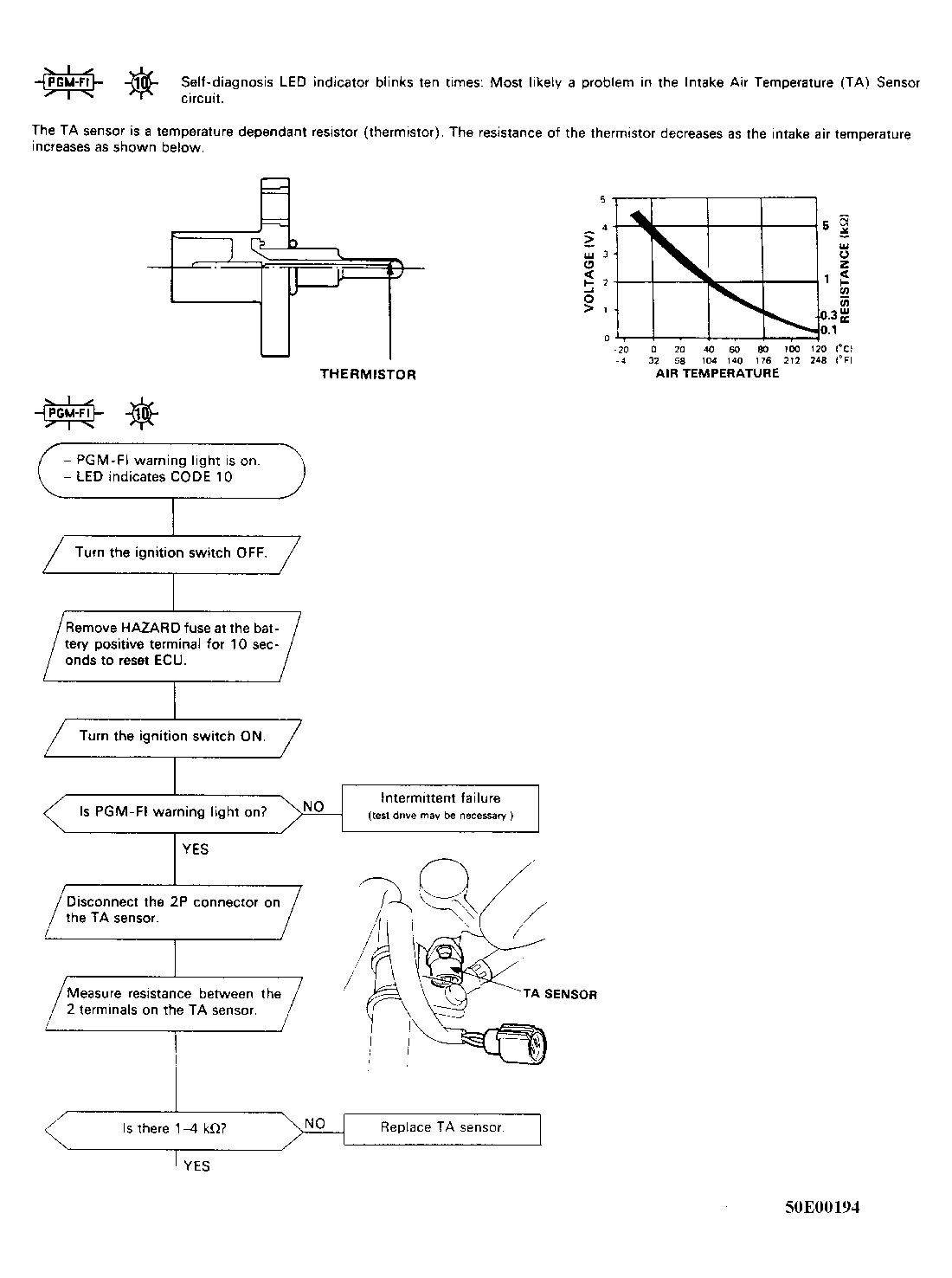

Fig 1: Code 10, TA Sensor, Flow Chart (1 of 2)

G50E00194

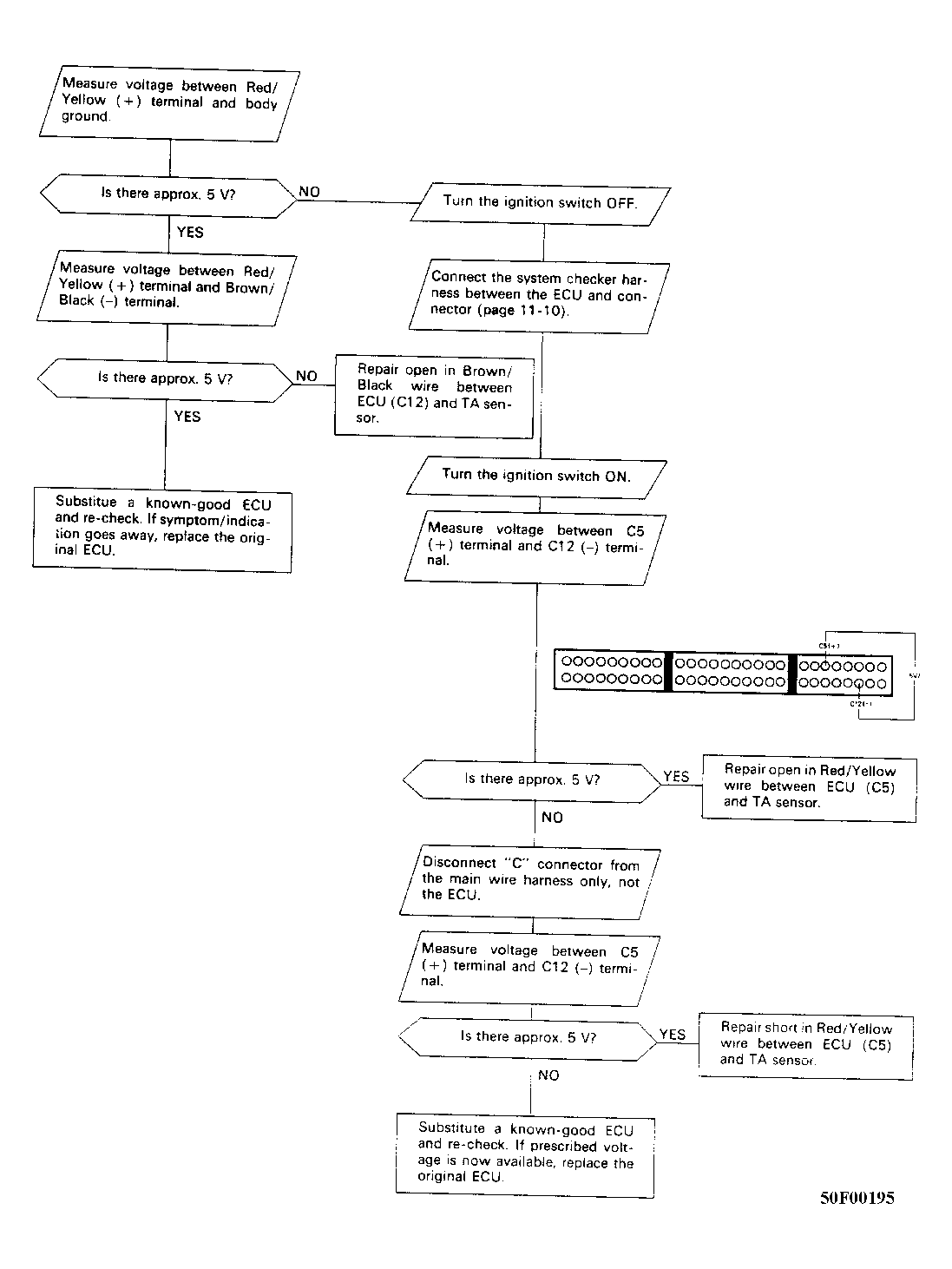

Fig 2: Code 10, TA Sensor, Flow Chart (2 of 2)

G50F00195
