Removal & Installation

REMOVAL

NOTE:

Removal steps in this procedure may contain installation details.

Remove airbag driver's side. Refer to: DRIVER'S AIRBAG

Courtesy of VOLVO CARS CORPORATION

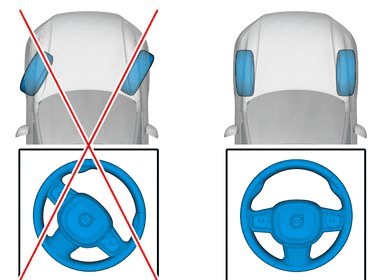

Turn the steering wheel into neutral position.

Courtesy of VOLVO CARS CORPORATION

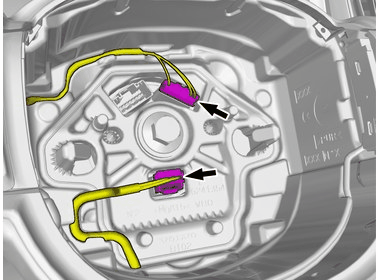

Disconnect the connectors.

Courtesy of VOLVO CARS CORPORATION

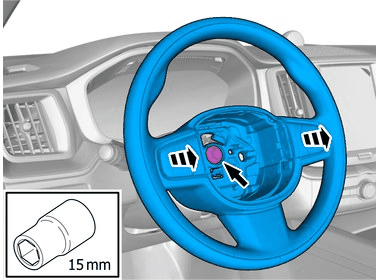

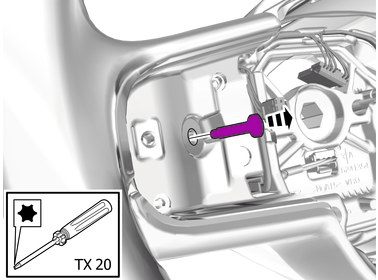

Loosen the screws.

Torque: Steering wheel to steering column (center screw), 60 Nm

Remove the marked part.

TRANSFERRING COMPONENTS

Courtesy of VOLVO CARS CORPORATION

NOTE:

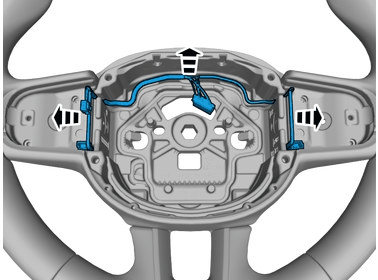

The graphic shows the back of the component before removal.

Courtesy of VOLVO CARS CORPORATION

Repeat on the other side.

Courtesy of VOLVO CARS CORPORATION

Repeat on the other side.

Courtesy of VOLVO CARS CORPORATION

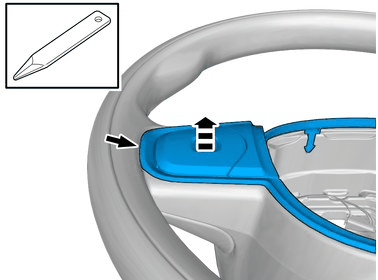

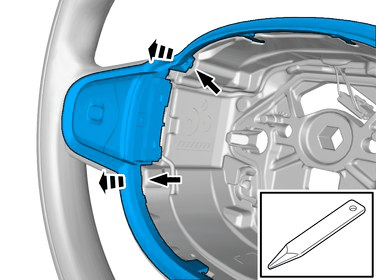

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

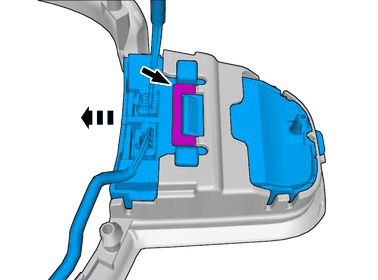

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

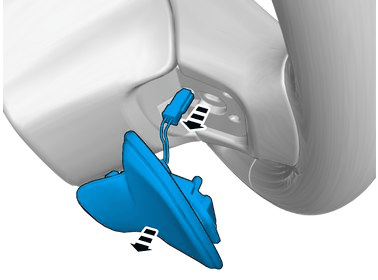

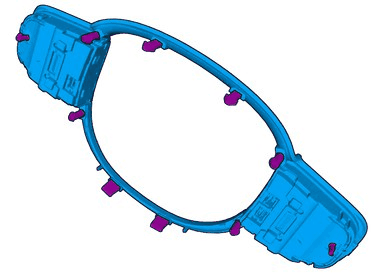

Remove the marked part.

Repeat on the other side.

Courtesy of VOLVO CARS CORPORATION

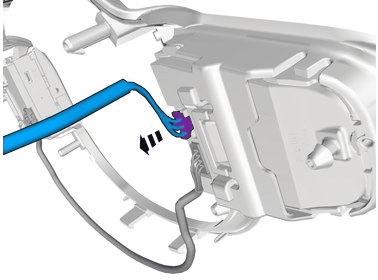

Disconnect the connector.

Repeat on the other side.

Courtesy of VOLVO CARS CORPORATION

Remove the screw.

Repeat on the other side.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

Repeat on the other side.

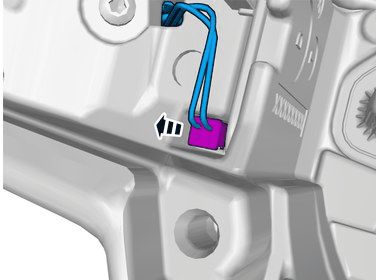

Courtesy of VOLVO CARS CORPORATION

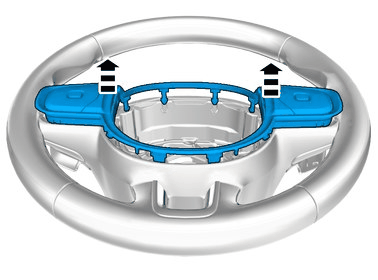

Remove the marked part.

INSTALLATION

To install, reverse the removal procedure.
