Removing the variable valve timing solenoid

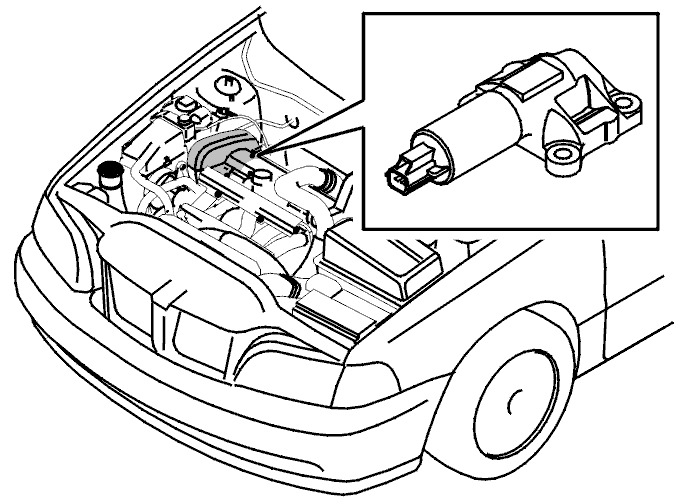

Fig 1: Identifying Variable Valve Timing (VVT) Control Valve
GLL101021Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the upper timing belt cover.

NOTE:

Clean the area around the variable valve timing (VVT) solenoid thoroughly to avoid contaminated oil entering the ducts / the variable valve timing (VVT) unit.

Remove:
