Installing the track rod ends on the steering arms

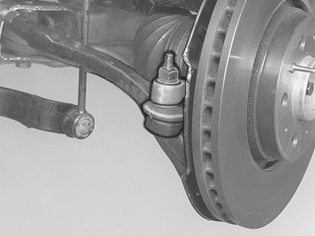

Fig 1: Identifying Steering Arm Track Rod End

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the track rod ends on the steering arms. Use new nuts.

Tighten the steering arm on the wheel spindle. Tightening torque

Install:

• the splash guard under the engine
• the wheels. See Installing wheels .
