Electronic Throttle Module ETM, V70 Connector End View (4/50)

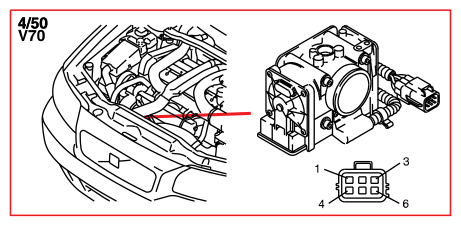

Fig 1: Electronic Throttle Module ETM, V70 Connector End View (4/50)

G10908920

Courtesy of VOLVO CARS CORPORATION
