Exhaust Manifold: Components: Illustration

WARNING: This page is about a different variant/trim than selected.
Fig 1: Identifying Exhaust Manifold Replacement Components With Torque Specifications (1 Of 2)
GTY215655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

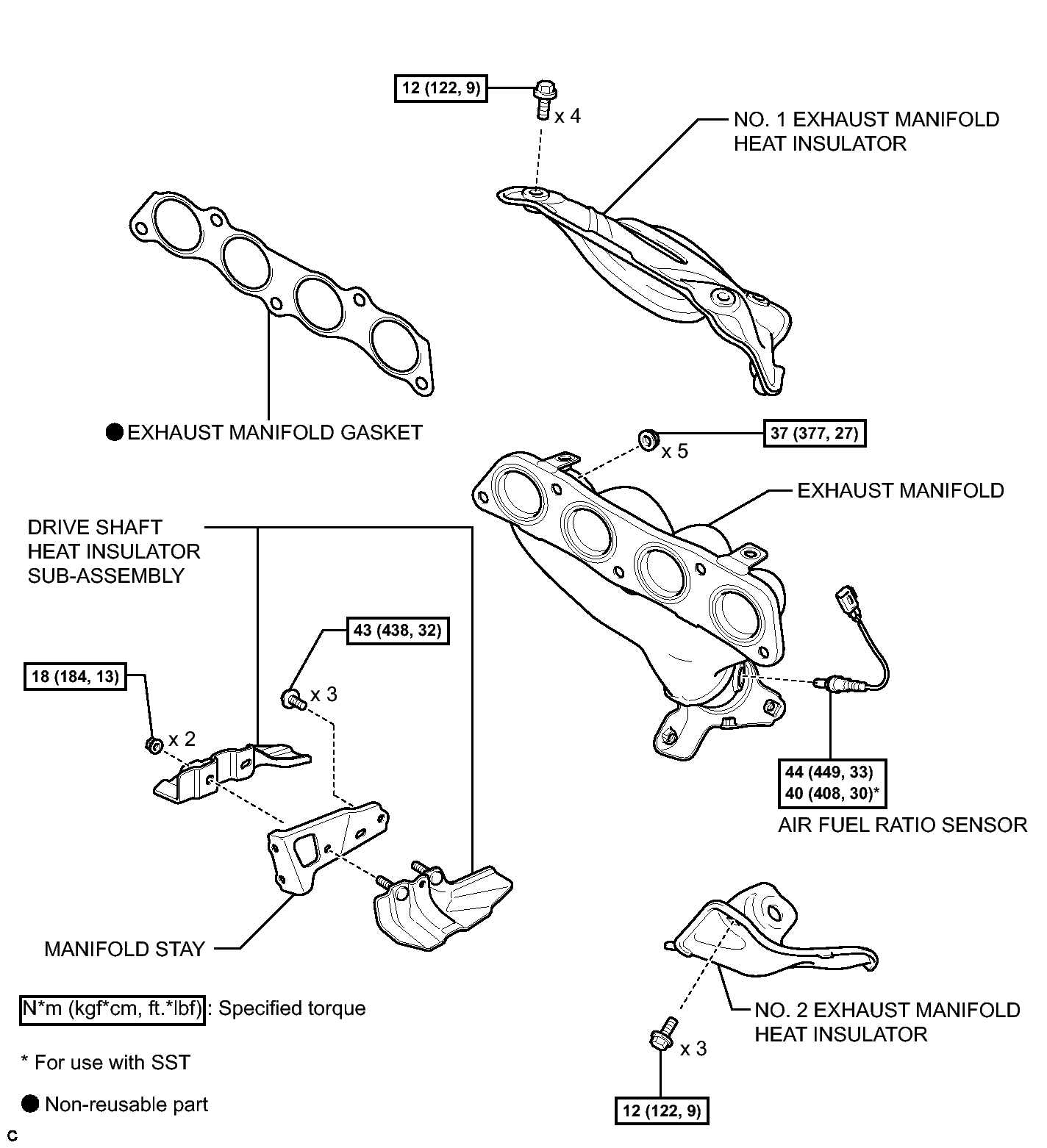

Fig 1: Identifying Exhaust Manifold Replacement Components With Torque Specifications (2 Of 2)
GTY293073Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
