Fuel Pressure Regulator: Components: Illustration

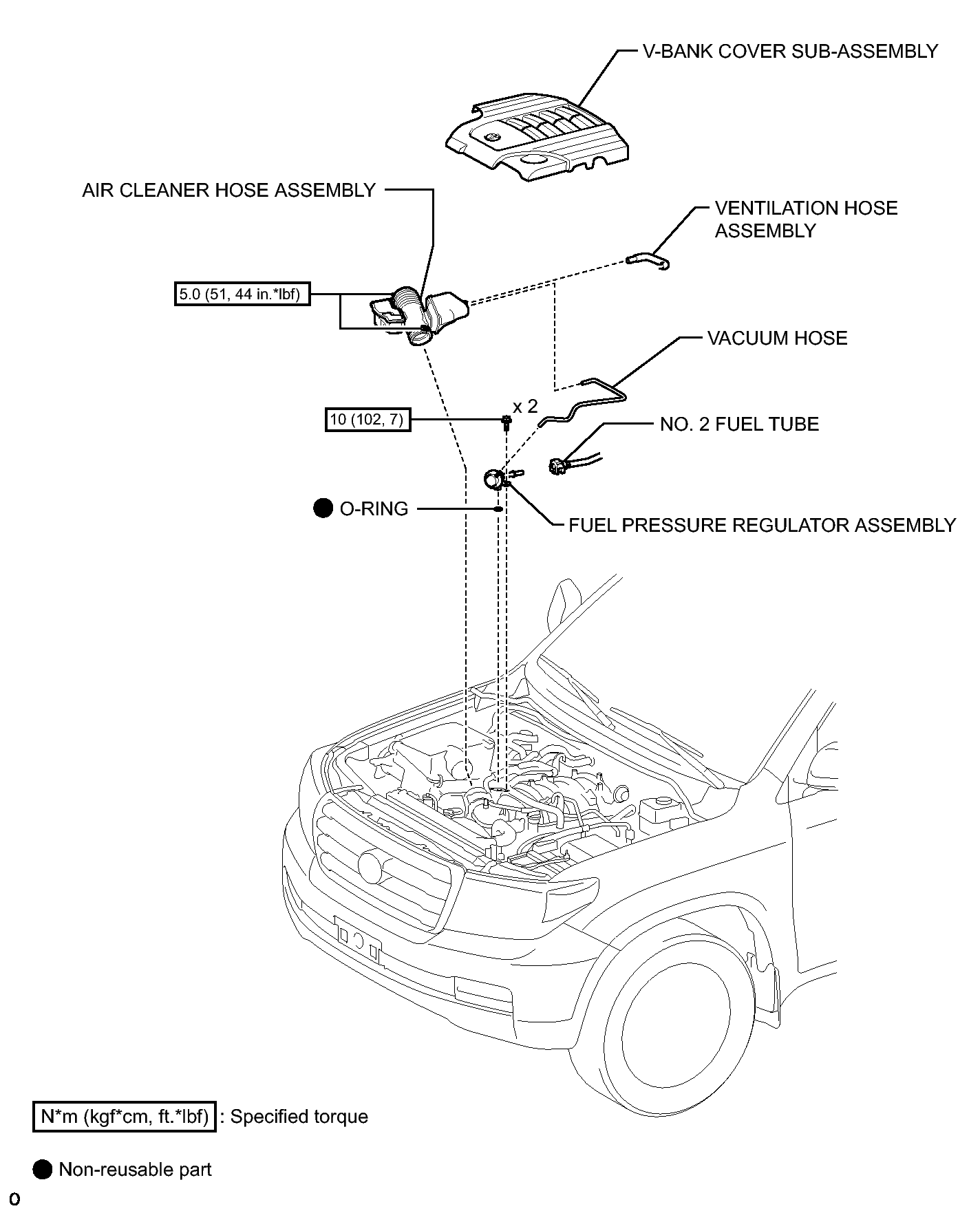

Fig 1: Identifying Fuel Pressure Regulator Components With Torque Specification

GTY238000

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
