Power Window Control System
>>
Parts Location
>>
Illustration
Parts Location: Illustration

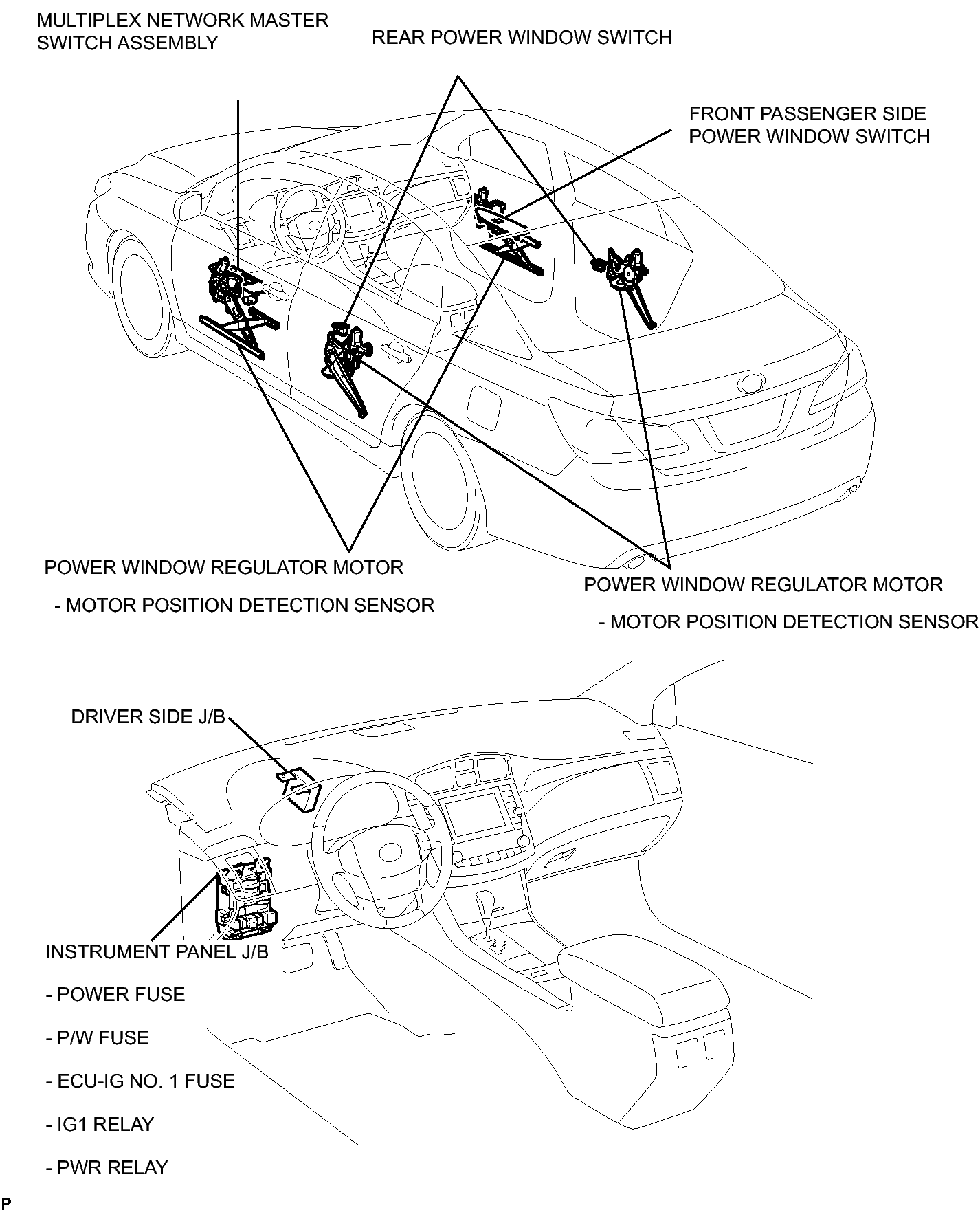

Fig 1: Identifying Power Window Control System Components Location
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
