Emission Control System (1GR-FE) (Service Information): Canister: Components: Illustration

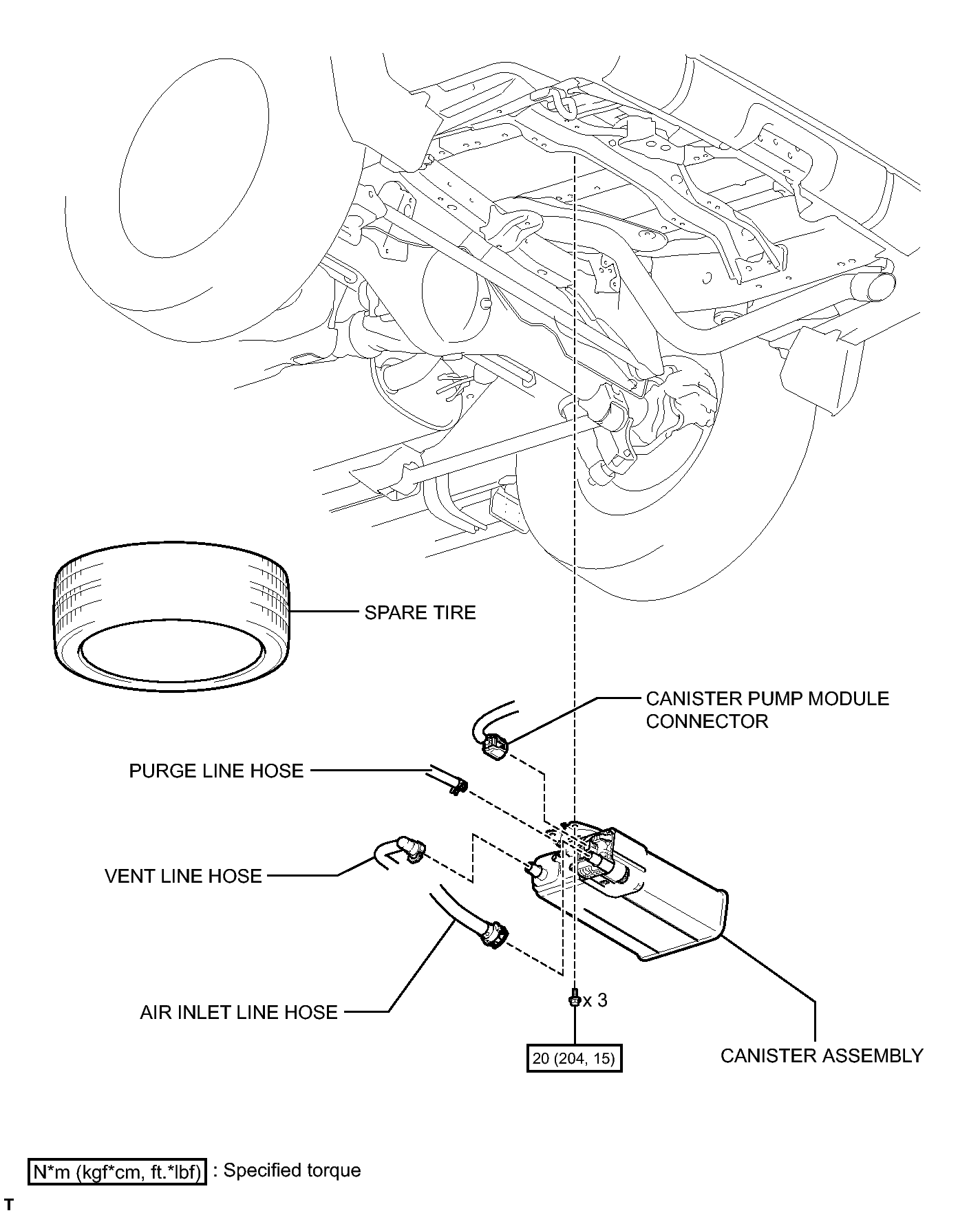

Fig 1: Identifying Canister Replacement Components With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
