REAR SPEED SENSOR (for 4WD): Installation: Installation

HINT:

Use the same procedure for RH side and LH side except for the step to install the rear sensor clip.
If the sensor rotor needs to be replaced, replace it together with the rear drive shaft assembly.

INSTALL REAR SPEED SENSOR LH (for LH Side)
1. Install the rear speed sensor with bolt C.

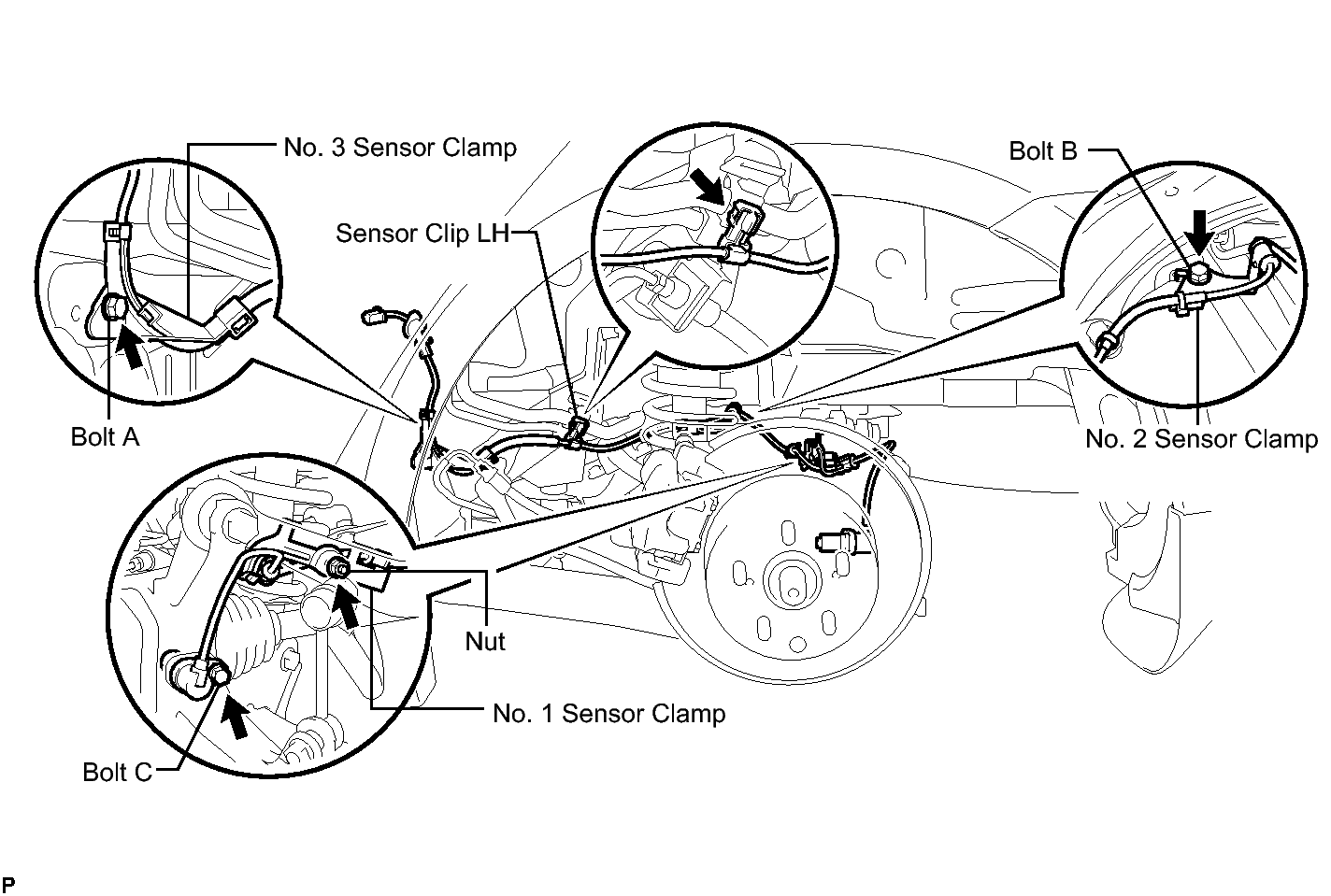

  Fig 1: Locating Sensor Clamps And Bolts (LH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  NOTE:
  Keep the rear speed sensor tip and sensor installation hole free of foreign matter.
2. Install the No. 1 sensor clamp with the nut.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  NOTE:
  Do not twist the rear speed sensor wire when installing the clamp.
3. Install the No. 2 sensor clamp with bolt B.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  NOTE:
  Do not twist the rear speed sensor wire when installing the clamp.
4. Install the sensor clip LH.
5. Install the No. 3 sensor clamp with bolt A.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  NOTE:
  Do not twist the rear speed sensor wire when installing the clamp.
6. Insert the connector and grommet to the inside of the vehicle through the passage hole in the wheel well.
  NOTE:
  Make sure that the grommet's band clamp remains on the outside of the vehicle.
7. Hold the grommet and pull it from the inside of the vehicle to the outside of the vehicle. Then hold it in place so that it is not tilted.
  NOTE:
  When pulling out the grommet, do not pull on the sensor wire.
8. Connect the rear speed sensor connector.

  Fig 2: Locating Rear Speed Sensor Wire And Grommet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SPEED SENSOR RH (for RH Side)
1. Install the rear speed sensor with bolt C.

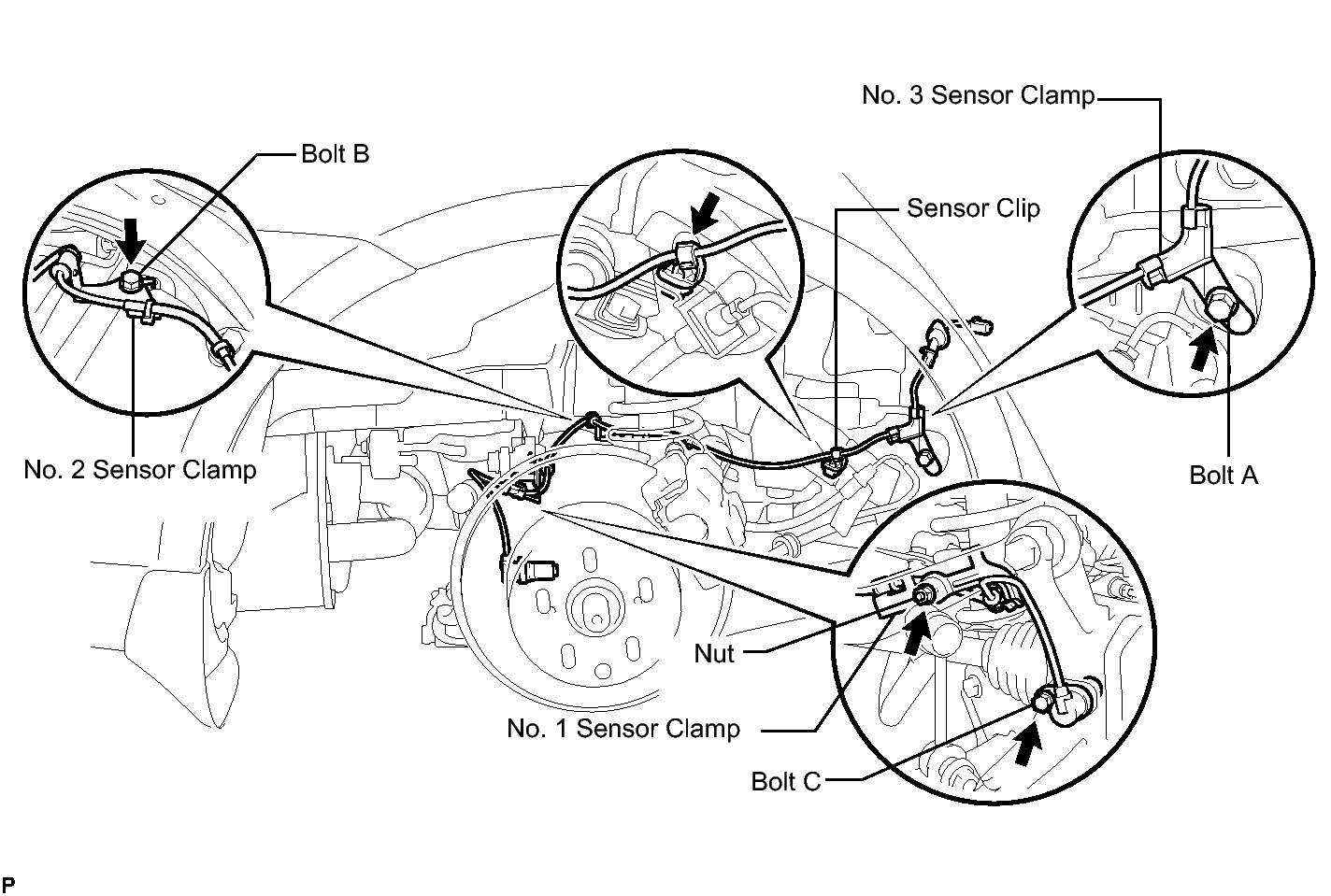

  Fig 3: Locating Sensor Clamps And Bolts (RH)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

  NOTE:
  Keep the rear speed sensor tip and sensor installation hole free of foreign matter.
2. Install the No. 1 sensor clamp with the nut.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

  NOTE:
  Do not twist the rear speed sensor wire when installing the clamp.
3. Install the No. 2 sensor clamp with bolt B.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  NOTE:
  Do not twist the rear speed sensor wire when installing the clamp.
4. Install the sensor clip.
5. Install the No. 3 sensor clamp with bolt A.
  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

  NOTE:
  Do not twist the rear speed sensor wire when installing the clamp.
6. Insert the connector and grommet to the inside of the vehicle through the passage hole in the wheel well.
  NOTE:
  Make sure that the grommet's band clamp remains on the outside of the vehicle.
7. Hold the grommet and pull it from the inside of the vehicle to the outside of the vehicle. Then hold it in place so that it is not tilted.
  NOTE:
  When pulling out the grommet, do not pull on the sensor wire.
8. Connect the rear speed sensor connector.
INSTALL FUEL TANK FILLER PIPE PROTECTOR (for LH Side)
1. Install the fuel tank filler pipe protector with the 3 screws.

  Fig 4: Locating Fuel Tank Filler Pipe Protector Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR WHEEL
Torque: 103 N*m (1050 kgf*cm, 76 ft.*lbf)
INSTALL REAR SEAT SIDE GARNISH RH (for RH Side) . Refer to INSTALLATION - Step 39
INSTALL REAR SEATBACK HINGE SUB-ASSEMBLY (for RH Side) . Refer to INSTALLATION - Step 40
INSTALL REAR SEAT SIDE GARNISH LH (for LH Side) . Refer to INSTALLATION - Step 29
INSTALL REAR SEATBACK HINGE SUB-ASSEMBLY (for LH Side) . Refer to INSTALLATION - Step 30
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH (for RH Side) . Refer to INSTALLATION - Step 72
INSTALL REAR DOOR SCUFF PLATE RH (for RH Side) . Refer to INSTALLATION - Step 73
INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH (for LH Side) . Refer to INSTALLATION - Step 66
INSTALL REAR DOOR SCUFF PLATE LH (for LH Side) . Refer to INSTALLATION - Step 67
INSTALL REAR SEATBACK ASSEMBLY RH . Refer to INSTALLATION - Step 1
INSTALL REAR SEATBACK INNER HINGE COVER (for RH Side) . Refer to INSTALLATION - Step 2
INSTALL REAR SEATBACK OUTER HINGE COVER (for RH Side) . Refer to INSTALLATION - Step 3
CONNECT REAR SEAT CENTER OUTER BELT ASSEMBLY . Refer to INSTALLATION - Step 42
INSTALL REAR SEAT CENTER HEADREST ASSEMBLY
INSTALL REAR SEAT HEADREST ASSEMBLY (for RH Side)
INSTALL REAR SEATBACK ASSEMBLY LH . Refer to INSTALLATION - Step 7
INSTALL REAR SEATBACK INNER HINGE COVER (for LH Side) . Refer to INSTALLATION - Step 8
INSTALL REAR SEATBACK OUTER HINGE COVER (for LH Side) . Refer to INSTALLATION - Step 9
INSTALL REAR SEAT HEADREST ASSEMBLY (for LH Side)
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
CHECK FOR REAR SPEED SENSOR SIGNAL
HINT:
- w/o VSC . Refer to TEST MODE PROCEDURE
- w/ VSC . Refer to TEST MODE PROCEDURE
