OEM System Circuits: Illumination: Notes

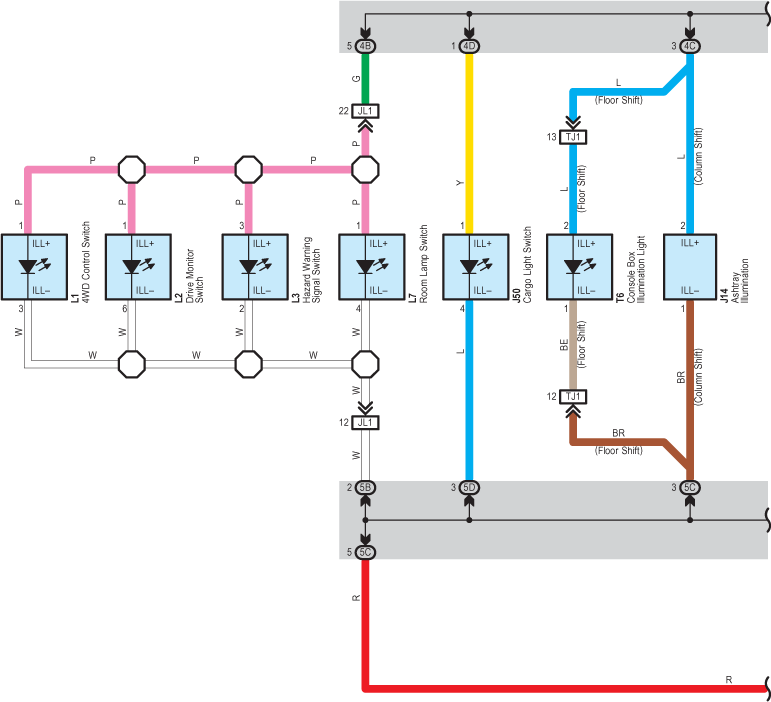

Fig 1: Illumination - Circuit Diagram (1 Of 6)

G07624230

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

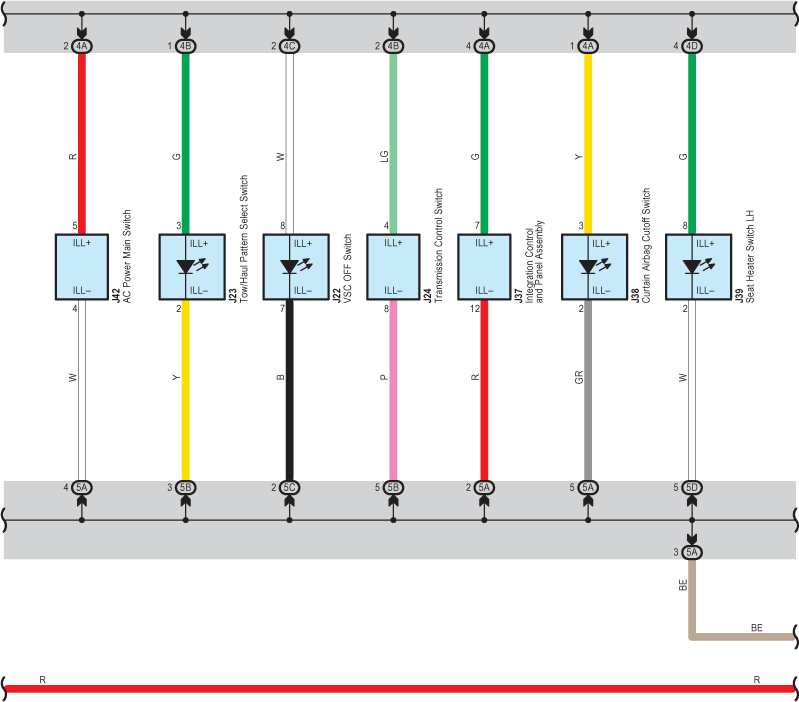

Fig 2: Illumination - Circuit Diagram (2 Of 6)

G07624231

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

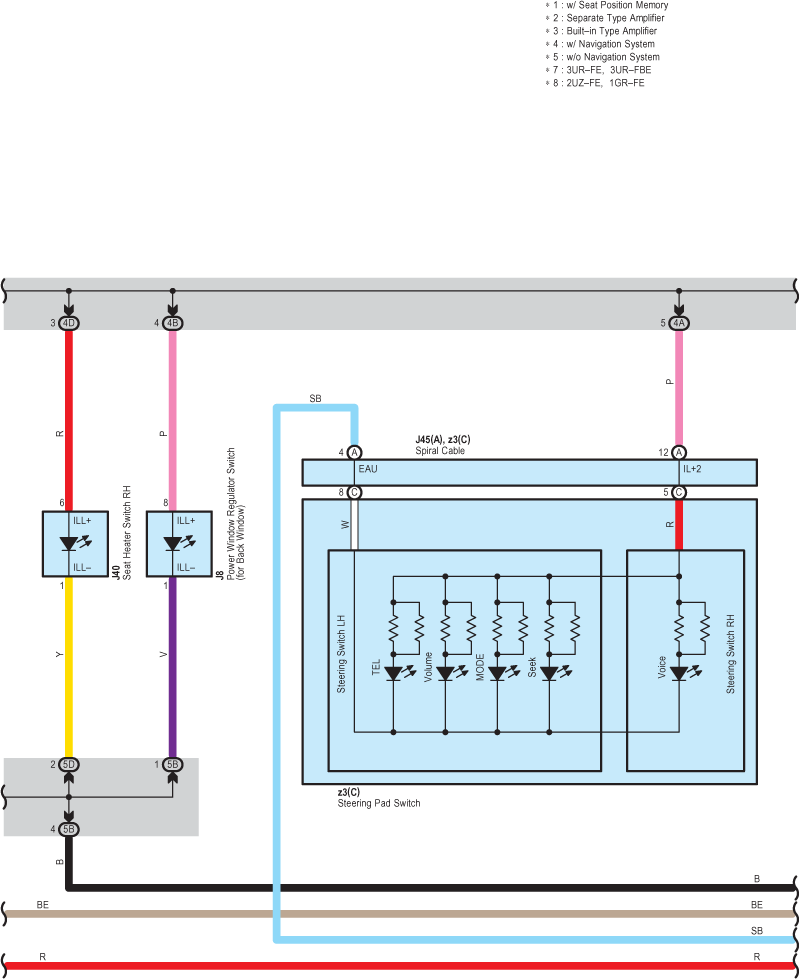

Fig 3: Illumination - Circuit Diagram (3 Of 6)

G07624232

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Illumination - Circuit Diagram (4 Of 6)

G07624233

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

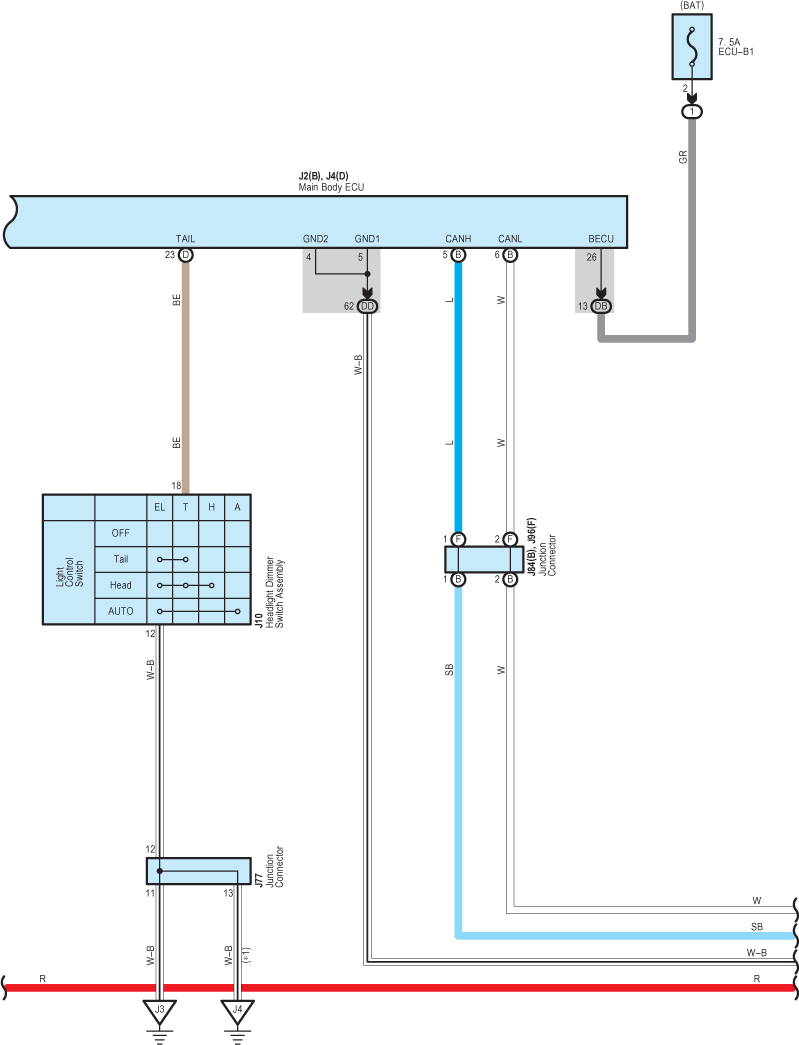

Fig 5: Illumination - Circuit Diagram (5 Of 6)

G07624234

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

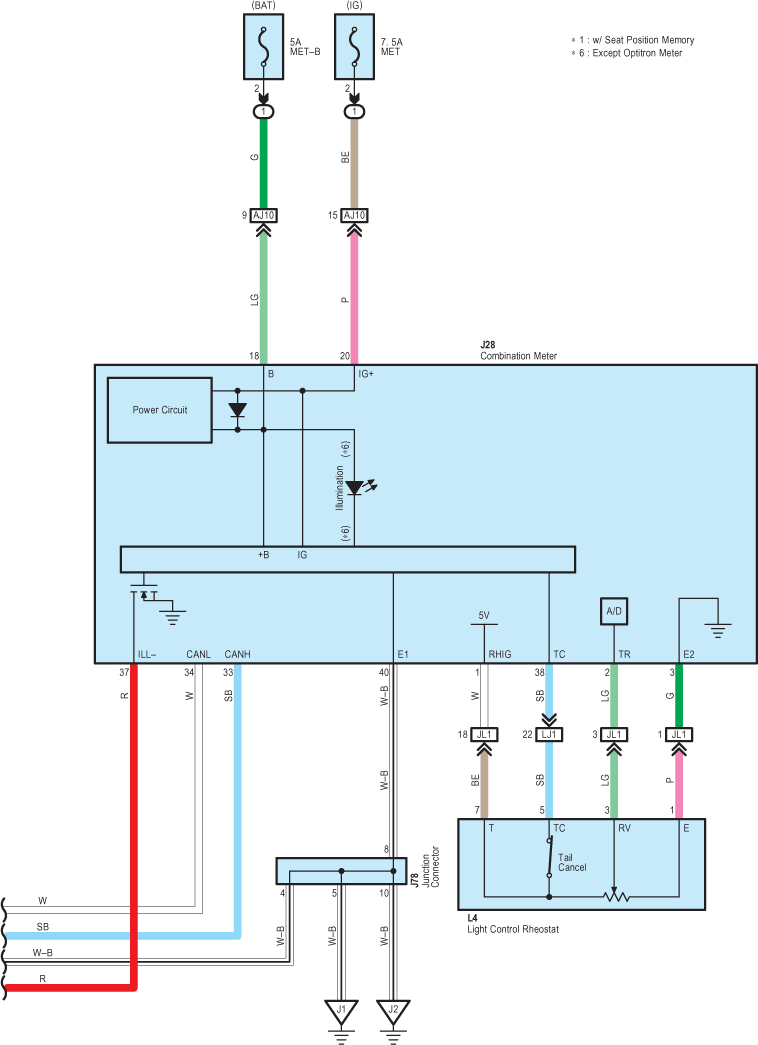

Fig 6: Illumination - Circuit Diagram (6 Of 6)

G07624235

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
