Parts Location

WARNING: This page is about a different car, the 2006 Toyota Land Cruiser. However, it is still accessible from the selected car via links, so may be relevant.

(2005/05-2006/01)

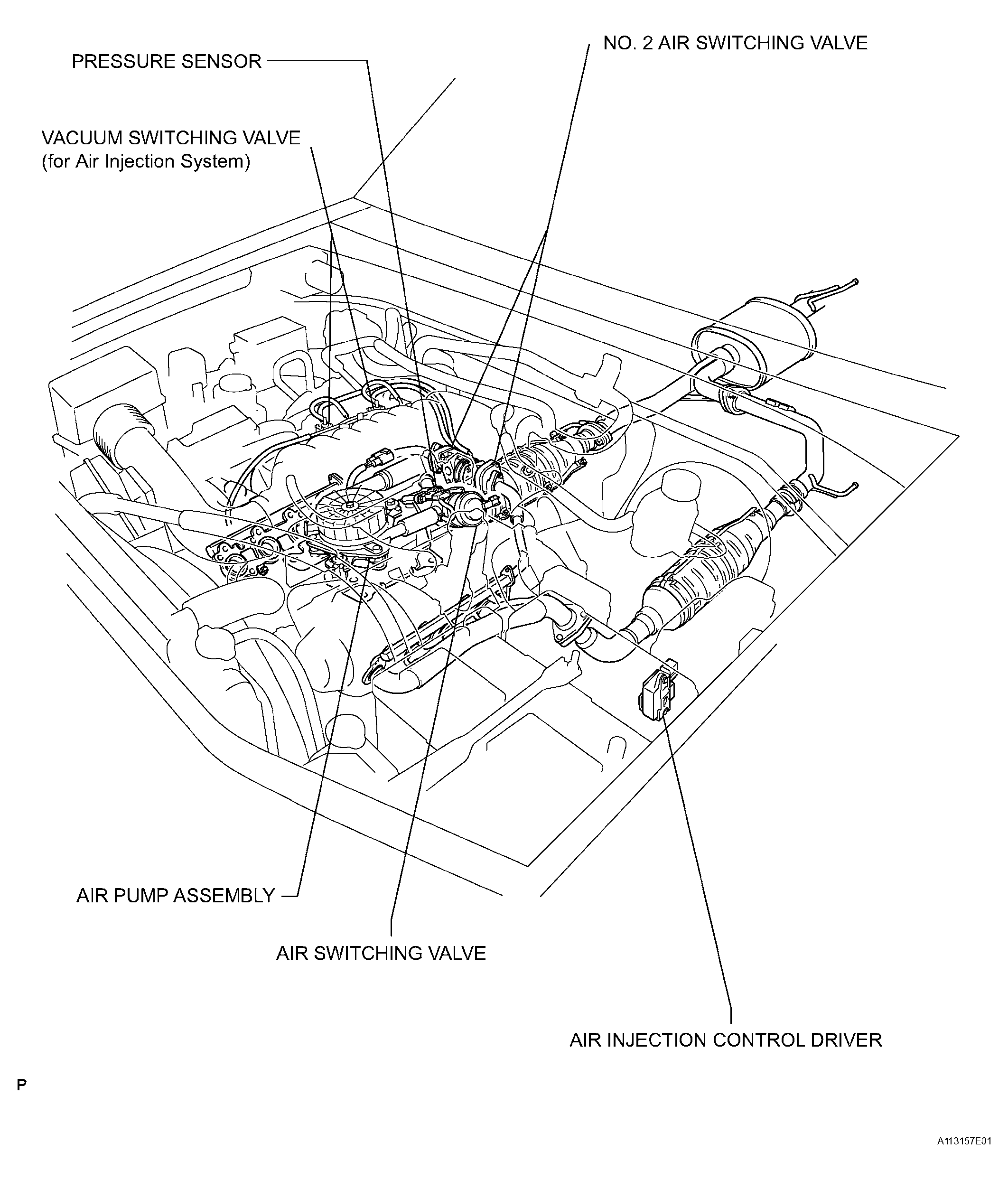

Fig 1: Identifying Emission Control System Components Location - (2005/05-2006/01) (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

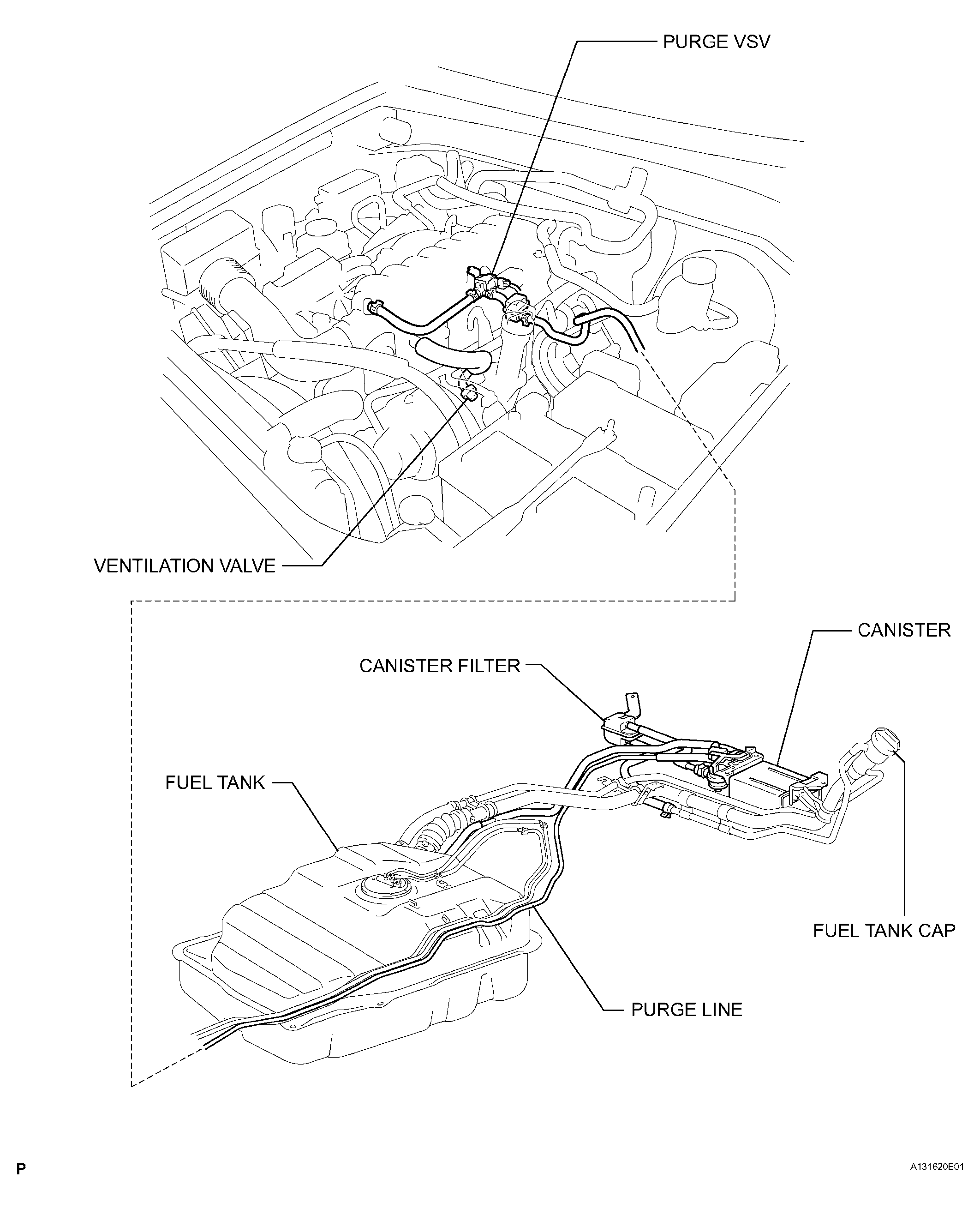

Fig 2: Identifying Emission Control System Components Location - (2005/05-2006/01) (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

(2006/01-)

Fig 1: Identifying Emission Control System Components Location - (2006/01-) (1 Of 2)

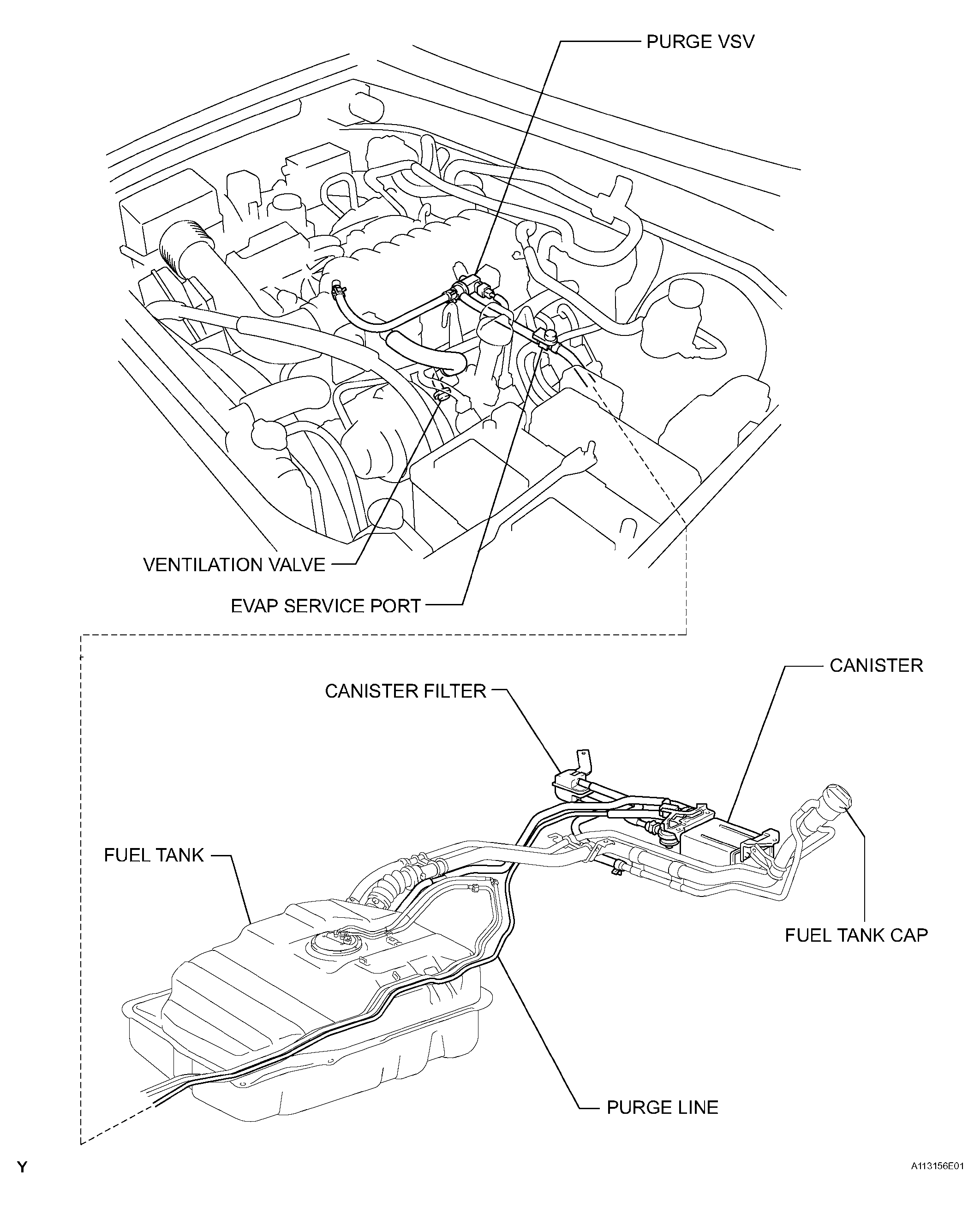

Fig 2: Identifying Emission Control System Components Location - (2006/01-) (2 Of 2)
