Navigation and Parking Assist (Rear View Monitor): Notes

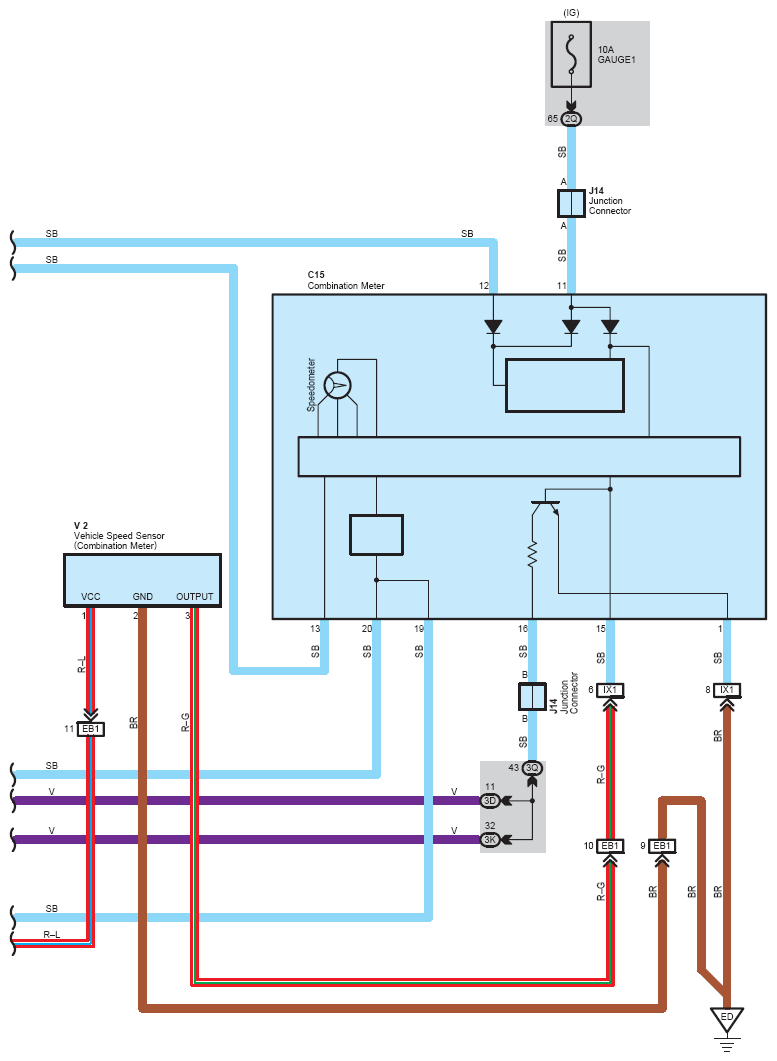

Fig 1: Navigation And Parking Assist System (Rear View Monitor) Wiring Diagram (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

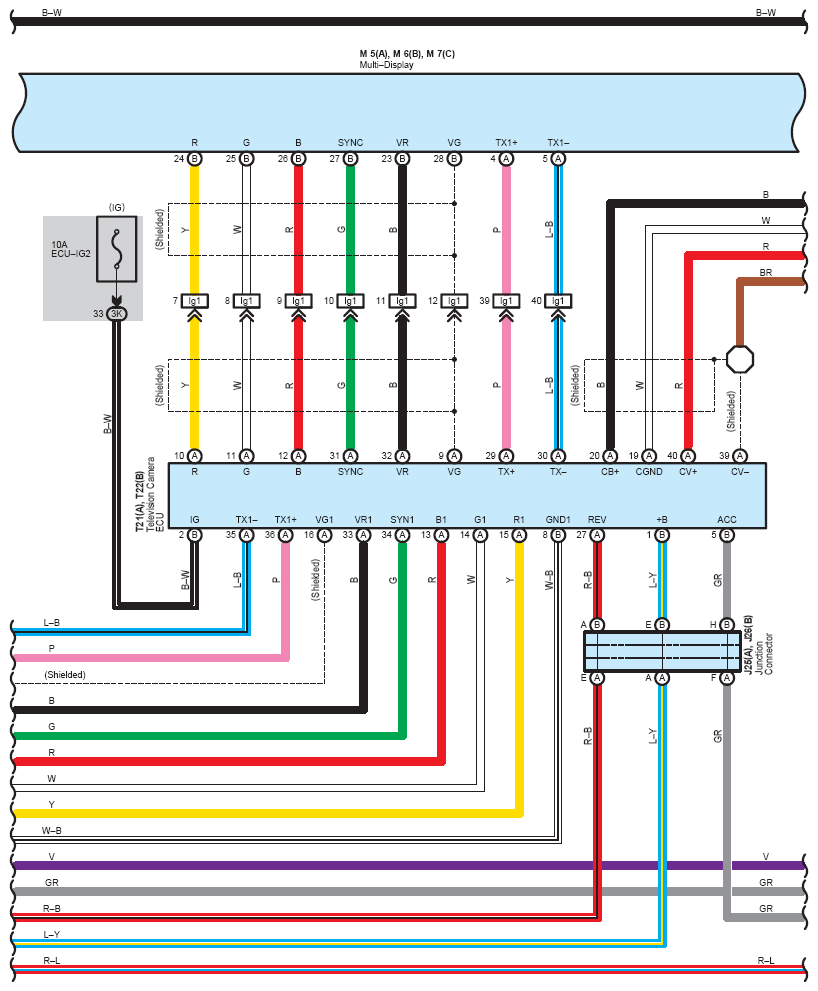

Fig 2: Navigation And Parking Assist System (Rear View Monitor) Wiring Diagram (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

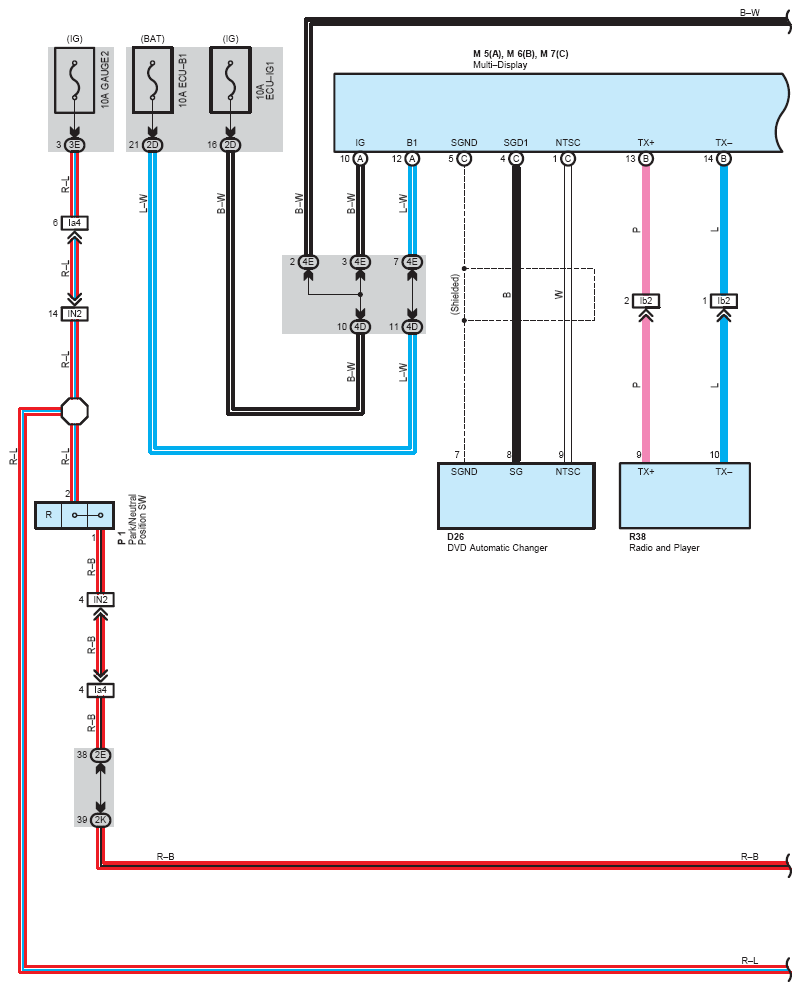

Fig 3: Navigation And Parking Assist System (Rear View Monitor) Wiring Diagram (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

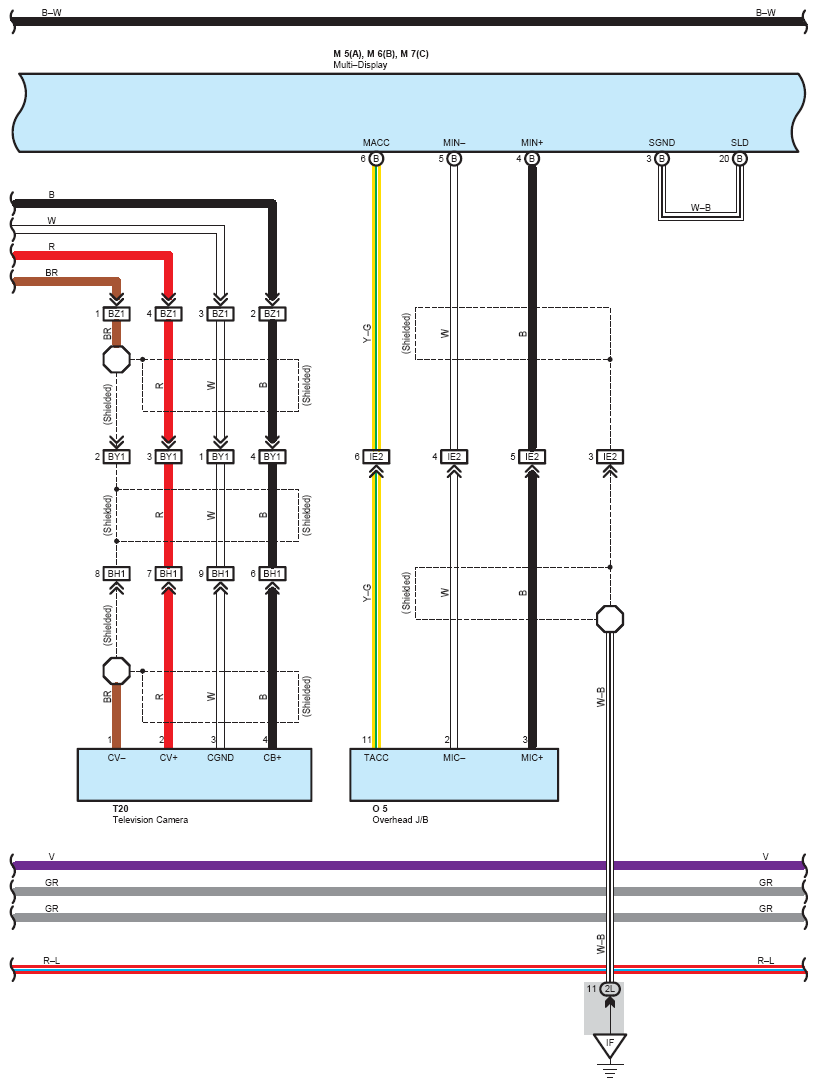

Fig 4: Navigation And Parking Assist System (Rear View Monitor) Wiring Diagram (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

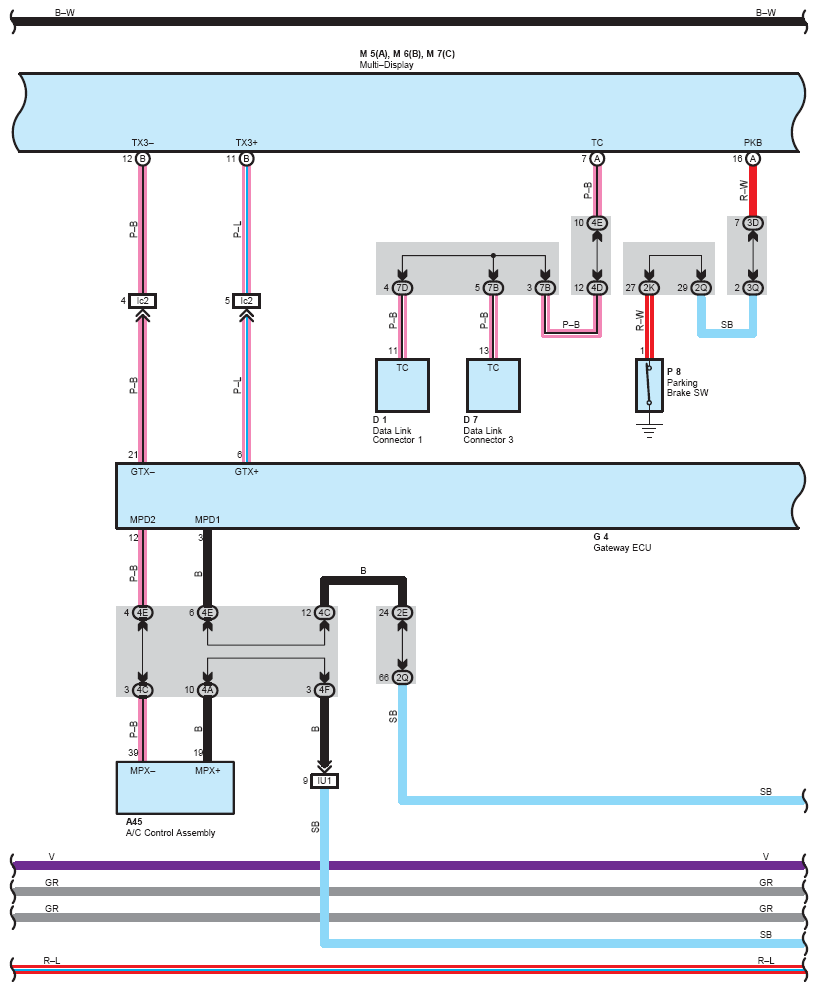

Fig 5: Navigation And Parking Assist System (Rear View Monitor) Wiring Diagram (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

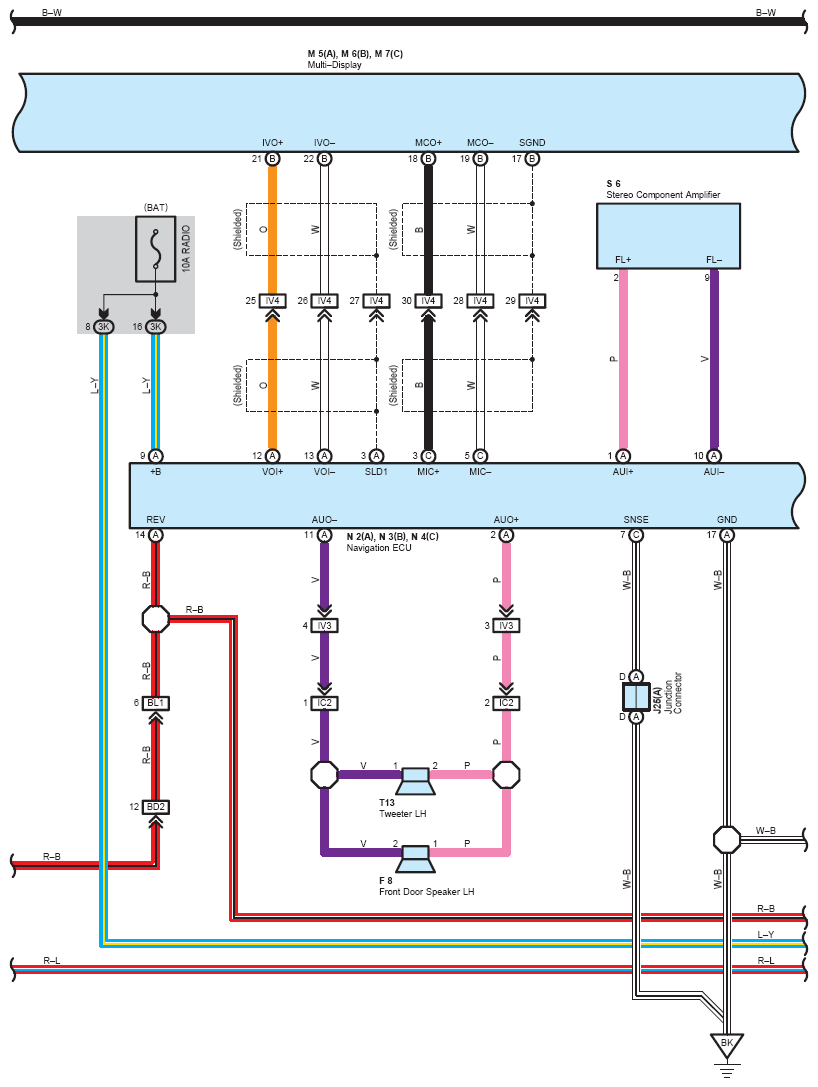

Fig 6: Navigation And Parking Assist System (Rear View Monitor) Wiring Diagram (6 Of 8)

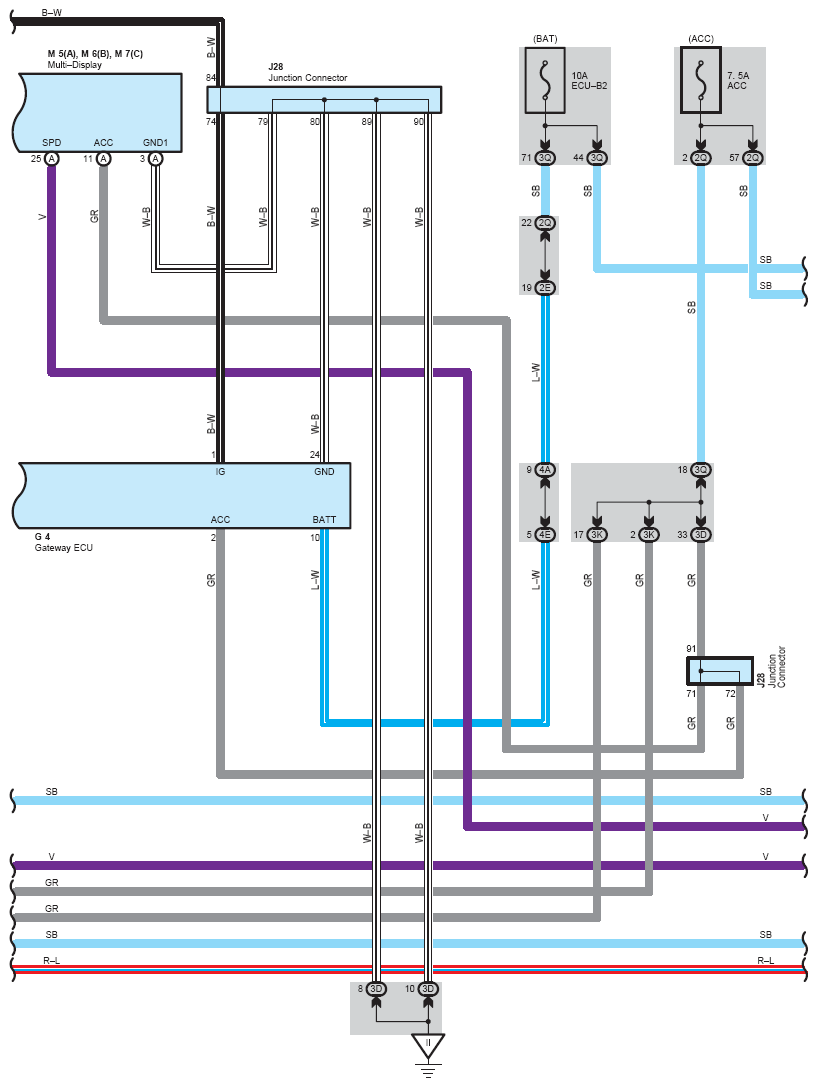

Fig 7: Navigation And Parking Assist System (Rear View Monitor) Wiring Diagram (7 Of 8)

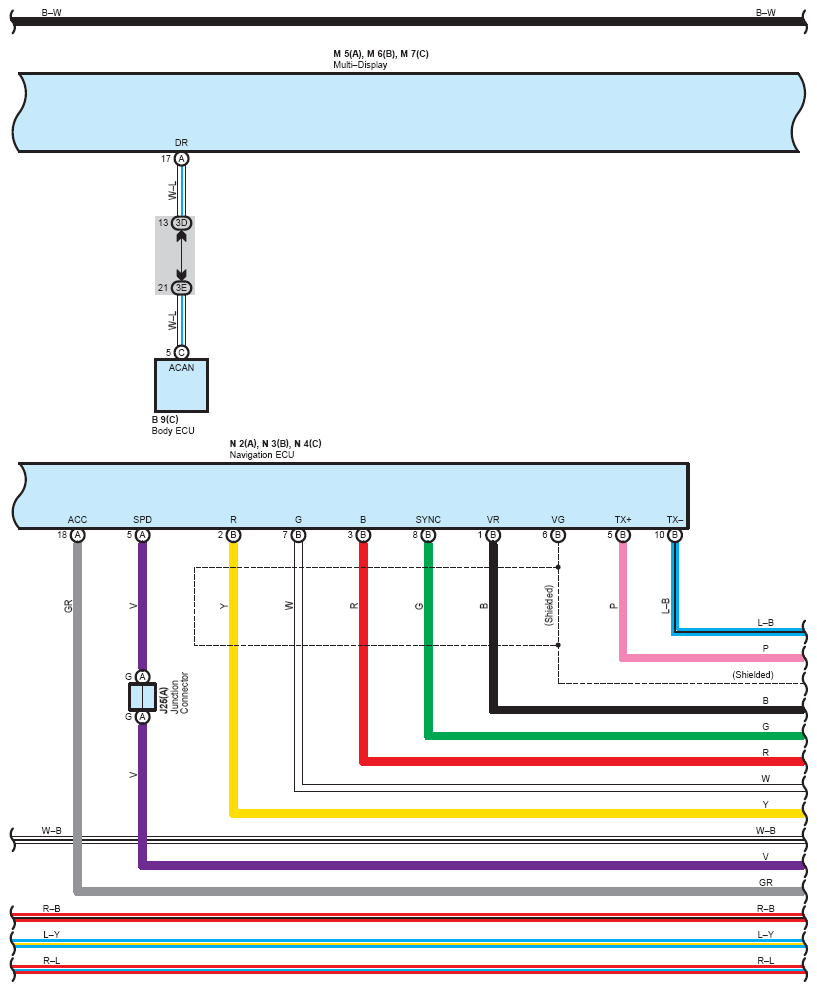

Fig 8: Navigation And Parking Assist System (Rear View Monitor) Wiring Diagram (8 Of 8)
