Diagnostic Trouble Code Chart

DIAGNOSTIC TROUBLE CODES (DTC) LIST

DTC Description
DTC B1242  WIRELESS DOOR LOCK TUNER CIRCUIT MALFUNCTION

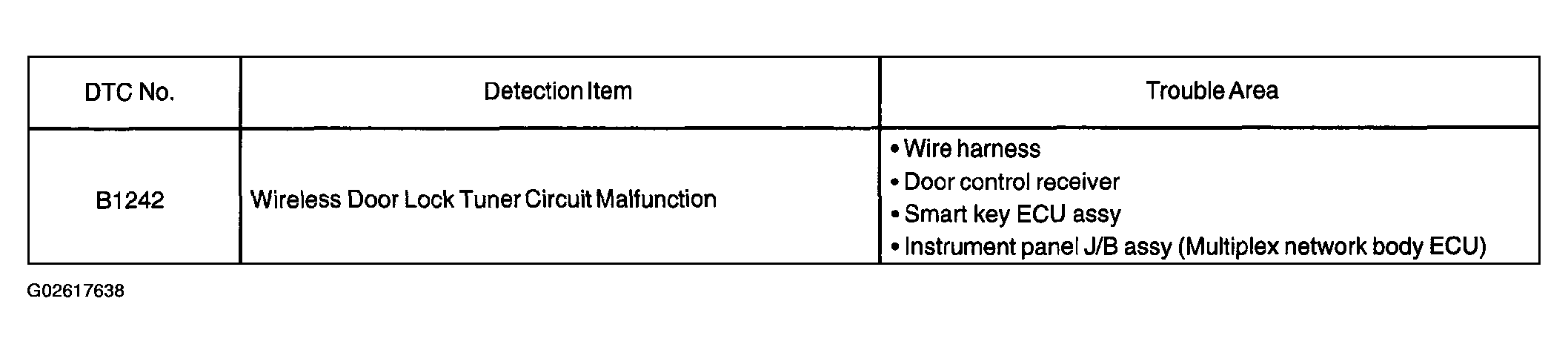

Fig 1: Diagnostic Trouble Code Chart
G02617638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
