OEM General Information: Preparation: Lubrication: Preparation

SST

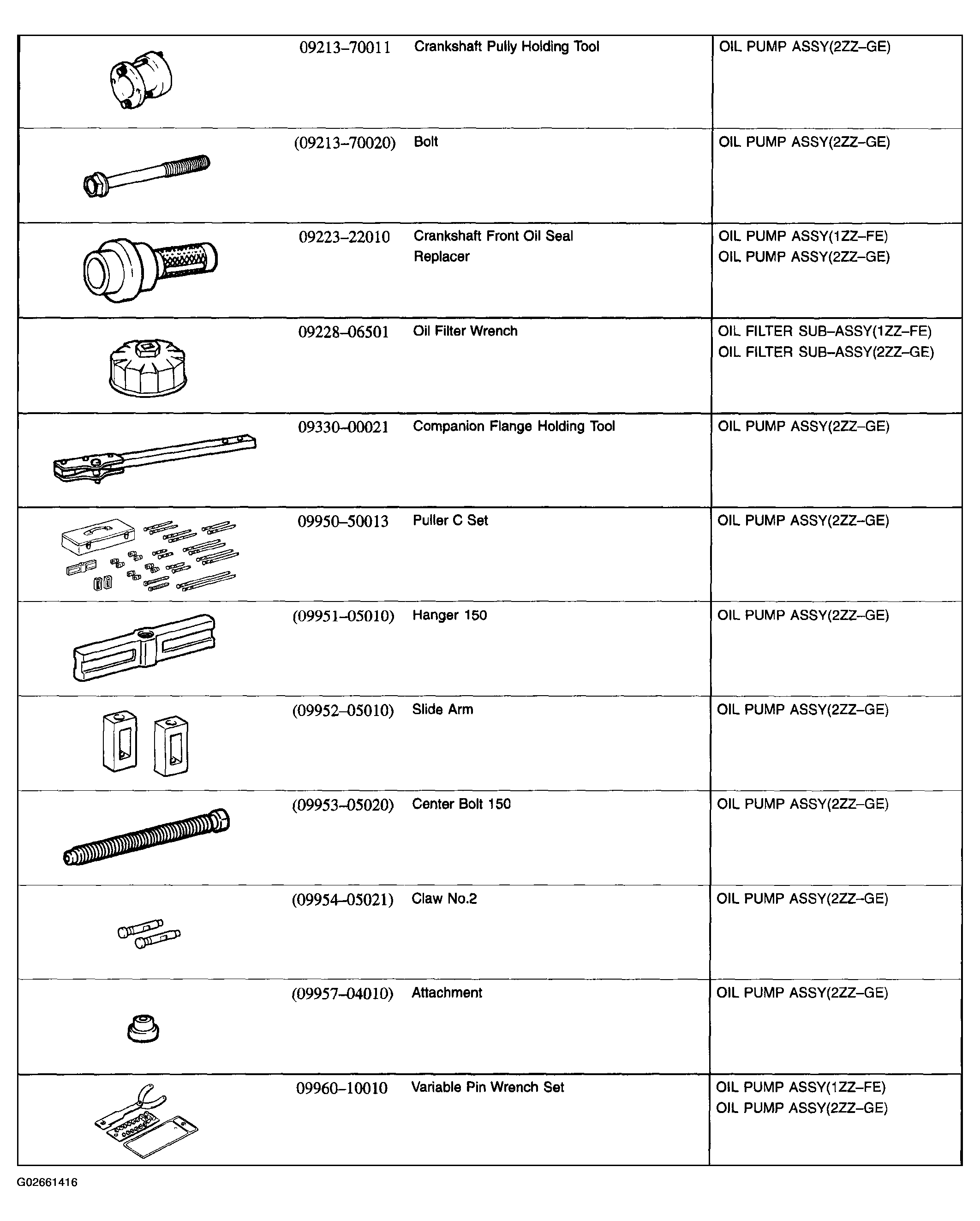

Fig 1: Special Service Tools Description Chart (Lubrication) (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

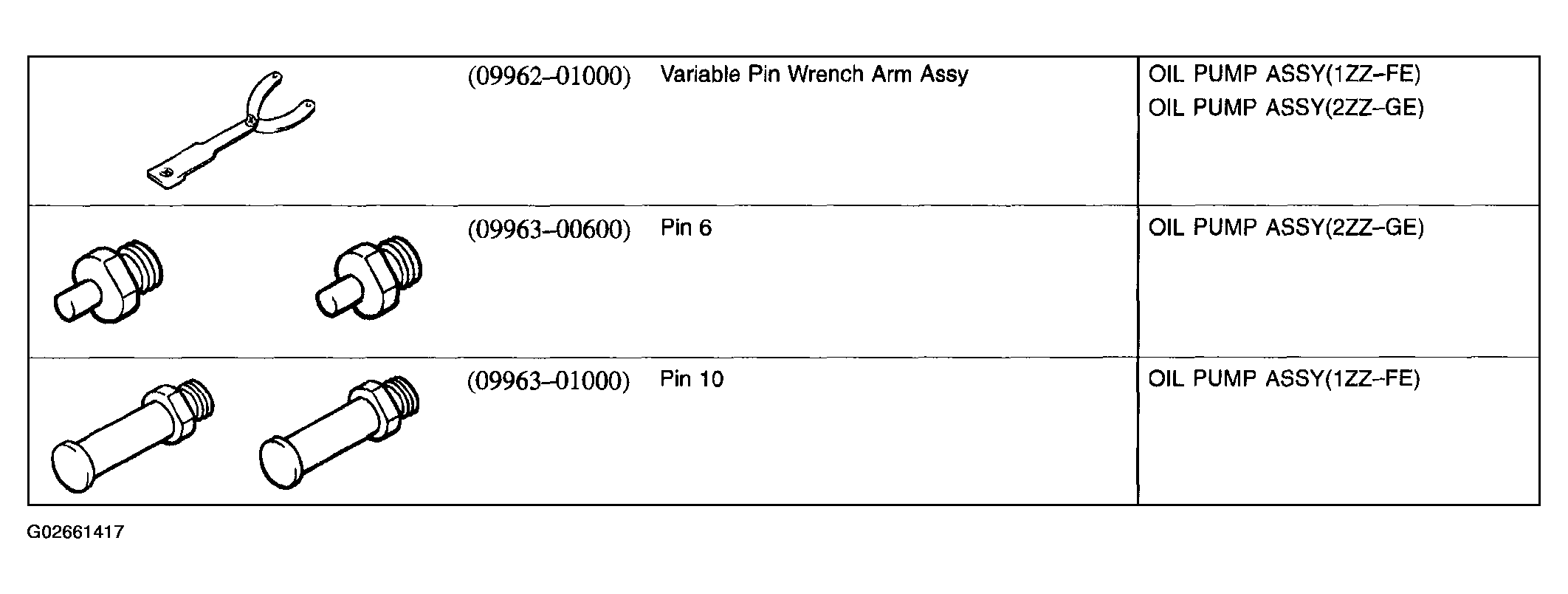

Fig 2: Special Service Tools Description Chart (Lubrication) (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

EQUIPMENT DETAILS

Feeler gauge
Precision straight edge
Radiator cup tester
Torque wrench
Vernier calipers
wooden block

SSM

SPECIAL SERVICE MATERIALS DETAILS

08826-00080

Seal Packing Black or equivalent (FIPG)

OIL PUMP ASSY(1ZZ-FE) OIL PUMP ASSY(2ZZ-GE)

Lubricant

1ZZ-FE:

LUBRICANT CLASSIFICATION (1ZZ-FE)

Item	Capacity	Classification
Oil grade	-	API grade SL Energy-Conserving or ILSAC, multi-grade engine oil
Drain and refill w/ oil filter change w/o oil filter change	3.7 liters (3.9 US qts, 3.3 lmp. qts) 3.5 liters (3.7 US qts, 3.1 lmp. qts)	-
Dry fill	4.2 liters (4.4 US qts, 3.7 lmp. qts)	-

2ZZ-GE:

LUBRICANT CLASSIFICATION (2ZZ-GE)

Item	Capacity	Classification
Oil grade	-	API grade SL Energy-Conserving or ILSAC, multi-grade engine oil
Drain and refill w/ oil filter change w/o oil filter change	4.4 liters (4.7 US qts, 3.9 lmp. qts) 4.2 liters (4.4 US qts, 3.7 lmp. qts)	-
Dry fill	4.8 liters (5.1 US qts, 4.2 lmp. qts)	-
