Manual Transmission/Transaxle: Preparation

SST

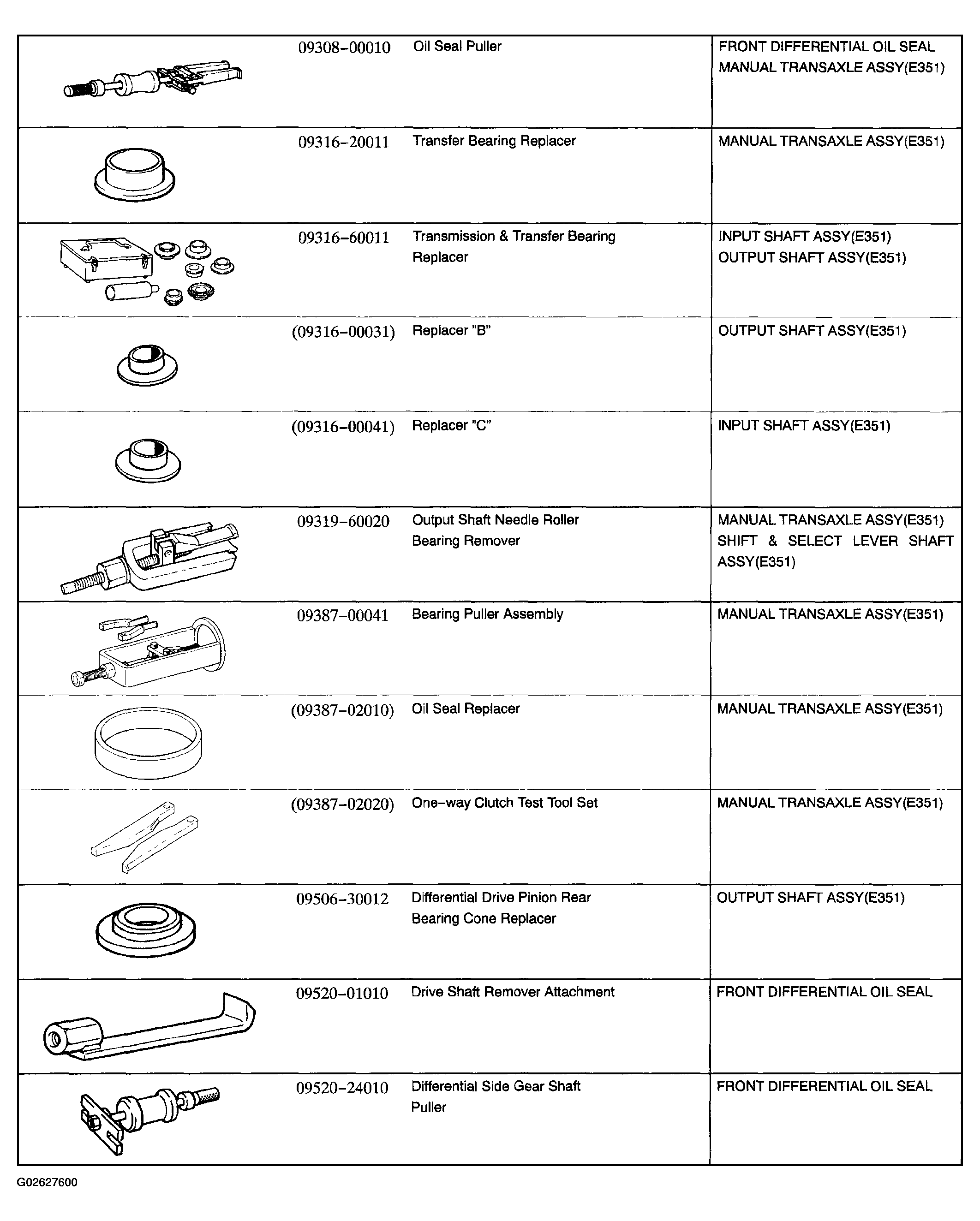

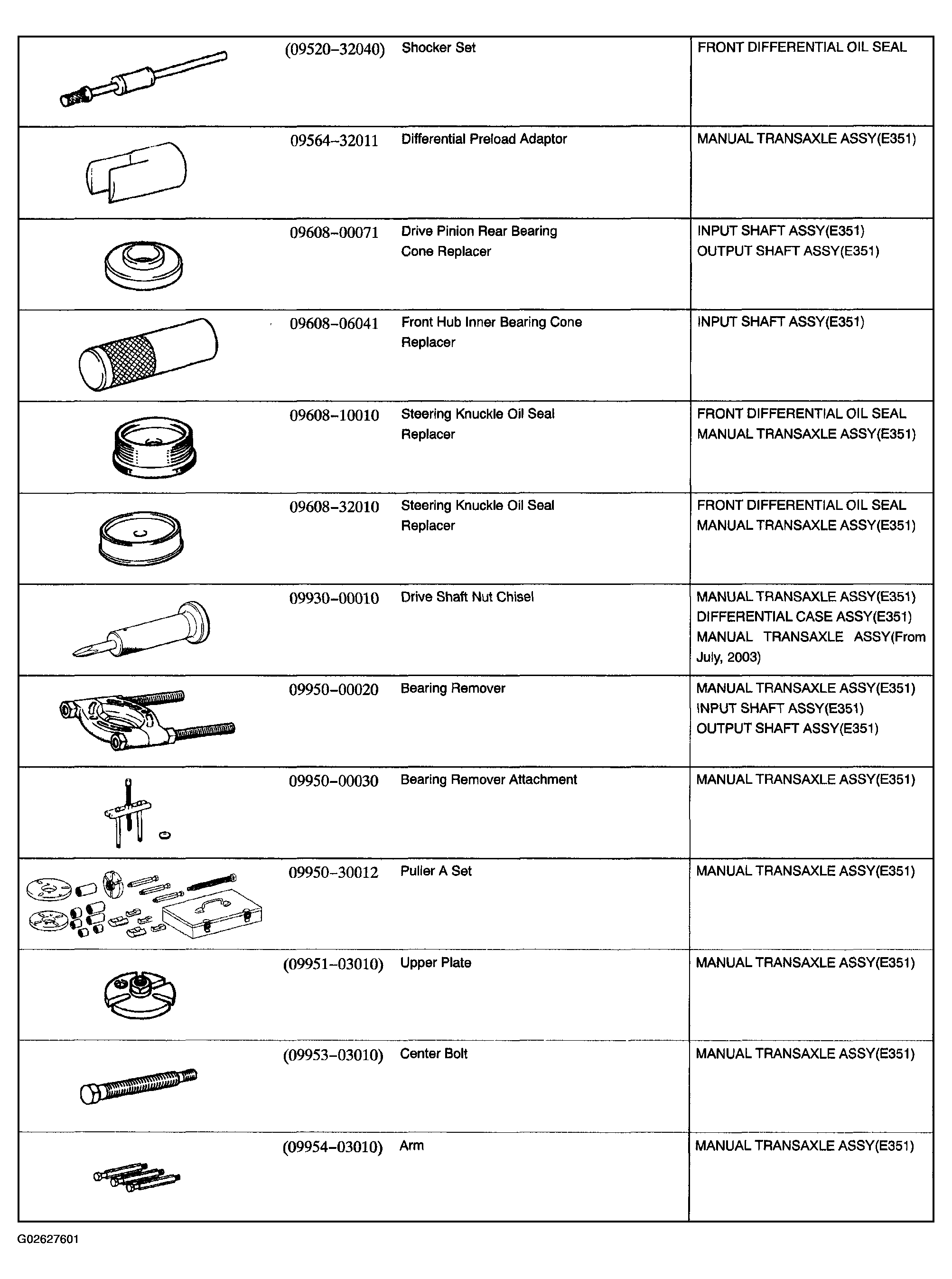

Fig 1: Manual Transmission/Transaxle Special Tool Description Chart (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

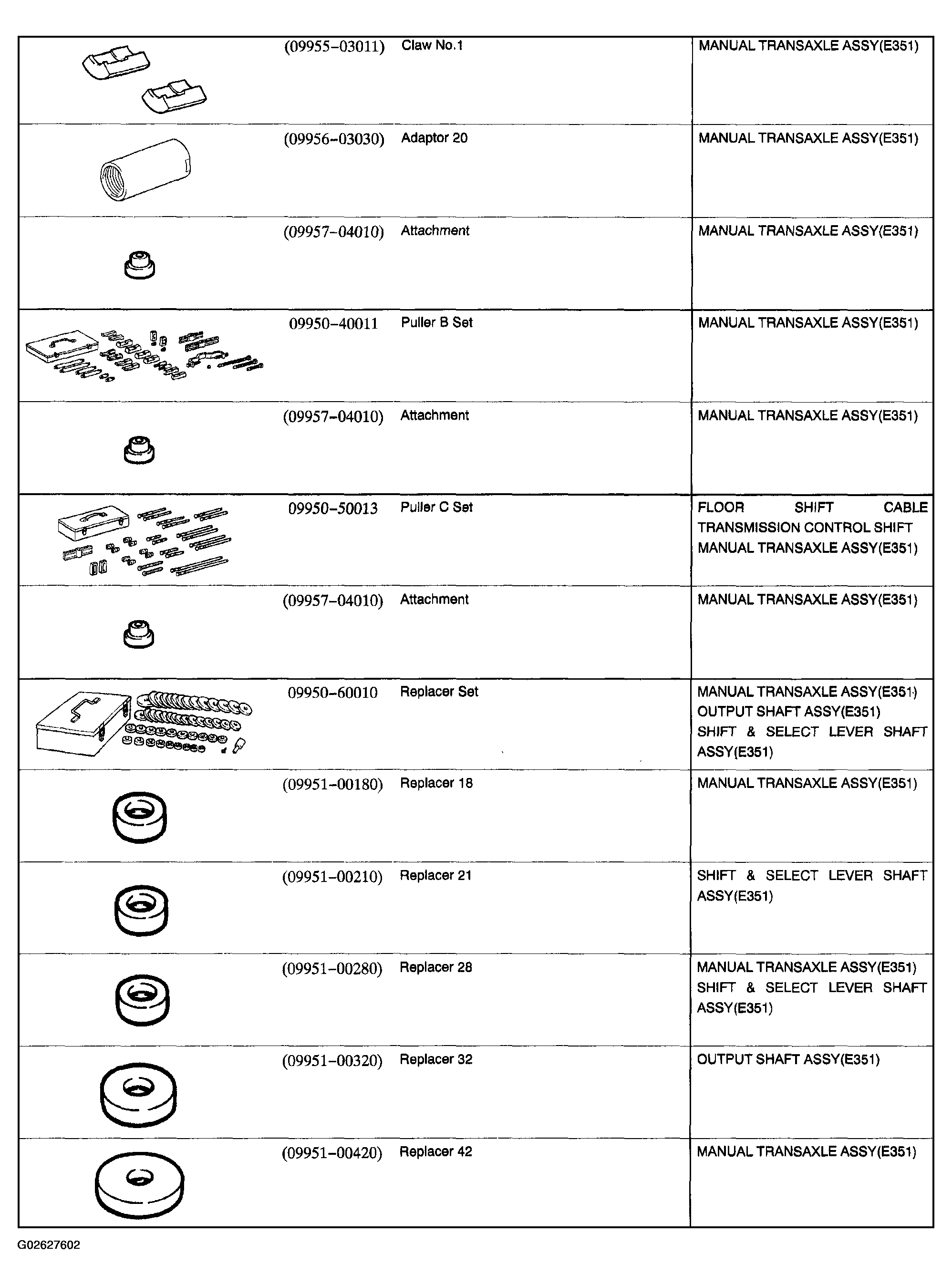

Fig 2: Manual Transmission/Transaxle Special Tool Description Chart (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

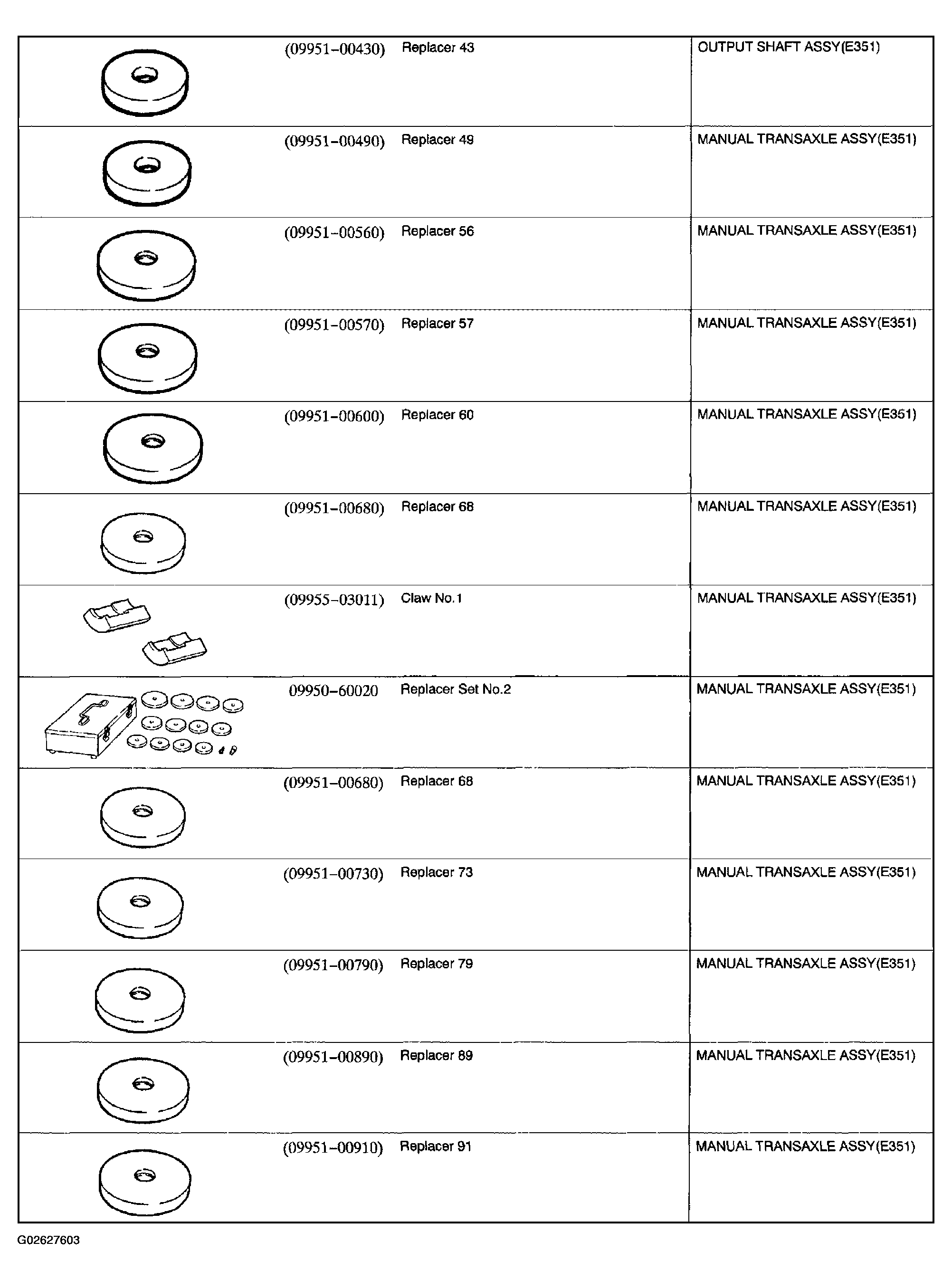

Fig 3: Manual Transmission/Transaxle Special Tool Description Chart (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Manual Transmission/Transaxle Special Tool Description Chart (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

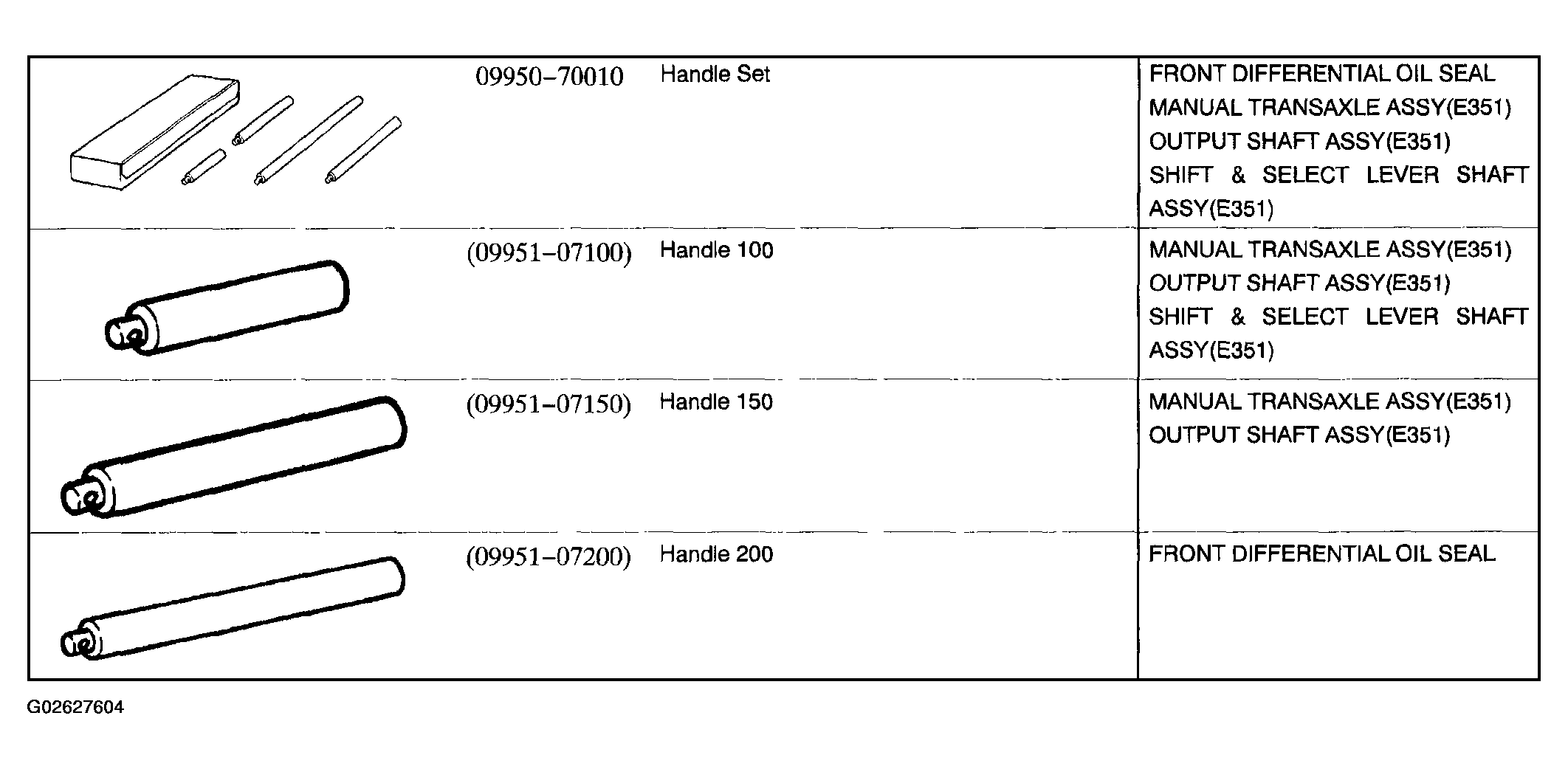

Fig 5: Manual Transmission/Transaxle Special Tool Description Chart (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

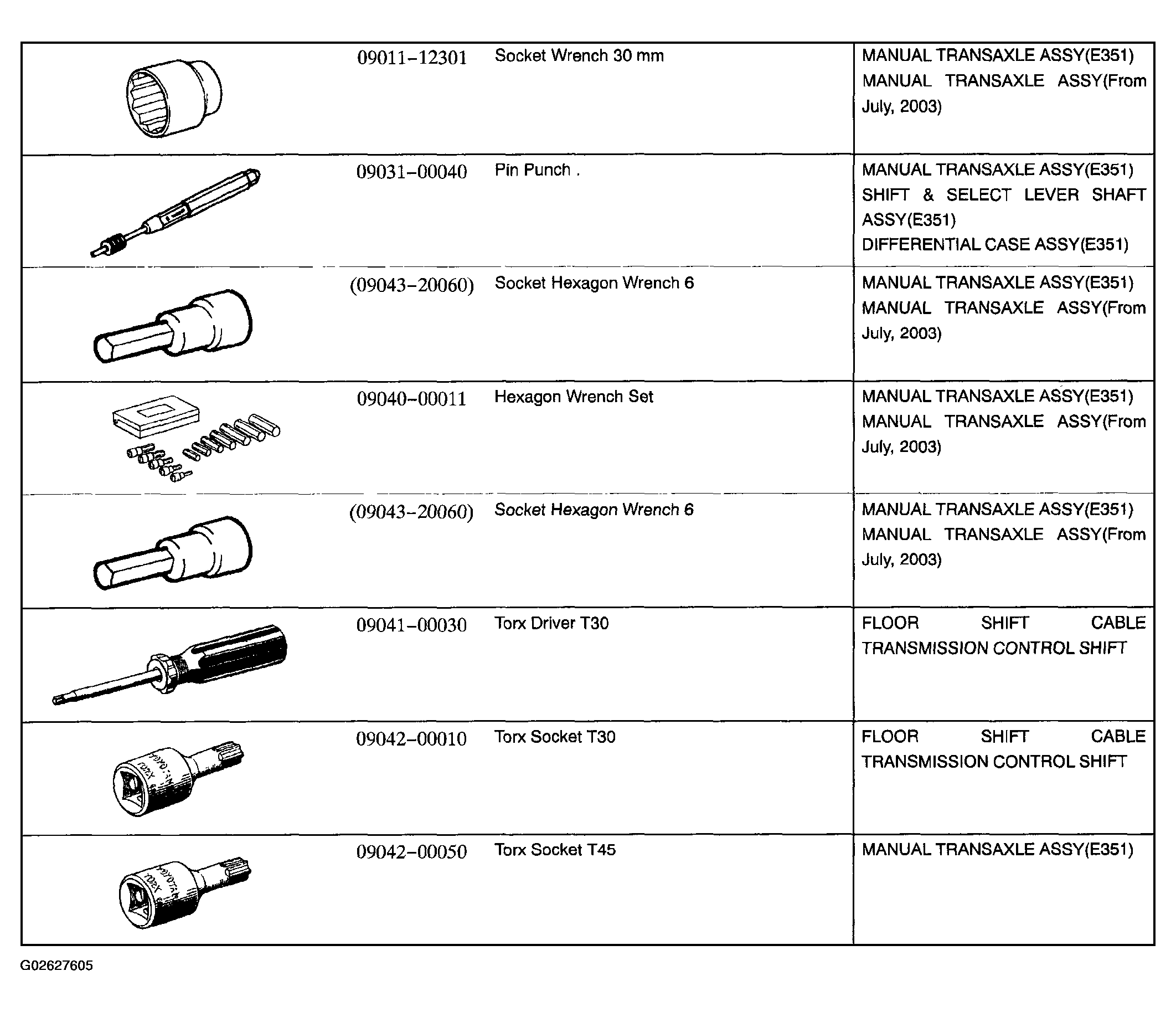

Fig 6: Manual Transmission/Transaxle Recommended Tools Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Manual Transmission/Transaxle Recommended Tools Chart (2 Of 2)

Torx is a registered trademark of Textron Inc.

Equipment

MANUAL TRANSMISSION/TRANSAXLE EQUIPMENT DESCRIPTION

Dial indicator with magnetic base
Torque wrench
Slide calipers
V-block
Micrometer
Dial indicator
Cylinder gauge
Feeler gauge
Precision straight edge

Lubricant

LUBRICANT SPECIFICATION

Item	Capacity	Classification
Manual transaxle oil (w/ Differential oil)	2.5 liters (2.6 US qts, 2.2 lmp. qts)	API GL-4 or GL-5 SAE 75W-90
