DTC P0101: Mass Air Flow Circuit Range / Performance: Wiring Diagram

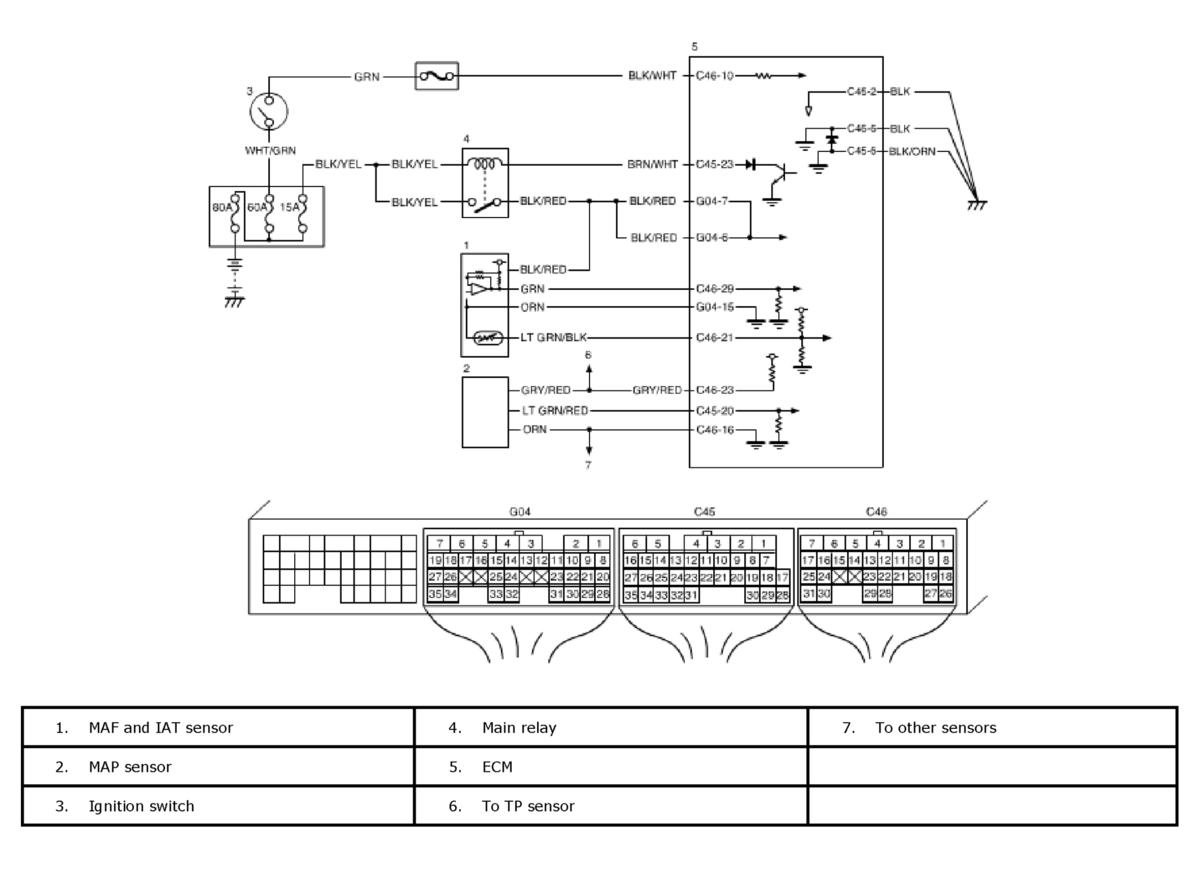

Fig 1: Mass Air Flow Circuit Range / Performance - Wiring Diagram

G04589424

Courtesy of SUZUKI OF AMERICA CORP.
