Power Door Mirror Switch Inspection

  1. Remove mirror switch from door trim.
  2. Check for continuity between terminals at each switch position.

    If check result is not as specified, replace door mirror switch.

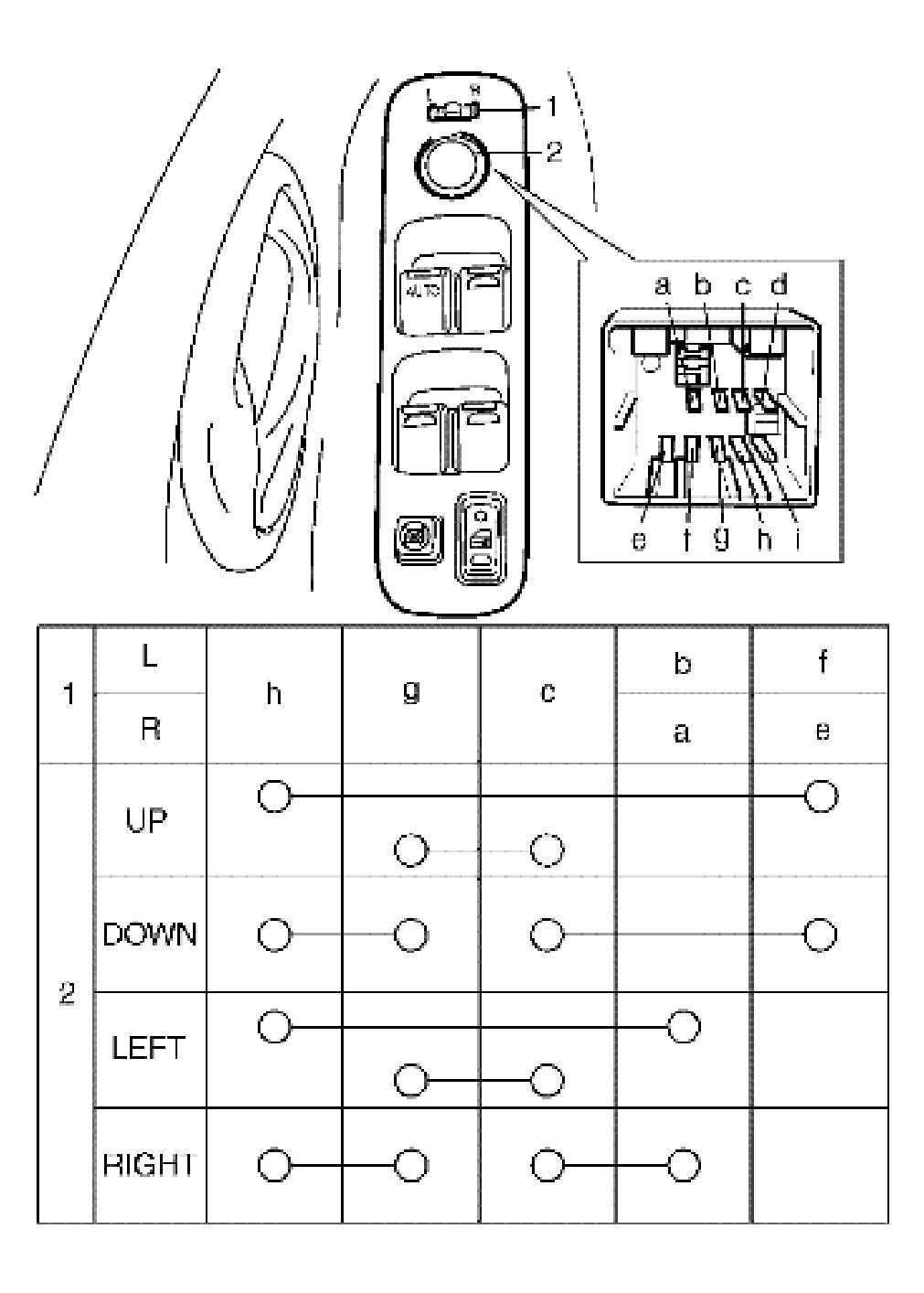

    Fig 1: Inspecting Power Door Mirror Switch
    G04591680Courtesy of SUZUKI OF AMERICA CORP.
