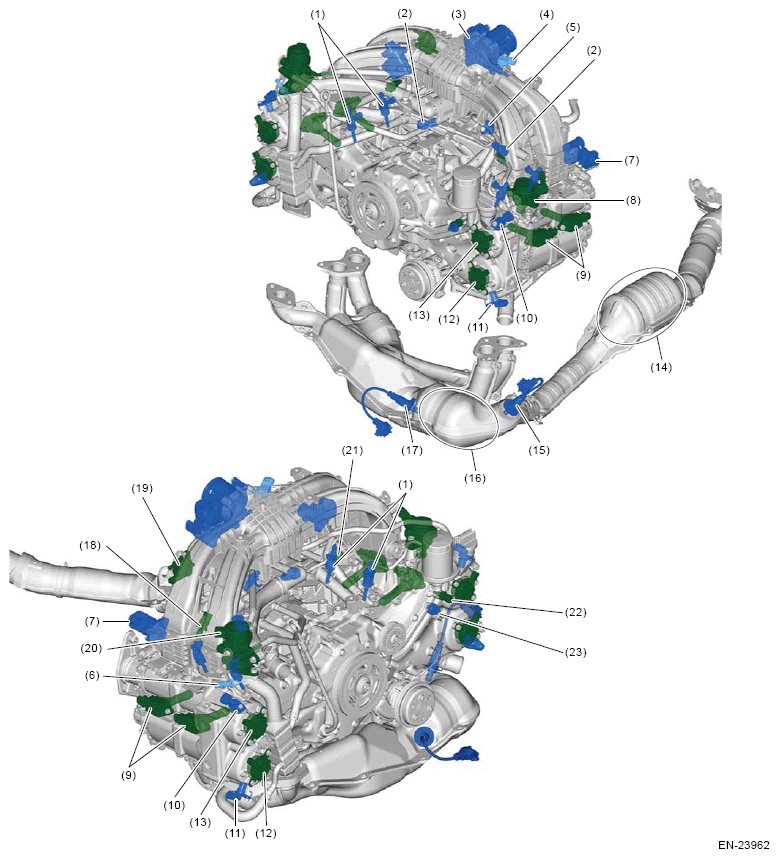

| (1) |
Fuel injector |
| (2) |
Knock sensor |
| (3) |
Throttle position sensor |
| (4) |
Manifold absolute pressure sensor |
| (5) |
Crankshaft position sensor |
| (6) |
EGR temperature sensor |
| (7) |
Tumble generator valve actuator |
| (8) |
High-pressure fuel pump |
| (9) |
Ignition coil |
| (10) |
Intake camshaft position sensor |
| (11) |
Exhaust camshaft position sensor |
| (12) |
Exhaust oil control solenoid |
| (13) |
Intake oil control solenoid |
| (14) |
Rear catalytic converter |
| (15) |
Rear oxygen sensor |
| (16) |
Front catalytic converter |
| (17) |
Front oxygen (A/F) sensor |
| (18) |
Fuel pressure sensor |
| (19) |
Purge control solenoid valve |
| (20) |
EGR control valve |
| (21) |
Engine coolant temperature sensor |
| (22) |
Engine oil temperature sensor |
| (23) |
Oil pressure sensor |
