Intake Duct No. 1

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

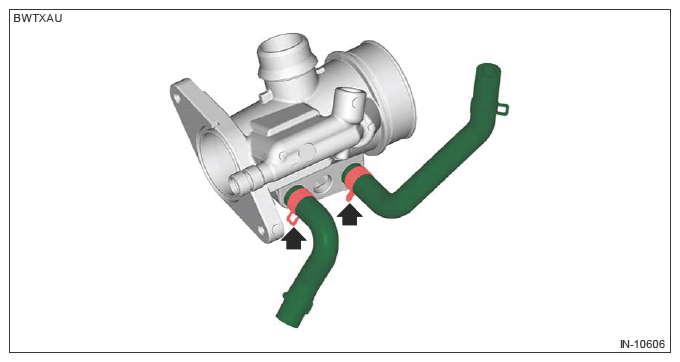

Connect the water hose to the intake duct No. 1.

Courtesy of SUBARU OF AMERICA, INC.

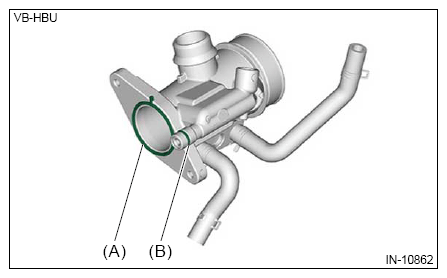

Install a new gasket (A) and O-ring (B) to the intake duct No. 1.

Courtesy of SUBARU OF AMERICA, INC.

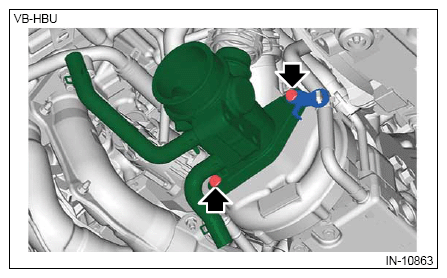

Set the intake duct No. 1, and install the bolt together with the hose stay.

NOTE:

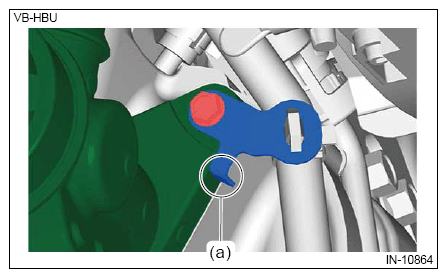

As shown in the figure, allow the rotation stopper (a) of hose stay to touch the intake duct No. 1, and tighten the bolt together with the intake duct and the hose stay.

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

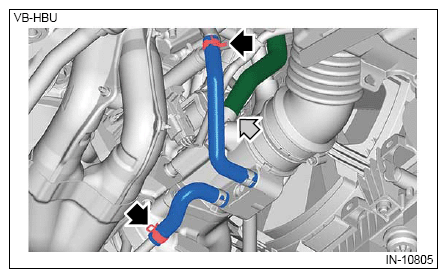

Connect the vacuum hose and the water hose.

Courtesy of SUBARU OF AMERICA, INC.

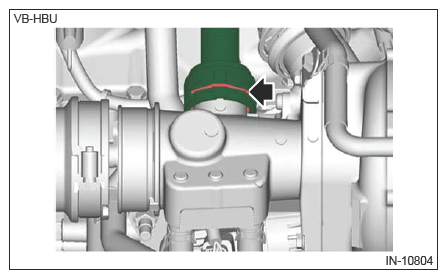

Connect the PCV pipe assembly to the intake duct No. 1, and lock it.
CAUTION:
- Make sure there are no damage or dust on connections. If necessary, clean the seal surface of the pipe.
- Confirm that the connections are secure.
NOTE:
It is possible to install with the spring locked.

Courtesy of SUBARU OF AMERICA, INC.

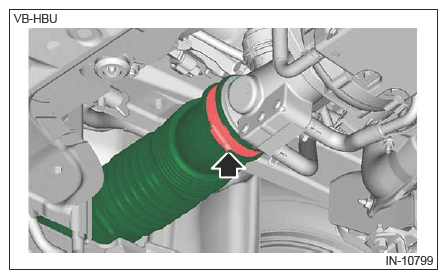

Connect the air intake boot to the intake duct No. 1.
NOTE:
Align the cutout portion of the air intake boot to the protrusion on the intake duct No. 1.

Tightening torque:

2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.
Install the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>INSTALLATION
Fill engine coolant. Ref. to COOLING (H4DOTC)>ENGINE COOLANT>REPLACEMENT>FILLING OF ENGINE COOLANT
